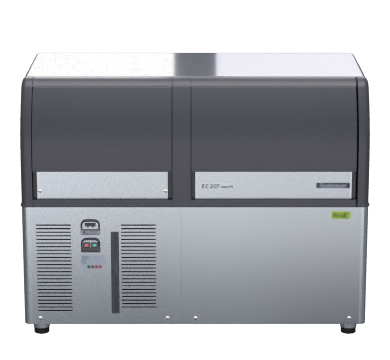

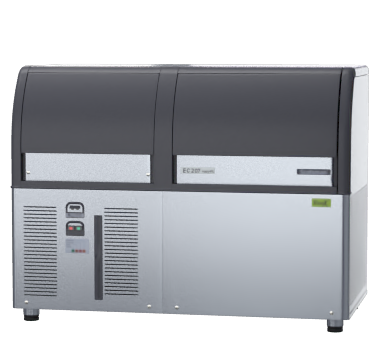

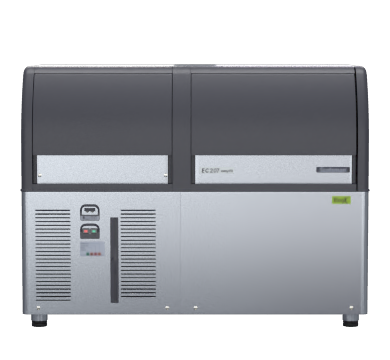

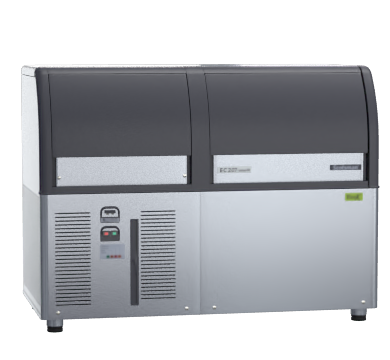

Scotsman ECM 207 AS OX - 150kg - Self Contained Gourmet Ice Maker

Description

Dimensions
W: 1250mm D: 622mm H: 809mm

Packed Weight: 97kg
Product Features
  • 150kg daily production rate
  • 50kg storage bin capacity
  • 30mm dia x H 34mm, 20g ice cubes
  • Air cooled version
  • Agion Technology resists microbe's growth and odours development to produce pure, clear and transparent ice cubes
  • EcoX hydrocarbons R290 refrigerant gas
  • XSafe - Natural Sanitation System
  • PWD-Progressive water discharge pumps excess water up to 15 meters
  • Horizontal Ice evaporator spray-system technology
  • Simple, reliable electromechanic controls
  • Built-in storage bin
  • Resistant stainless steel exterior

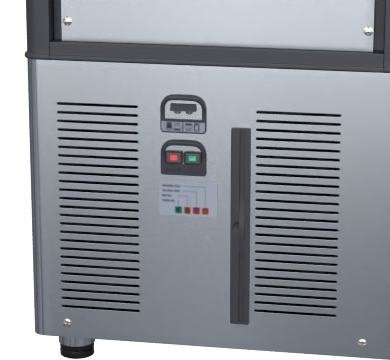

  • Easy access front ON-OFF switch
  • Routine maintenance visible alarm light on front panel
  • Ergonomically designed ice storage access with disappearing door and door closing movement dampening system
  • Front access condenser air filter, removable and washable
  • Includes removable air filter, ice scoop, water and drain hose

All Ice machines MUST be maintained to ensure high performance.

The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.

This maintains the quality of the ice shape and thickness.

This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance.

If your ice machine is not maintained, your warranty may be void.

6 Monthly Maintenance Program

  • Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler.
  • Sanitise water reservoir, distribution tubes, and bin interior.
  • Clean and flush condenser coils (air-cooled units).
  • Inspect condenser fan motor and blades.
  • Check inlet water valve, float, and filters for correct operation.
  • Verify ice thickness probe or sensor calibration.
  • Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary.
  • Test compressor amperage and general performance.
  • Inspect water pump operation and clean pump housing.
  • Check harvest cycle operation (heater or hot gas valve).
  • Inspect electrical connections, relays, and contactors.
  • Replace inline water filter cartridge.
Product form

ScotsmanSKU: ECM 207 AS OX In Stock

$6,363.26 $8,599.00

Excl. GST Incl. GST
Prices exclude GST
Free pickup in our shop(s)
    • Delivery Australia-wide, Tracking Included

    Guaranteed Safe Checkout

    • Visa
    • Mastercard
    • American Express
    • PayPal
    • Apple Pay
    • Shop Pay
    • Google Pay

    From $11.54/day

    Apply Now

    Specifications
    Brand Scotsman
    MPN ECM 207 AS OX
    Product Dimensions 1250(W) x 809(H) x 622(D)mm
    Warranty 3 year parts and labour
