Description

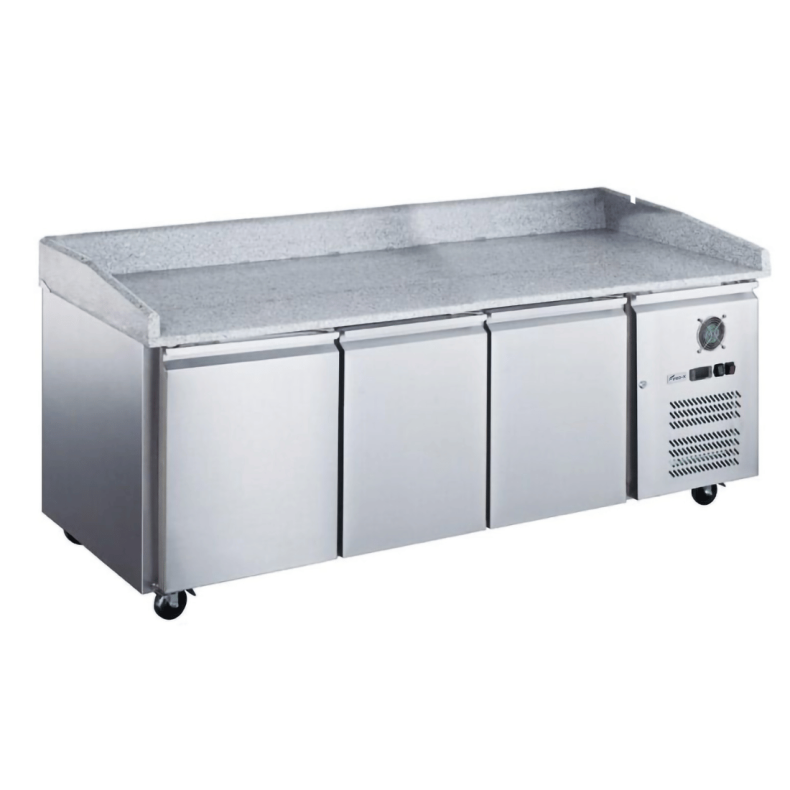

The FED-X XPZ3600TN is a three-door pizza prep counter fridge purpose-built for high-volume pizza and flatbread kitchens. It features a raised granite worktop for rolling and topping dough, 448 L of refrigerated storage across three full-length compartments, and R290 natural refrigerant — all on heavy-duty castors for flexible placement.
Why operators choose the XPZ3600TN
-
Granite raised-rail worktop — durable, hygienic stone surface ready for dough preparation with a raised back rail to contain toppings and tools.
-
448 L net capacity across 3 doors — generous refrigerated storage keeps ingredients at temperature throughout a full service period.
-
R290 natural refrigerant — low global-warming-potential refrigerant aligns with AU sustainability direction and delivers efficient cooling in up to 43°C ambient.
-

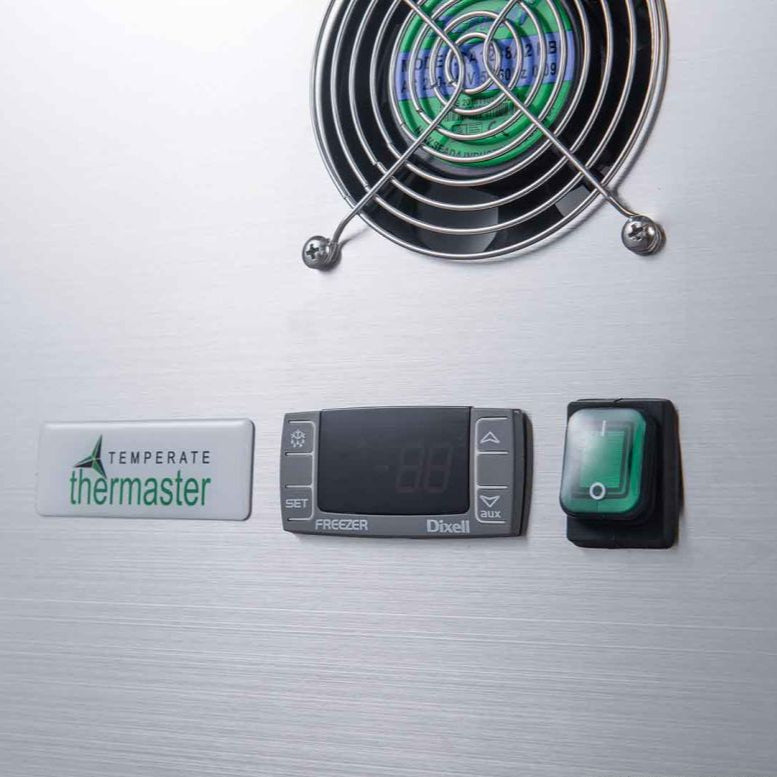

Fan-forced cooling with Cubigel compressor — consistent temperature recovery after repeated door openings; Dixell digital controller for precise setpoint management.
-

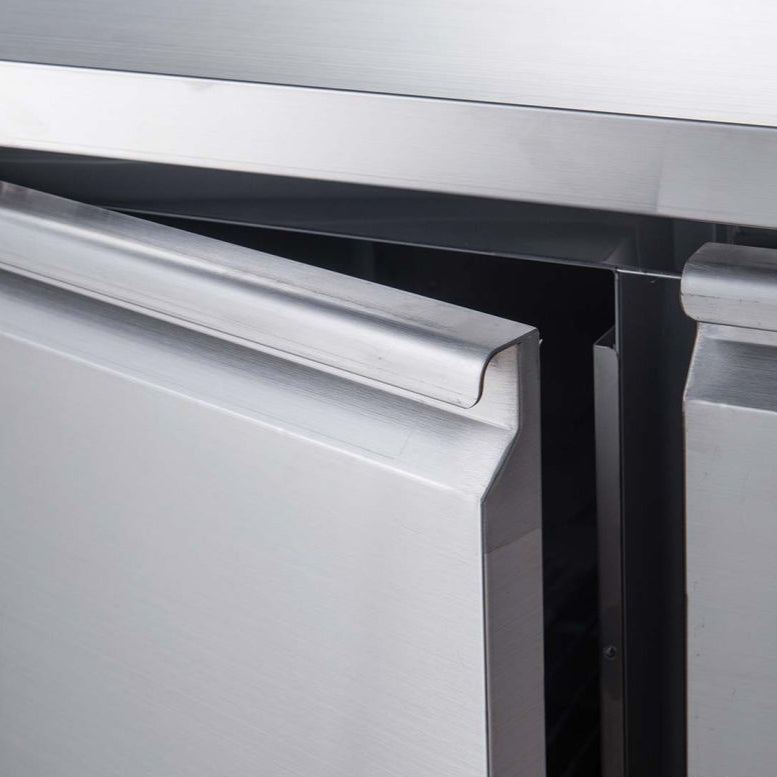

Tropicalised construction — rated to 43°C ambient at 60% RH; self-closing doors with heavy-duty magnetic seals and Ebm-papst evaporator and condenser fans for long service life.
Specifications
| Brand |
FED-X |
| Model / MPN |
XPZ3600TN |
| Type |
Pizza Prep Counter Fridge |
| Net Capacity |
448 L |
| Gross Volume |
390 L |
| Doors |
3 hinged doors |
| Temperature Range |
2 to 8°C |
| Refrigerant |
R290 |
| Cooling System |
Fan-forced |
| Compressor |
Cubigel |
| Controller |
Dixell digital |
| Ambient Temperature |
43°C, 60% RH |
| Power |
240V; 320W; 10A |
| Power Type |
Electric |
| Internal Dimensions |
1459 x 680 x 564mm |
| Product Dimensions |
2020(W) x 800(D) x 990(H)mm |
| Packed Dimensions |
2050(W) x 830(D) x 1050(H)mm |
| Net Weight |
332 kg |
| External Construction |
Stainless Steel |
| Country of Manufacture |
China |
| Warranty |
2 Years Parts & Labour + 2 Years Parts Only (with registration within 14 days of invoice) |
Venue suitability: Ideal for pizza restaurants, Italian kitchens, flatbread and wrap bars, and any high-throughput food-service venue that requires chilled ingredient storage with a working prep surface. The 2020 mm width accommodates two operators side by side during a busy service. Explore the full Pizza Prep Fridges range or shop all FED-X refrigeration.

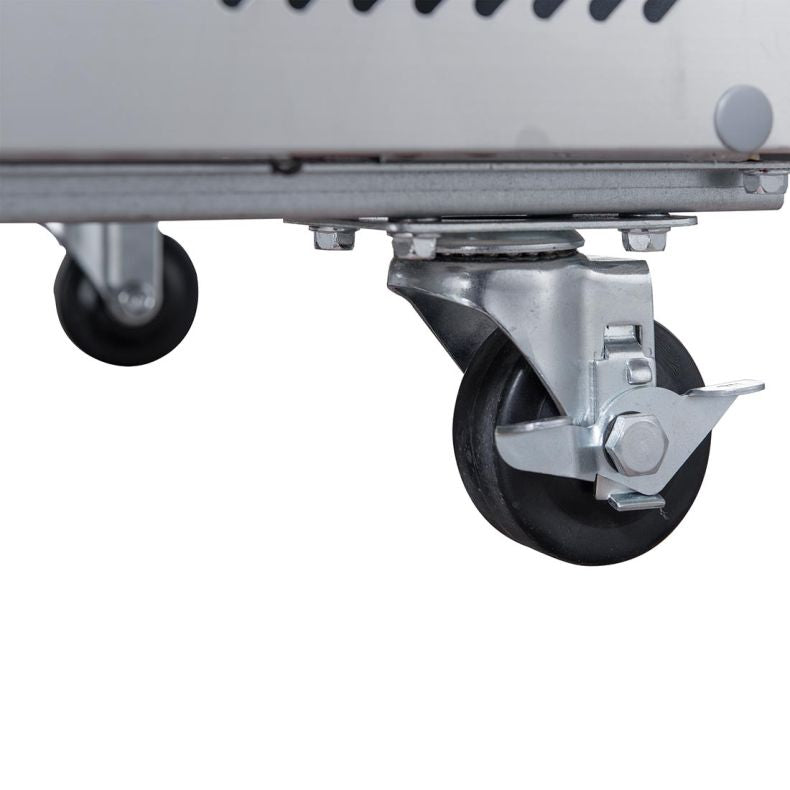

Installation & delivery: Arrives fully assembled on heavy-duty castors — position, level, and connect to a standard 240V 10A outlet. No gas connection required. Dispatched Australia-wide.
Frequently asked questions
What is the net storage capacity of the XPZ3600TN?
The XPZ3600TN has a net volume of 448 L across its three-door compartment, with a gross volume of 390 L. The difference reflects internal wall and shelf structure.
What refrigerant does the XPZ3600TN use?
It uses R290 (propane), a natural refrigerant with a very low global-warming potential (GWP of 3). R290 is widely adopted in commercial refrigeration in Australia and requires no special licence to operate.
What is the operating temperature range?
The XPZ3600TN maintains a temperature range of 2 to 8°C, suitable for storing dough, cheese, vegetables, and other perishable pizza toppings in compliance with AU food-safety guidelines.
Can the XPZ3600TN operate in a hot kitchen environment?
Yes. The unit is tropicalised for Australian conditions and rated to a maximum ambient temperature of 43°C at 60% relative humidity — well above the temperature of most commercial kitchen environments.
What warranty does the XPZ3600TN carry?
The XPZ3600TN carries a 4-year warranty: 2 years parts and labour, plus 2 years parts only. Registration must be completed within 14 days of invoice to activate the full warranty term.
SKU: XPZ3600TN
In Stock
