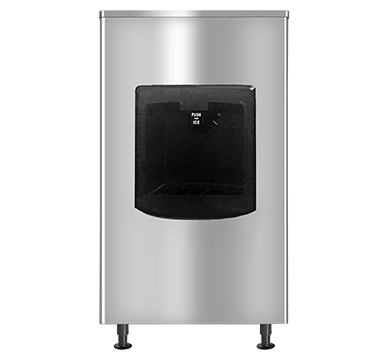

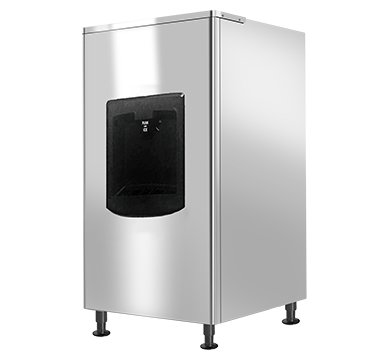

Moffat ID 100 - 100kg - Ice Dispenser

Description

Dimensions
W: 760mm D: 855mm H: 1360mm

Packed Weight: 95kg
Product Features
  • Dispensing Units Only
  • 100kg storage bin capacity
  • 5kg / min output speed
  • Suitable for any ice maker with standard square cube size W 22mm x D 22mm x H 22mm
  • Hands-free sensor activates ice dispensing mechanism
  • 304 grade stainless steel construction
  • Adjustable feet
  • Compatible with Scotsman NW 457, NW 608, NW 1008, NXW 457, NXW 607 and NXW 1007 ice maker head units

All Ice machines MUST be maintained to ensure high performance.

The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.

This maintains the quality of the ice shape and thickness.

This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance.

If your ice machine is not maintained, your warranty may be void.

6 Monthly Maintenance Program

  • Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler.
  • Sanitise water reservoir, distribution tubes, and bin interior.
  • Clean and flush condenser coils (air-cooled units).
  • Inspect condenser fan motor and blades.
  • Check inlet water valve, float, and filters for correct operation.
  • Verify ice thickness probe or sensor calibration.
  • Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary.
  • Test compressor amperage and general performance.
  • Inspect water pump operation and clean pump housing.
  • Check harvest cycle operation (heater or hot gas valve).
  • Inspect electrical connections, relays, and contactors.
  • Replace inline water filter cartridge.
Product form

ScotsmanSKU: ID 100 In Stock

$6,060.60 $8,190.00

Excl. GST Incl. GST
Prices exclude GST
Free pickup in our shop(s)
    • Delivery Australia-wide, Tracking Included

    Guaranteed Safe Checkout

    • Visa
    • Mastercard
    • American Express
    • PayPal
    • Apple Pay
    • Shop Pay
    • Google Pay

    From $10.99/day

    Apply Now

    Specifications
    Brand Scotsman
    MPN ID 100
    Product Dimensions 760(W) x 1360(H) x 855(D)mm
    Warranty 2 year parts and labour

    Product Documents

    Description

    Dimensions
    W: 760mm D: 855mm H: 1360mm

    Packed Weight: 95kg
    Product Features
    • Dispensing Units Only
    • 100kg storage bin capacity
    • 5kg / min output speed
    • Suitable for any ice maker with standard square cube size W 22mm x D 22mm x H 22mm
    • Hands-free sensor activates ice dispensing mechanism
    • 304 grade stainless steel construction
    • Adjustable feet
    • Compatible with Scotsman NW 457, NW 608, NW 1008, NXW 457, NXW 607 and NXW 1007 ice maker head units

    All Ice machines MUST be maintained to ensure high performance.

    The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.

    This maintains the quality of the ice shape and thickness.

    This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance.

    If your ice machine is not maintained, your warranty may be void.

    6 Monthly Maintenance Program

    • Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler.
    • Sanitise water reservoir, distribution tubes, and bin interior.
    • Clean and flush condenser coils (air-cooled units).
    • Inspect condenser fan motor and blades.
    • Check inlet water valve, float, and filters for correct operation.
    • Verify ice thickness probe or sensor calibration.
    • Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary.
    • Test compressor amperage and general performance.
    • Inspect water pump operation and clean pump housing.
    • Check harvest cycle operation (heater or hot gas valve).
    • Inspect electrical connections, relays, and contactors.
    • Replace inline water filter cartridge.
