Scotsman MF 36 AS OX - 193kg - XSafe Modular Flake Ice Maker

Description

Dimensions
W: 563mm D: 536mm H: 531mm

Packed Weight: 56kg
Product Features
  • Head only Ice maker
  • 193kg daily production rate
  • Residual water content 25%
  • Air cooled version
  • Agion Technology resists microbe's growth and odours development to produce pure, clear and transparent ice cubes
  • R134a refrigerant gas
  • XSafe - Natural Sanitation System
  • Stainless steel auger and freezing cylinder (evaporator)
  • Hermetic compressor
  • Double protection - electronic rotation sensor & drive coupling
  • Low-water sensor protection
  • Simple, reliable electromechanic control
  • Stainless steel finish, top cover in PS plastic with removable panels
  • External indicator lights to show operation status and maintenance
  • Requires storage bin model NB 193, NB 393, NB 530, CBT 22 EFSD (required cover when used with NB 193), CBT 30 EFSD (required cover when used with NB 393/ NB 530)
  • Includes removable air filter, water & drain hose

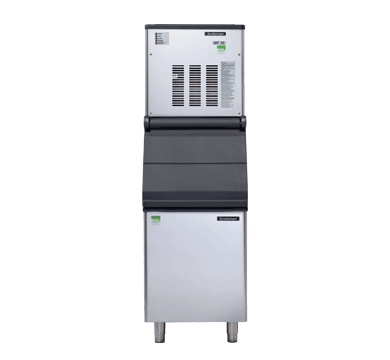

  • *Image shown Ice maker with optional storage bin

All Ice machines MUST be maintained to ensure high performance.

The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.

This maintains the quality of the ice shape and thickness.

This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance.

If your ice machine is not maintained, your warranty may be void.

6 Monthly Maintenance Program

  • Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler.
  • Sanitise water reservoir, distribution tubes, and bin interior.
  • Clean and flush condenser coils (air-cooled units).
  • Inspect condenser fan motor and blades.
  • Check inlet water valve, float, and filters for correct operation.
  • Verify ice thickness probe or sensor calibration.
  • Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary.
  • Test compressor amperage and general performance.
  • Inspect water pump operation and clean pump housing.
  • Check harvest cycle operation (heater or hot gas valve).
  • Inspect electrical connections, relays, and contactors.
  • Replace inline water filter cartridge.
Product form

ScotsmanSKU: MF 36 AS OX Out of Stock

$5,730.00+GST $7,743.00

    • Delivery Australia-wide, Tracking Included

    Guaranteed Safe Checkout

    • Visa
    • Mastercard
    • American Express
    • PayPal
    • Apple Pay
    • Shop Pay
    • Google Pay

    From $10.39/day

    Apply Now

    Specifications
    Brand Scotsman
    Product Dimensions 563(W) x 531(H) x 531(D)mm
    Warranty 2 year parts and labour

    Description

    Dimensions
    W: 563mm D: 536mm H: 531mm

    Packed Weight: 56kg
    Product Features
    • Head only Ice maker
    • 193kg daily production rate
    • Residual water content 25%
    • Air cooled version
    • Agion Technology resists microbe's growth and odours development to produce pure, clear and transparent ice cubes
    • R134a refrigerant gas
    • XSafe - Natural Sanitation System
    • Stainless steel auger and freezing cylinder (evaporator)
    • Hermetic compressor
    • Double protection - electronic rotation sensor & drive coupling
    • Low-water sensor protection
    • Simple, reliable electromechanic control
    • Stainless steel finish, top cover in PS plastic with removable panels
    • External indicator lights to show operation status and maintenance
    • Requires storage bin model NB 193, NB 393, NB 530, CBT 22 EFSD (required cover when used with NB 193), CBT 30 EFSD (required cover when used with NB 393/ NB 530)
    • Includes removable air filter, water & drain hose
    • *Image shown Ice maker with optional storage bin

    All Ice machines MUST be maintained to ensure high performance.

    The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.

    This maintains the quality of the ice shape and thickness.

    This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance.

    If your ice machine is not maintained, your warranty may be void.

    6 Monthly Maintenance Program

    • Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler.
    • Sanitise water reservoir, distribution tubes, and bin interior.
    • Clean and flush condenser coils (air-cooled units).
    • Inspect condenser fan motor and blades.
    • Check inlet water valve, float, and filters for correct operation.
    • Verify ice thickness probe or sensor calibration.
    • Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary.
    • Test compressor amperage and general performance.
    • Inspect water pump operation and clean pump housing.
    • Check harvest cycle operation (heater or hot gas valve).
    • Inspect electrical connections, relays, and contactors.
    • Replace inline water filter cartridge.
