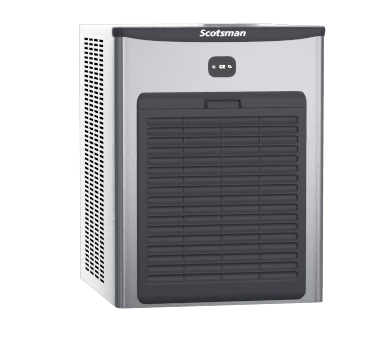

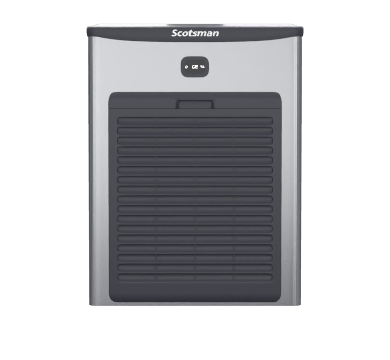

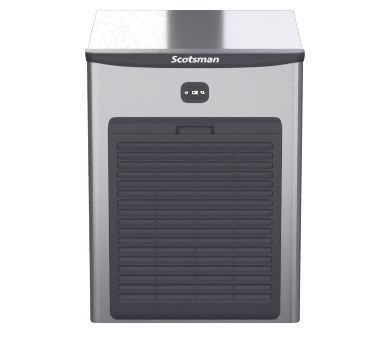

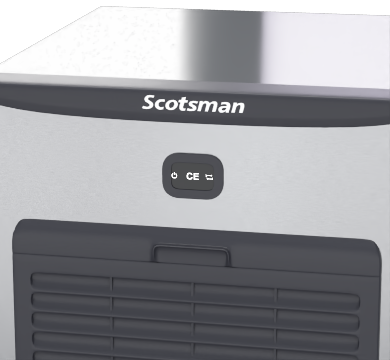

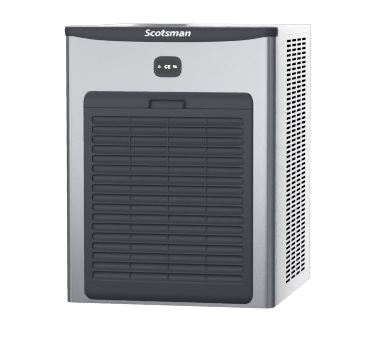

Scotsman MXF 1027 AS OX - 430kg - Modular Flake Ice Maker

Description

Dimensions
W: 560mm D: 615mm H: 735mm

Packed Weight: 90kg
Product Features
  • Head only Ice maker
  • 430kg daily production rate
  • Produces very dry flake ice - water content 12%
  • Air cooled version
  • Agion Technology resists microbe's growth and odours development to produce pure, clear and transparent ice cubes
  • EcoX hydrocarbons R290 refrigerant gas
  • XSafe - Natural Sanitation System
  • Core ice system - stable Axial load evaporator system
  • Highly balanced augur double fly system core evaporator
  • High tech water sump with easy regulation system
  • Ice level sensor for seamless operations
  • Smart touch display with with bluetooth and cloud connectivity
  • XWave app with improved electronics and programming
  • Stainless steel finish with removable air grid
  • Requires storage bin model NB 193, NB 393, NB 530, CBT 30 52 AMCD cover (required cover when used NB 393/ NB 530)
  • Includes removable air filter, water & drain hose

All Ice machines MUST be maintained to ensure high performance.

The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.

This maintains the quality of the ice shape and thickness.

This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance.

If your ice machine is not maintained, your warranty may be void.

6 Monthly Maintenance Program

  • Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler.
  • Sanitise water reservoir, distribution tubes, and bin interior.
  • Clean and flush condenser coils (air-cooled units).
  • Inspect condenser fan motor and blades.
  • Check inlet water valve, float, and filters for correct operation.
  • Verify ice thickness probe or sensor calibration.
  • Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary.
  • Test compressor amperage and general performance.
  • Inspect water pump operation and clean pump housing.
  • Check harvest cycle operation (heater or hot gas valve).
  • Inspect electrical connections, relays, and contactors.
  • Replace inline water filter cartridge.
Product form

ScotsmanSKU: MXF 1027 AS OX In Stock

$10,255.66 $13,859.00

Excl. GST Incl. GST
Prices exclude GST
Free pickup in our shop(s)
    • Delivery Australia-wide, Tracking Included

    Guaranteed Safe Checkout

    • Visa
    • Mastercard
    • American Express
    • PayPal
    • Apple Pay
    • Shop Pay
    • Google Pay

    From $18.59/day

    Apply Now

    Specifications
    Brand Scotsman
    MPN MXF 1027 AS OX
    Product Dimensions 560(W) x 735(H) x 615(D)mm
    Warranty 2 year parts and labour

    Product Documents

    Description

    Dimensions
    W: 560mm D: 615mm H: 735mm

    Packed Weight: 90kg
    Product Features
    • Head only Ice maker
    • 430kg daily production rate
    • Produces very dry flake ice - water content 12%
    • Air cooled version
    • Agion Technology resists microbe's growth and odours development to produce pure, clear and transparent ice cubes
    • EcoX hydrocarbons R290 refrigerant gas
    • XSafe - Natural Sanitation System
    • Core ice system - stable Axial load evaporator system
    • Highly balanced augur double fly system core evaporator
    • High tech water sump with easy regulation system
    • Ice level sensor for seamless operations
    • Smart touch display with with bluetooth and cloud connectivity
    • XWave app with improved electronics and programming
    • Stainless steel finish with removable air grid
    • Requires storage bin model NB 193, NB 393, NB 530, CBT 30 52 AMCD cover (required cover when used NB 393/ NB 530)
    • Includes removable air filter, water & drain hose

    All Ice machines MUST be maintained to ensure high performance.

    The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.

    This maintains the quality of the ice shape and thickness.

    This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance.

    If your ice machine is not maintained, your warranty may be void.

    6 Monthly Maintenance Program

    • Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler.
    • Sanitise water reservoir, distribution tubes, and bin interior.
    • Clean and flush condenser coils (air-cooled units).
    • Inspect condenser fan motor and blades.
    • Check inlet water valve, float, and filters for correct operation.
    • Verify ice thickness probe or sensor calibration.
    • Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary.
    • Test compressor amperage and general performance.
    • Inspect water pump operation and clean pump housing.
    • Check harvest cycle operation (heater or hot gas valve).
    • Inspect electrical connections, relays, and contactors.
    • Replace inline water filter cartridge.
