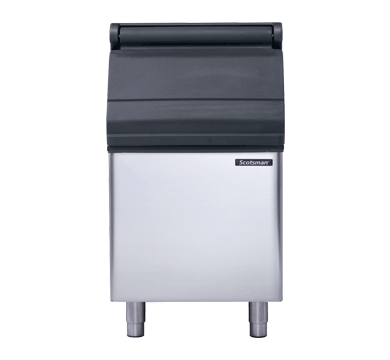

Scotsman NB 193 - 129kg - Ice Storage Bin

Description

Dimensions
W: 560mm D: 843mm H: 1045mm

Packed Weight: 54.2kg
Product Features
  • Storage bins only
  • 129kg maximum Ice storage capacity
  • Slope front bins
  • High density polyethylene insulation
  • Easy clean with removable gaskets
  • Convenient built-in scoop holder
  • Stainless steel bin exterior with rotocast plastic hinged door
  • Requires storage bin top covers CBT 22 EFCD (required cover for MF 47, MFN 46 and MFN 56 when in use with NB 193 storage bins)
  • Includes Ice scoop, water & drain hose

All Ice machines MUST be maintained to ensure high performance.

The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.

This maintains the quality of the ice shape and thickness.

This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance.

If your ice machine is not maintained, your warranty may be void.

6 Monthly Maintenance Program

  • Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler.
  • Sanitise water reservoir, distribution tubes, and bin interior.
  • Clean and flush condenser coils (air-cooled units).
  • Inspect condenser fan motor and blades.
  • Check inlet water valve, float, and filters for correct operation.
  • Verify ice thickness probe or sensor calibration.
  • Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary.
  • Test compressor amperage and general performance.
  • Inspect water pump operation and clean pump housing.
  • Check harvest cycle operation (heater or hot gas valve).
  • Inspect electrical connections, relays, and contactors.
  • Replace inline water filter cartridge.
Product form

ScotsmanSKU: NB 193 In Stock

$1,714.56+GST $2,256.00

Free pickup in our shop(s)
    • Delivery Australia-wide, Tracking Included

    Guaranteed Safe Checkout

    • Visa
    • Mastercard
    • American Express
    • PayPal
    • Apple Pay
    • Shop Pay
    • Google Pay

    From $3.11/day

    Apply Now

    Specifications
    Brand Scotsman
    MPN NB 193
    Product Dimensions 560(W) x 1045(H) x 1045(D)mm
    Warranty 2 year parts and labour
    Product Specification PDF

    Description

    Dimensions
    W: 560mm D: 843mm H: 1045mm

    Packed Weight: 54.2kg
    Product Features
    • Storage bins only
    • 129kg maximum Ice storage capacity
    • Slope front bins
    • High density polyethylene insulation
    • Easy clean with removable gaskets
    • Convenient built-in scoop holder
    • Stainless steel bin exterior with rotocast plastic hinged door
    • Requires storage bin top covers CBT 22 EFCD (required cover for MF 47, MFN 46 and MFN 56 when in use with NB 193 storage bins)
    • Includes Ice scoop, water & drain hose

    All Ice machines MUST be maintained to ensure high performance.

    The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.

    This maintains the quality of the ice shape and thickness.

    This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance.

    If your ice machine is not maintained, your warranty may be void.

    6 Monthly Maintenance Program

    • Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler.
    • Sanitise water reservoir, distribution tubes, and bin interior.
    • Clean and flush condenser coils (air-cooled units).
    • Inspect condenser fan motor and blades.
    • Check inlet water valve, float, and filters for correct operation.
    • Verify ice thickness probe or sensor calibration.
    • Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary.
    • Test compressor amperage and general performance.
    • Inspect water pump operation and clean pump housing.
    • Check harvest cycle operation (heater or hot gas valve).
    • Inspect electrical connections, relays, and contactors.
    • Replace inline water filter cartridge.
