Scotsman NW 1408 AS OX - 630kg - XSafe Modular Ice Dice Ice Maker

Description

Dimensions
W: 760mm D: 620mm H: 1000mm

Packed Weight: 145kg
Product Features
  • Head only Ice maker
  • 630kg daily production rate
  • W 22mm x D 22mm x H 22mm, 10g ice cubes
  • Air cooled version
  • Agion Technology resists microbe's growth and odours development to produce pure, clear and transparent ice cubes
  • R404a refrigerant gas
  • XSafe - Natural Sanitation System
  • Vertical evaporator spray-system technology
  • Front evaporator access for easy servicing
  • One touch button for easy cleaning
  • T304 grade stainless steel exterior
  • Auto-alert indicator lights to show operation status and maintenance
  • Requires storage bin model NB 530, NB 948 with CBT 48 EAMCD cover (required cover when used NB 948), UBH 1100
  • Includes removable air filter, water & drain hose

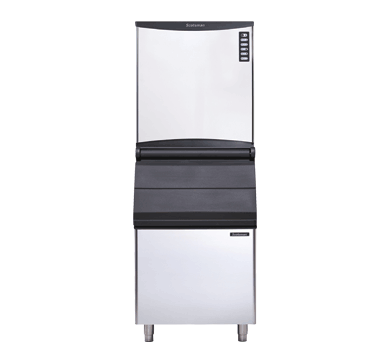

  • *Image shown Ice maker with optional storage bin

All Ice machines MUST be maintained to ensure high performance.

The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.

This maintains the quality of the ice shape and thickness.

This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance.

If your ice machine is not maintained, your warranty may be void.

6 Monthly Maintenance Program

  • Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler.
  • Sanitise water reservoir, distribution tubes, and bin interior.
  • Clean and flush condenser coils (air-cooled units).
  • Inspect condenser fan motor and blades.
  • Check inlet water valve, float, and filters for correct operation.
  • Verify ice thickness probe or sensor calibration.
  • Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary.
  • Test compressor amperage and general performance.
  • Inspect water pump operation and clean pump housing.
  • Check harvest cycle operation (heater or hot gas valve).
  • Inspect electrical connections, relays, and contactors.
  • Replace inline water filter cartridge.
Product form

ScotsmanSKU: NW 1408 AS OX In Stock

$11,457.00+GST $15,075.00

Free pickup in our shop(s)
    • Delivery Australia-wide, Tracking Included

    Guaranteed Safe Checkout

    • Visa
    • Mastercard
    • American Express
    • PayPal
    • Apple Pay
    • Shop Pay
    • Google Pay

    From $20.77/day

    Apply Now

    Specifications
    Brand Scotsman
    MPN NW 1408 AS OX
    Product Dimensions 760(W) x 1000(H) x 1000(D)mm
    Warranty 2 year parts and labour
    Product Specification PDF

    Description

    Dimensions
    W: 760mm D: 620mm H: 1000mm

    Packed Weight: 145kg
    Product Features
    • Head only Ice maker
    • 630kg daily production rate
    • W 22mm x D 22mm x H 22mm, 10g ice cubes
    • Air cooled version
    • Agion Technology resists microbe's growth and odours development to produce pure, clear and transparent ice cubes
    • R404a refrigerant gas
    • XSafe - Natural Sanitation System
    • Vertical evaporator spray-system technology
    • Front evaporator access for easy servicing
    • One touch button for easy cleaning
    • T304 grade stainless steel exterior
    • Auto-alert indicator lights to show operation status and maintenance
    • Requires storage bin model NB 530, NB 948 with CBT 48 EAMCD cover (required cover when used NB 948), UBH 1100
    • Includes removable air filter, water & drain hose
    • *Image shown Ice maker with optional storage bin

    All Ice machines MUST be maintained to ensure high performance.

    The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.

    This maintains the quality of the ice shape and thickness.

    This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance.

    If your ice machine is not maintained, your warranty may be void.

    6 Monthly Maintenance Program

    • Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler.
    • Sanitise water reservoir, distribution tubes, and bin interior.
    • Clean and flush condenser coils (air-cooled units).
    • Inspect condenser fan motor and blades.
    • Check inlet water valve, float, and filters for correct operation.
    • Verify ice thickness probe or sensor calibration.
    • Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary.
    • Test compressor amperage and general performance.
    • Inspect water pump operation and clean pump housing.
    • Check harvest cycle operation (heater or hot gas valve).
    • Inspect electrical connections, relays, and contactors.
    • Replace inline water filter cartridge.
