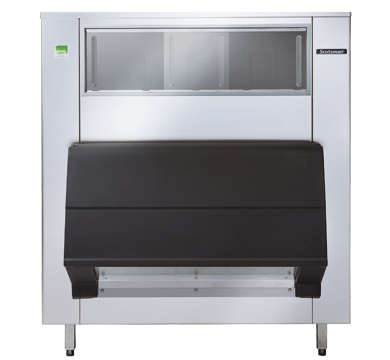

Scotsman UBH 1100 - 553kg - Ice Storage Bin

Description

Dimensions
W: 1220mm D: 1128mm H: 1427mm

Packed Weight: 169kg
Product Features
  • Storage bins only
  • 553kg maximum Ice storage capacity
  • Upright front bins
  • Pre-cut top pane to accommodate multiple head units
  • High density polyethylene insulation
  • Easy clean with removable gaskets
  • Convenient multi-positioned Ice deflector, preventing Ice spills
  • Stainless steel bin exterior with front window view
  • Ice chute cut-out require upon installation
  • Single spring loaded bin door for safe usage and tight seal of storage compartment
  • Includes Ice paddle, water & drain hose
  • Compatible with C 1448, C 1848, NW 1008, NW 1408 , MFN 56, MF 59, MF 66, MF 69, MAR 76, MAR 79, MAR 106 ice maker head units

All Ice machines MUST be maintained to ensure high performance.

The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.

This maintains the quality of the ice shape and thickness.

This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance.

If your ice machine is not maintained, your warranty may be void.

6 Monthly Maintenance Program

  • Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler.
  • Sanitise water reservoir, distribution tubes, and bin interior.
  • Clean and flush condenser coils (air-cooled units).
  • Inspect condenser fan motor and blades.
  • Check inlet water valve, float, and filters for correct operation.
  • Verify ice thickness probe or sensor calibration.
  • Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary.
  • Test compressor amperage and general performance.
  • Inspect water pump operation and clean pump housing.
  • Check harvest cycle operation (heater or hot gas valve).
  • Inspect electrical connections, relays, and contactors.
  • Replace inline water filter cartridge.
Product form

ScotsmanSKU: UBH 1100 Out of Stock

$9,622.96+GST $13,004.00

    • Delivery Australia-wide, Tracking Included

    Guaranteed Safe Checkout

    • Visa
    • Mastercard
    • American Express
    • PayPal
    • Apple Pay
    • Shop Pay
    • Google Pay

    From $17.45/day

    Apply Now

    Specifications
    Brand Scotsman
    Product Dimensions 1220(W) x 1427(H) x 1427(D)mm
    Warranty 2 year parts and labour

    Description

    Dimensions
    W: 1220mm D: 1128mm H: 1427mm

    Packed Weight: 169kg
    Product Features
    • Storage bins only
    • 553kg maximum Ice storage capacity
    • Upright front bins
    • Pre-cut top pane to accommodate multiple head units
    • High density polyethylene insulation
    • Easy clean with removable gaskets
    • Convenient multi-positioned Ice deflector, preventing Ice spills
    • Stainless steel bin exterior with front window view
    • Ice chute cut-out require upon installation
    • Single spring loaded bin door for safe usage and tight seal of storage compartment
    • Includes Ice paddle, water & drain hose
    • Compatible with C 1448, C 1848, NW 1008, NW 1408 , MFN 56, MF 59, MF 66, MF 69, MAR 76, MAR 79, MAR 106 ice maker head units

    All Ice machines MUST be maintained to ensure high performance.

    The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.

    This maintains the quality of the ice shape and thickness.

    This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance.

    If your ice machine is not maintained, your warranty may be void.

    6 Monthly Maintenance Program

    • Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler.
    • Sanitise water reservoir, distribution tubes, and bin interior.
    • Clean and flush condenser coils (air-cooled units).
    • Inspect condenser fan motor and blades.
    • Check inlet water valve, float, and filters for correct operation.
    • Verify ice thickness probe or sensor calibration.
    • Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary.
    • Test compressor amperage and general performance.
    • Inspect water pump operation and clean pump housing.
    • Check harvest cycle operation (heater or hot gas valve).
    • Inspect electrical connections, relays, and contactors.
    • Replace inline water filter cartridge.
