Description

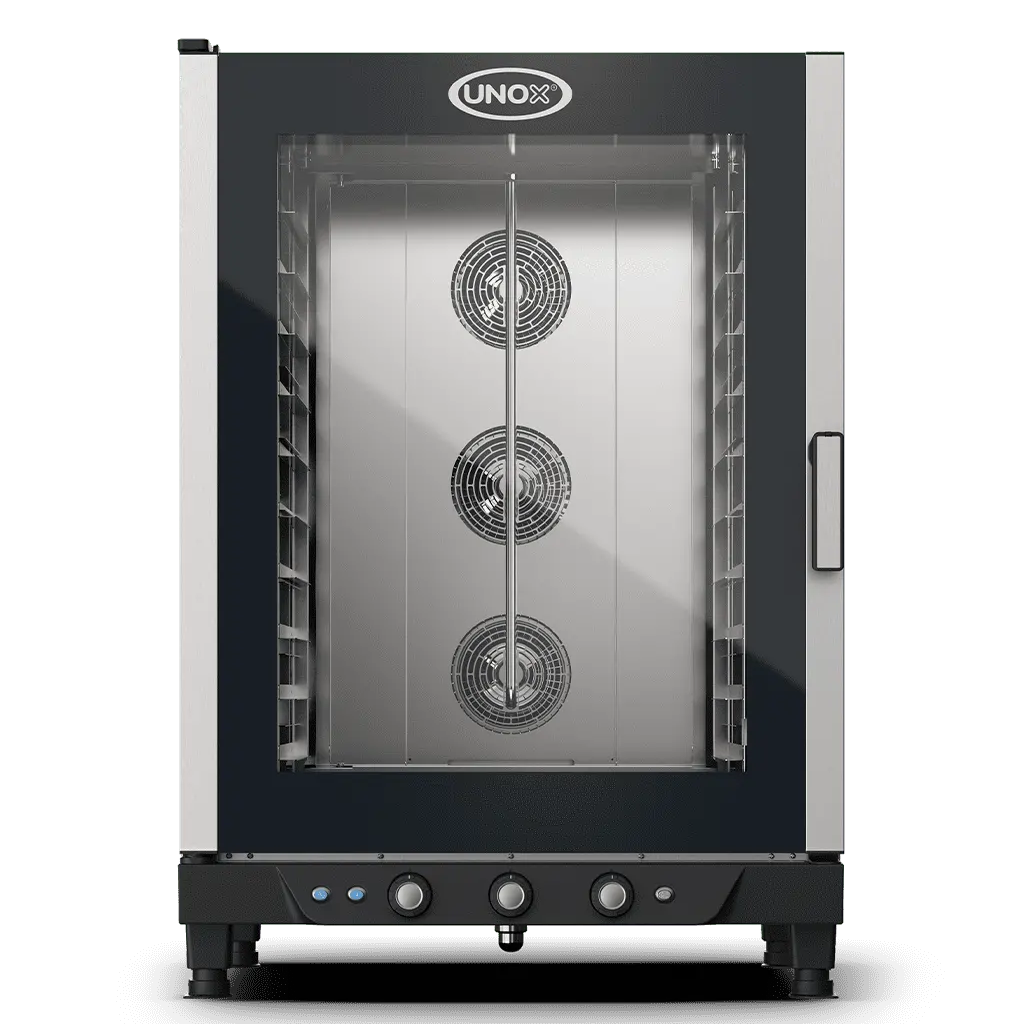

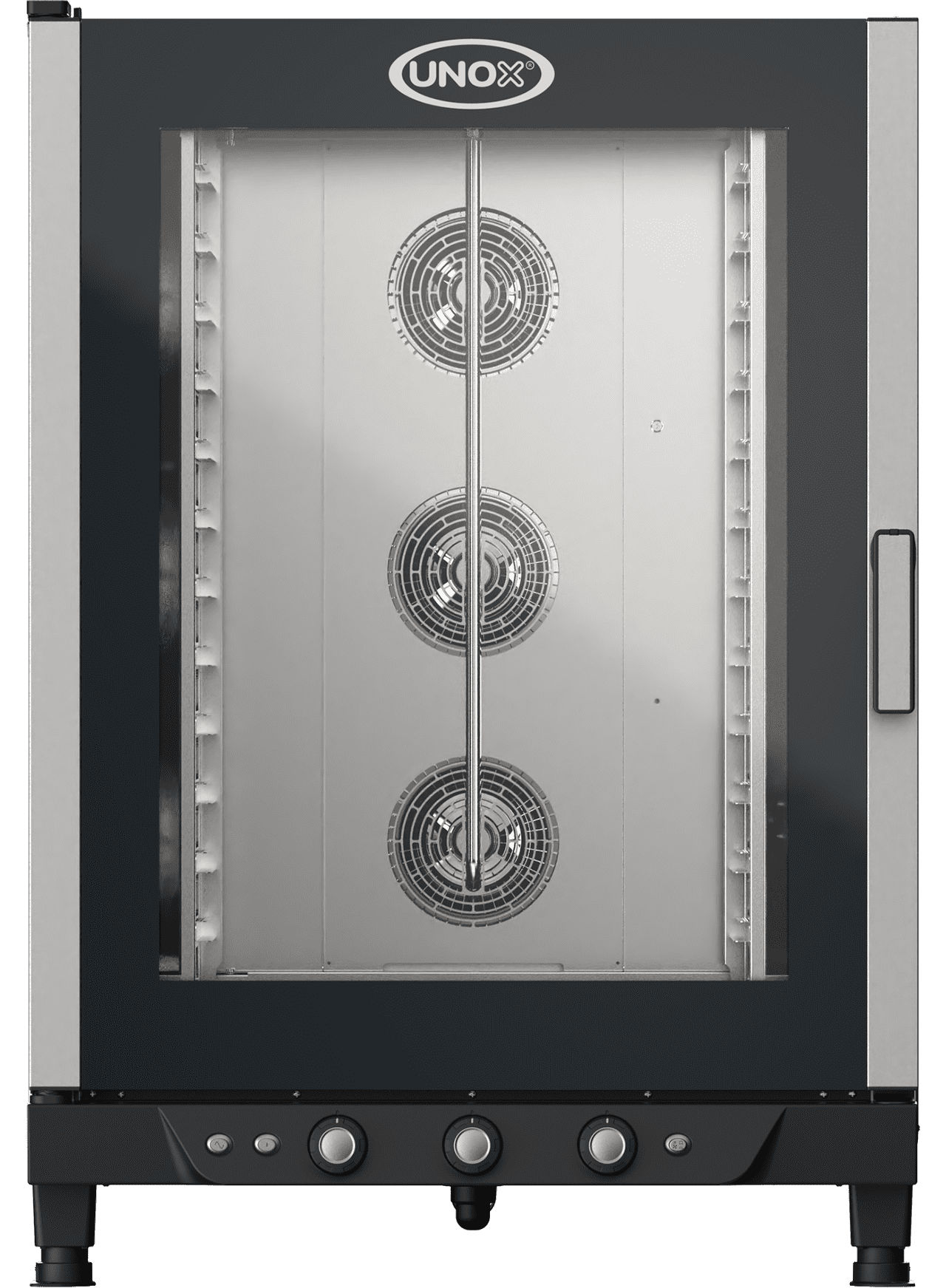

The UNOX XB893 is an electric convection oven with humidity from the BAKERLUX range, built for high-output bakery and pastry production across 10 standard 600×400 mm trays.
Why operators choose the XB893
- AIR.Plus multi-fan technology with reversing gear and 2 speeds for even baking on every tray
- STEAM.Plus and DRY.Plus humidity control for crust, colour and rise on fresh and frozen bakery products
- High-resistance AISI 304 stainless steel chamber with rounded edges for hygiene and durability
- Double glass door with embedded LED lighting and an integrated drip collection system
- 15.8 kW three-phase heating with high-performance circular elements
Specifications
| Brand |
UNOX |
| Model / MPN |
XB893 (BAKERLUX LINEMISS MANUAL) |
| Type |
Convection oven with humidity (electric) |
| Tray capacity |
10 trays, 600×400 mm |
| Tray pitch |
80 mm |
| Temperature range |
80 °C – 260 °C |
| Control |
Knob (analogue), hinge on left |
| Cooking chamber |
AISI 304 stainless steel, rounded edges, double glass, LED lighting |
| Humidity technology |
STEAM.Plus, DRY.Plus, AIR.Plus (2-speed reversing fans) |
| Voltage |
380-415 V ~3PH+N+PE (50/60 Hz) |
| Total power |
15.8 kW |
| Max amp draw |
26 A (32 A breaker) |
| Water connection |
3/4" female NPT inlet |
| External dimensions |
860(W) × 882(D) × 1252(H) mm |
| Net weight |
118 kg |
| Certifications |
CE, EAC, NSF, Kosher (K) |
| Warranty |
12 months parts and labour |
Venue suitability: Ideal for bakeries, patisseries, supermarket in-store bakeries, cafes and catering kitchens that bake fresh and frozen bakery products at volume and need humidity-assisted baking.
Browse the full convection ovens range or explore more bakery equipment to match this oven with trays, stands and proofing.
Installation & delivery: Requires a 380-415 V three-phase supply (32 A breaker) and a 3/4" water connection; plug is not included. Dispatched Australia-wide.
Frequently asked questions
How many trays does the UNOX XB893 hold? It holds 10 trays in the 600×400 mm format, with an 80 mm pitch between trays.
Is the XB893 a convection or combi oven? It is an electric convection oven with humidity (STEAM.Plus / DRY.Plus), not a full combi steamer.
What power supply does it need? 380-415 V three-phase (~3PH+N+PE), 15.8 kW total, with a 32 A breaker. A 220-240 V three-phase option is also available.
What is the cooking chamber made of? High-resistance AISI 304 stainless steel with rounded edges, a double-glass door and embedded LED lighting.
What warranty does it come with? 12 months covering both labour and spare parts.
SKU: XB893
In Stock
