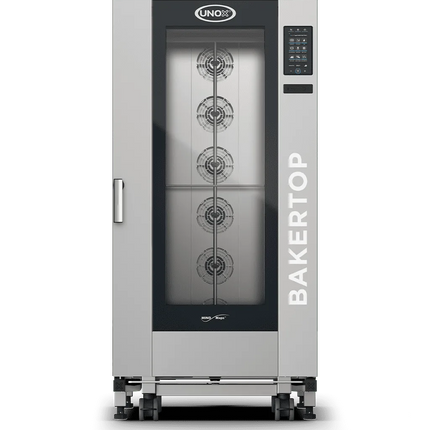

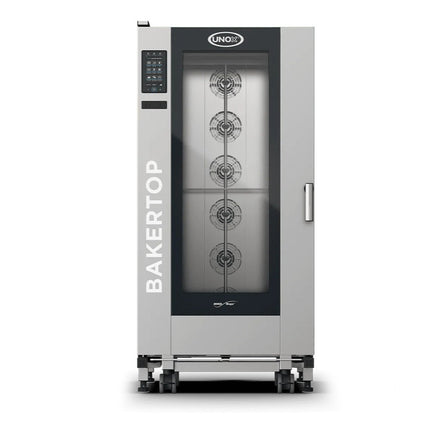

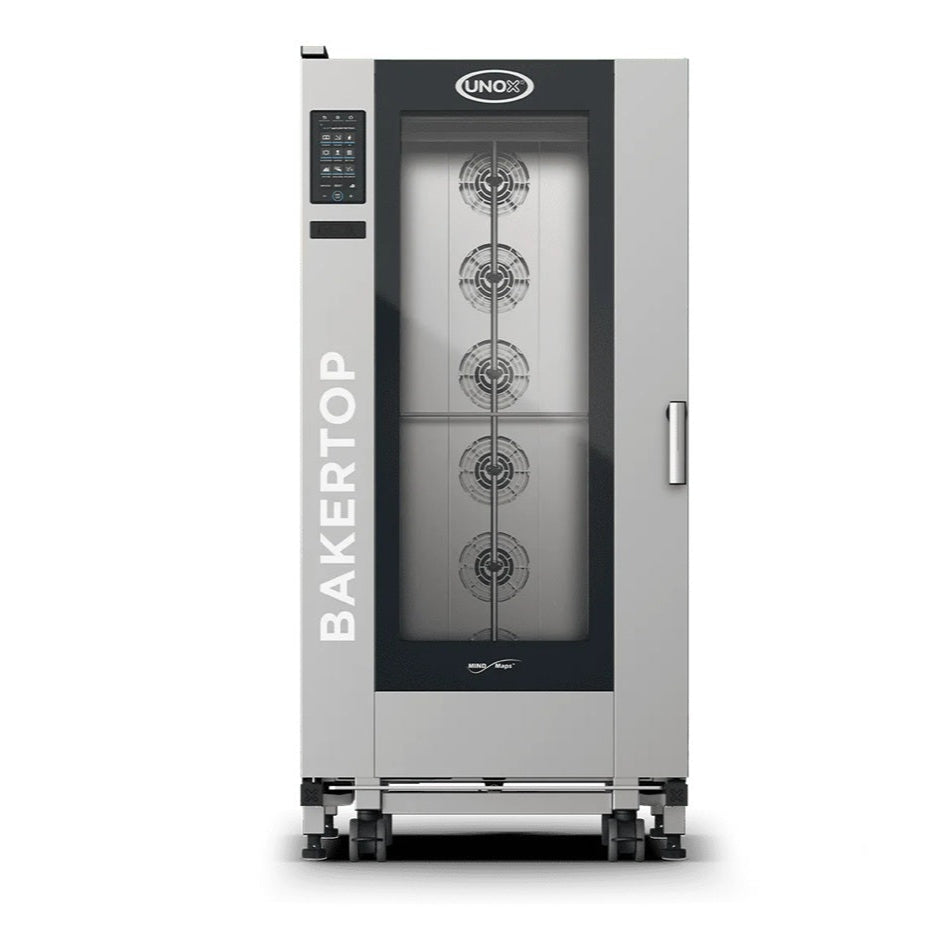

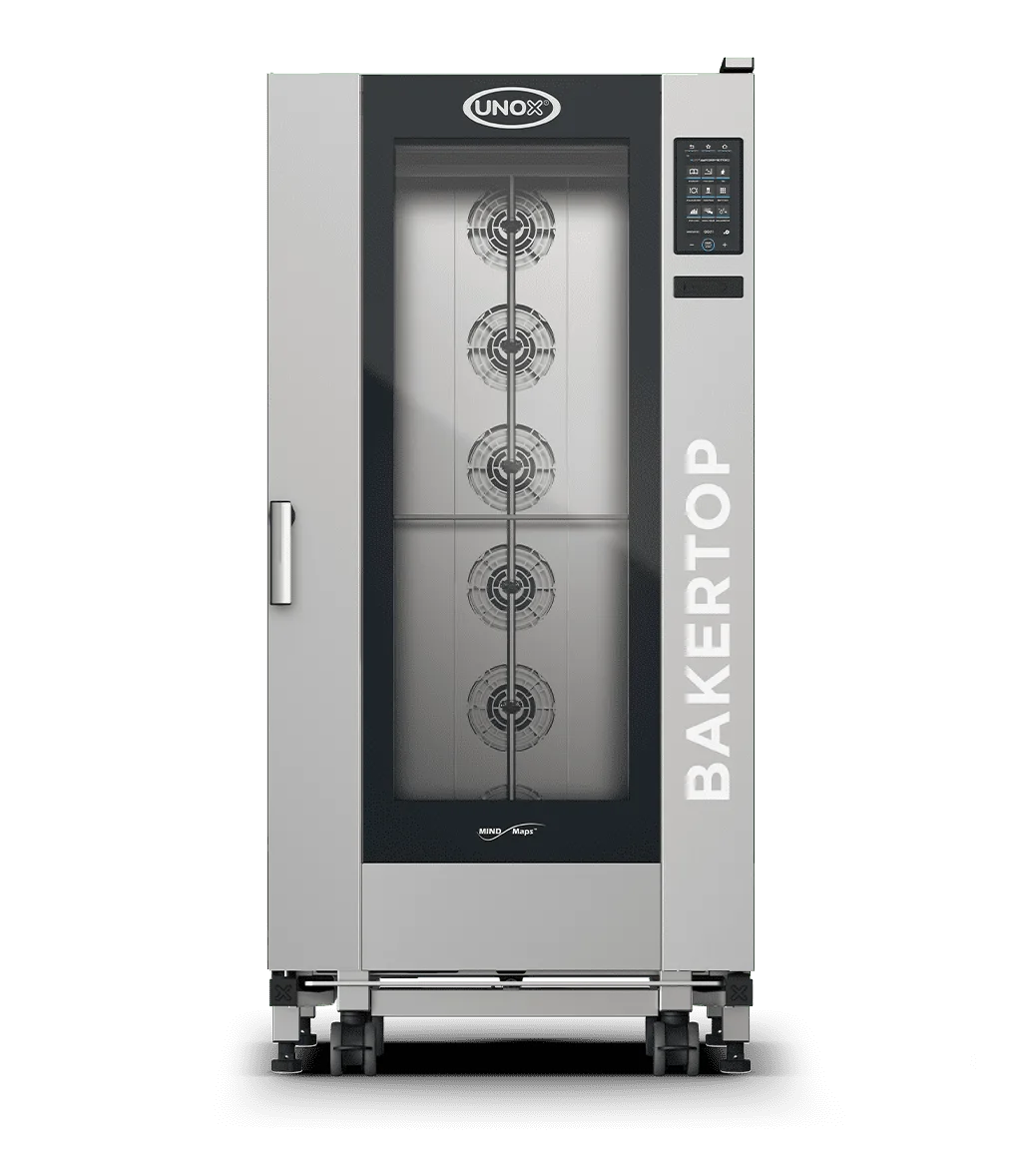

UNOX BAKERTOP MIND.Maps PLUS BIG Combi Oven 16 Tray XEBL-16EU

Description

Description

Technologically advanced combi oven for gastronomy cooking processes (dehydrating, steaming, low temperature cooking, sous vide cooking, roasting, grilling, pan frying, regeneration and plate regeneration) and for fresh or frozen baking thanks to Unox Intensive Cooking and Intelligence Performance technologies which guarantee perfect results and repeatability for any load size. Automatic management of cooking processes (CHEFUNOX) for perfect results even without trained staff.

Standard cooking features

Programs

  • 1000+ Programs
  • CHEFUNOX: choose something to cook from the library and the oven will automatically set all the parameters
  • MULTI.TIME: manages up to 10 cooking processes at the same time
  • MISE.EN.PLACE: synchronises the insertion of pans so that all the dishes are ready at the same time
  • MIND.Maps™: draw the cooking processes directly on the display
  • READY.COOK: ready to use settings with infinite time for a quick start

Manual cooking

  • Temperature: 30 °C – 300 °C
  • Up to 9 cooking steps
  • CLIMA.Control: humidity or dry air set by 10%
  • Delta T cooking with core probe
  • MULTI.Point core probe with 4 measuring points
  • SOUS-VIDE core probe with 2 measuring points (optional accessory)

Advanced and automatic cooking features

Unox Intelligent Performance

  • ADAPTIVE.Cooking™: automatically regulates the cooking parameters to ensure repeatable results
  • CLIMALUX™: total control of the humidity in the cooking chamber
  • SMART.Preheating: automatically sets the preheating temperature and duration
  • AUTO.Soft: manages the heat rise to make it more delicate
  • SENSE.Klean: estimates how dirty the oven is and suggests the appropriate automatic washing cycle

Unox Intensive Cooking

  • DRY.Maxi™: rapidly extracts the humidity from the cooking chamber
  • STEAM.Maxi™: produces saturated steam
  • AIR.Maxi™: manage fans auto-reverse and pulse function
  • PRESSURE.Steam: increases the steam saturation and temperature

Key features

  • ROTOR.Klean™: automatic washing system
  • Automatic special washing behind the fan guard
  • Moulded cooking chamber made of AISI 316 L stainless steel
  • Triple glass
  • Cooking chamber lighting through LED lights embedded in the door
  • Tray supports with anti-tip system
  • Drip collection system integrated in the door which works even when the door is open
  • 6 motors with multiple fan system with reverse gear and high power intensity rectilinear heating elements
  • Integrated DET&Rinse™ detergent container
  • Integrated Wi-Fi
  • Wi-Fi / USB data: download/upload HACCP data
  • Wi-Fi / USB data: download/upload programs

Electrical power supply for Electric Models

  • STANDARD
  • Voltage 380-415 V
  • Phase ~3PH+N+PE
  • Frequency 50 / 60 Hz
  • Total power 38.5kW
  • Max Amp draw 58 A
  • Required breaker size 63 A
  • Power cable requirements* 5G x 16 mm^2
  • Plug NOT INCLUDED

Electrical power supply for Gas Models

  • Voltage 220-240 V
  • Phase ~1PH+N+PE
  • Frequency 50 / 60 Hz
  • Total power 2.5kW
  • Max Amp draw 11 A
  • Required breaker size 16 A
  • Power cable requirements* 3G x 1,5 mm^2
  • Plug Schuko

Gas power supply for Gas Models

Gas type

 Nominal gas power

Inlet pressure

Gas valve orifice

Hook-up

G110

39 kW

5-40 mbar

 -

 3/4" gas inlet

G20

48 kW

5-40 mbar

 -

3/4" gas inlet

G25

 48 kW

5-40 mbar

-

3/4" gas inlet

G25.1

48 kW

5-40 mbar

 -

3/4" gas inlet

G25.3

 48 kW

5-40 mbar

-

 3/4" gas inlet

G30

48 kW

48 kW

5.5 mm

3/4" gas inlet

G31

48 kW

 5-40 mbar

5.5 mm

3/4" gas inlet

Product form

UNOXSKU: XEBL-16EU-YPRS In Stock

$35,764.00+GST $42,075.00

Free pickup in our shop(s)
    • Delivery Australia-wide, Tracking Included

    Guaranteed Safe Checkout

    • Visa
    • Mastercard
    • American Express
    • PayPal
    • Apple Pay
    • Shop Pay
    • Google Pay

    From $64.85/day

    Apply Now

    Specifications
    Brand UNOX
    MPN XEBL-16EU-YPRS
    Product Dimensions 892(W) x1018(D) x1875(H) mm
    Power 415 V 3PH+N+E38.5 kW 63AMP CB
    Warranty 12 months warranty for labour and spare parts
    Product Specification PDF

    Description

    Description

    Technologically advanced combi oven for gastronomy cooking processes (dehydrating, steaming, low temperature cooking, sous vide cooking, roasting, grilling, pan frying, regeneration and plate regeneration) and for fresh or frozen baking thanks to Unox Intensive Cooking and Intelligence Performance technologies which guarantee perfect results and repeatability for any load size. Automatic management of cooking processes (CHEFUNOX) for perfect results even without trained staff.

    Standard cooking features

    Programs

    • 1000+ Programs
    • CHEFUNOX: choose something to cook from the library and the oven will automatically set all the parameters
    • MULTI.TIME: manages up to 10 cooking processes at the same time
    • MISE.EN.PLACE: synchronises the insertion of pans so that all the dishes are ready at the same time
    • MIND.Maps™: draw the cooking processes directly on the display
    • READY.COOK: ready to use settings with infinite time for a quick start

    Manual cooking

    • Temperature: 30 °C – 300 °C
    • Up to 9 cooking steps
    • CLIMA.Control: humidity or dry air set by 10%
    • Delta T cooking with core probe
    • MULTI.Point core probe with 4 measuring points
    • SOUS-VIDE core probe with 2 measuring points (optional accessory)

    Advanced and automatic cooking features

    Unox Intelligent Performance

    • ADAPTIVE.Cooking™: automatically regulates the cooking parameters to ensure repeatable results
    • CLIMALUX™: total control of the humidity in the cooking chamber
    • SMART.Preheating: automatically sets the preheating temperature and duration
    • AUTO.Soft: manages the heat rise to make it more delicate
    • SENSE.Klean: estimates how dirty the oven is and suggests the appropriate automatic washing cycle

    Unox Intensive Cooking

    • DRY.Maxi™: rapidly extracts the humidity from the cooking chamber
    • STEAM.Maxi™: produces saturated steam
    • AIR.Maxi™: manage fans auto-reverse and pulse function
    • PRESSURE.Steam: increases the steam saturation and temperature

    Key features

    • ROTOR.Klean™: automatic washing system
    • Automatic special washing behind the fan guard
    • Moulded cooking chamber made of AISI 316 L stainless steel
    • Triple glass
    • Cooking chamber lighting through LED lights embedded in the door
    • Tray supports with anti-tip system
    • Drip collection system integrated in the door which works even when the door is open
    • 6 motors with multiple fan system with reverse gear and high power intensity rectilinear heating elements
    • Integrated DET&Rinse™ detergent container
    • Integrated Wi-Fi
    • Wi-Fi / USB data: download/upload HACCP data
    • Wi-Fi / USB data: download/upload programs

    Electrical power supply for Electric Models

    • STANDARD
    • Voltage 380-415 V
    • Phase ~3PH+N+PE
    • Frequency 50 / 60 Hz
    • Total power 38.5kW
    • Max Amp draw 58 A
    • Required breaker size 63 A
    • Power cable requirements* 5G x 16 mm^2
    • Plug NOT INCLUDED

    Electrical power supply for Gas Models

    • Voltage 220-240 V
    • Phase ~1PH+N+PE
    • Frequency 50 / 60 Hz
    • Total power 2.5kW
    • Max Amp draw 11 A
    • Required breaker size 16 A
    • Power cable requirements* 3G x 1,5 mm^2
    • Plug Schuko

    Gas power supply for Gas Models

    Gas type

     Nominal gas power

    Inlet pressure

    Gas valve orifice

    Hook-up

    G110

    39 kW

    5-40 mbar

     -

     3/4" gas inlet

    G20

    48 kW

    5-40 mbar

     -

    3/4" gas inlet

    G25

     48 kW

    5-40 mbar

    -

    3/4" gas inlet

    G25.1

    48 kW

    5-40 mbar

     -

    3/4" gas inlet

    G25.3

     48 kW

    5-40 mbar

    -

     3/4" gas inlet

    G30

    48 kW

    48 kW

    5.5 mm

    3/4" gas inlet

    G31

    48 kW

     5-40 mbar

    5.5 mm

    3/4" gas inlet
