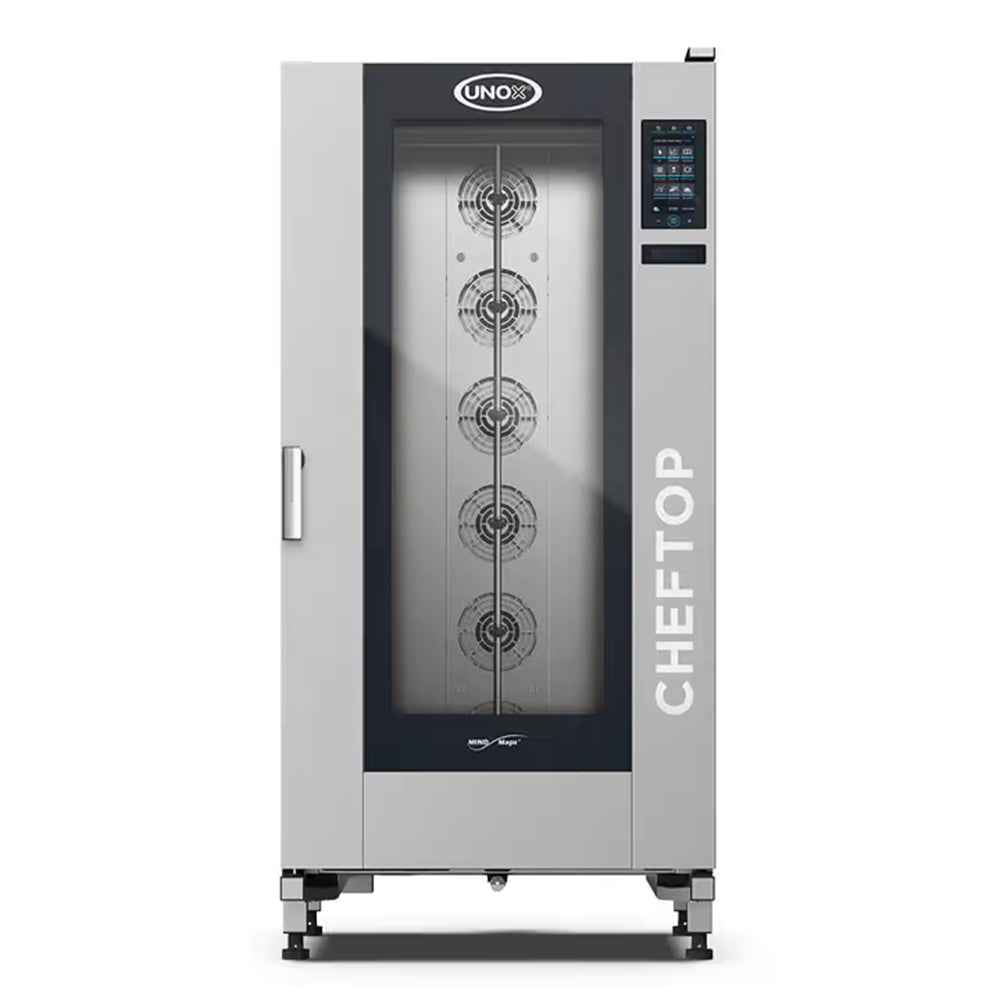

Unox Cheftop Mind.Maps PLUS Big 20 Tray Combi Oven GN 1/1

Description

Technologically advanced combi oven for gastronomy cooking processes (dehydrating, steaming, low temperature cooking, sous vide cooking, roasting, grilling, pan frying, regeneration and plate regeneration) and for fresh or frozen baking thanks to Unox Intensive Cooking and Intelligence Performance technologies which guarantee perfect results and repeatability for any load size.
Automatic management of cooking processes (CHEFUNOX) for perfect results even without trained staff.

Standard cooking features
Programs
• 1000+ Programs
• CHEFUNOX: choose something to cook from the library and the oven will automatically set all the parameters
• MULTI.TIME: manages up to 10 cooking processes at the same time
• MISE.EN.PLACE: synchronises the insertion of pans so that all the dishes are ready at the same time
• MIND.Maps™: draw the cooking processes directly on the display
• READY.COOK: ready to use settings with infinite time for a quick start
Manual cooking
• Temperature: 30 °C – 300 °C
• Up to 9 cooking steps
• CLIMA.Control: humidity or dry air set by 10%
• Delta T cooking with core probe
• MULTI.Point core probe with 4 measuring points
• SOUS-VIDE core probe with 2 measuring points (optional accessory)

Advanced and automatic cooking features
Unox Intelligent Performance
• ADAPTIVE.Cooking™: automatically regulates the cooking parameters to ensure repeatable results
• CLIMALUX™: total control of the humidity in the cooking chamber
• SMART.Preheating: automatically sets the preheating temperature and duration
• AUTO.Soft: manages the heat rise to make it more delicate
• SENSE.Klean: estimates how dirty the oven is and suggests the appropriate automatic washing cycle
Unox Intensive Cooking
• DRY.Maxi™: rapidly extracts the humidity from the cooking chamber
• STEAM.Maxi™: produces saturated steam
• AIR.Maxi™: manage fans auto-reverse and pulse function
• PRESSURE.Steam: increases the steam saturation and temperature

Key features
• ROTOR.Klean™: automatic washing system
• Automatic special washing behind the fan guard
• Moulded cooking chamber made of AISI 316 L stainless steel
• Triple glass
• Cooking chamber lighting through LED lights embedded in the door
• Tray supports with anti-tip system
• Drip collection system integrated in the door which works even when the door is open
• 6 motors with multiple fan system with reverse gear and high power intensity rectilinear heating elements
• Integrated DET&Rinse™ detergent container
• Integrated Wi-Fi
• Wi-Fi / USB data: download/upload HACCP data
• Wi-Fi / USB data: download/upload programs

Product Code Pitch Frequency Voltage Electrical Power Weight Gas Power
XEVL-2011-YPRS 67mm 50/60 Hz 415 V 3PH+N+E 38.5 kW 63AMP CB 292KG -
XEVL-2011-YPLS 67mm 50/60 Hz 415 V 3PH+N+E 38.5 kW 63AMP CB 292KG -
XEVL-2011-GPRS 67mm 50/60 Hz 220-240 V 1PH+N+E 2.8 kW 15AMP CB 309KG 48 kW 172.8 MJ/HR
XEVL-2011-GPLS 67mm 50/60 Hz 220-240 V 1PH+N+E 2.8 kW 15AMP CB 309KG 48 kW 172.8 MJ/HR
Product form

UNOXSKU: XEVL-2011-YPRS In Stock

$35,764.00+GST $42,075.00

Free pickup in our shop(s)
    • Delivery Australia-wide, Tracking Included

    Guaranteed Safe Checkout

    • Visa
    • Mastercard
    • American Express
    • PayPal
    • Apple Pay
    • Shop Pay
    • Google Pay

    From $64.85/day

    Apply Now

    Specifications
    Brand UNOX
    MPN XEVL-2011-YPRS
    Product Dimensions 892(W) x 1018(D) x 1875(H) mm
    Warranty 12 months warranty for labour and spare parts
    Product Specification PDF

    Description

    Technologically advanced combi oven for gastronomy cooking processes (dehydrating, steaming, low temperature cooking, sous vide cooking, roasting, grilling, pan frying, regeneration and plate regeneration) and for fresh or frozen baking thanks to Unox Intensive Cooking and Intelligence Performance technologies which guarantee perfect results and repeatability for any load size.
    Automatic management of cooking processes (CHEFUNOX) for perfect results even without trained staff.

    Standard cooking features
    Programs
    • 1000+ Programs
    • CHEFUNOX: choose something to cook from the library and the oven will automatically set all the parameters
    • MULTI.TIME: manages up to 10 cooking processes at the same time
    • MISE.EN.PLACE: synchronises the insertion of pans so that all the dishes are ready at the same time
    • MIND.Maps™: draw the cooking processes directly on the display
    • READY.COOK: ready to use settings with infinite time for a quick start
    Manual cooking
    • Temperature: 30 °C – 300 °C
    • Up to 9 cooking steps
    • CLIMA.Control: humidity or dry air set by 10%
    • Delta T cooking with core probe
    • MULTI.Point core probe with 4 measuring points
    • SOUS-VIDE core probe with 2 measuring points (optional accessory)

    Advanced and automatic cooking features
    Unox Intelligent Performance
    • ADAPTIVE.Cooking™: automatically regulates the cooking parameters to ensure repeatable results
    • CLIMALUX™: total control of the humidity in the cooking chamber
    • SMART.Preheating: automatically sets the preheating temperature and duration
    • AUTO.Soft: manages the heat rise to make it more delicate
    • SENSE.Klean: estimates how dirty the oven is and suggests the appropriate automatic washing cycle
    Unox Intensive Cooking
    • DRY.Maxi™: rapidly extracts the humidity from the cooking chamber
    • STEAM.Maxi™: produces saturated steam
    • AIR.Maxi™: manage fans auto-reverse and pulse function
    • PRESSURE.Steam: increases the steam saturation and temperature

    Key features
    • ROTOR.Klean™: automatic washing system
    • Automatic special washing behind the fan guard
    • Moulded cooking chamber made of AISI 316 L stainless steel
    • Triple glass
    • Cooking chamber lighting through LED lights embedded in the door
    • Tray supports with anti-tip system
    • Drip collection system integrated in the door which works even when the door is open
    • 6 motors with multiple fan system with reverse gear and high power intensity rectilinear heating elements
    • Integrated DET&Rinse™ detergent container
    • Integrated Wi-Fi
    • Wi-Fi / USB data: download/upload HACCP data
    • Wi-Fi / USB data: download/upload programs

    Product Code Pitch Frequency Voltage Electrical Power Weight Gas Power
    XEVL-2011-YPRS 67mm 50/60 Hz 415 V 3PH+N+E 38.5 kW 63AMP CB 292KG -
    XEVL-2011-YPLS 67mm 50/60 Hz 415 V 3PH+N+E 38.5 kW 63AMP CB 292KG -
    XEVL-2011-GPRS 67mm 50/60 Hz 220-240 V 1PH+N+E 2.8 kW 15AMP CB 309KG 48 kW 172.8 MJ/HR
    XEVL-2011-GPLS 67mm 50/60 Hz 220-240 V 1PH+N+E 2.8 kW 15AMP CB 309KG 48 kW 172.8 MJ/HR
