Description

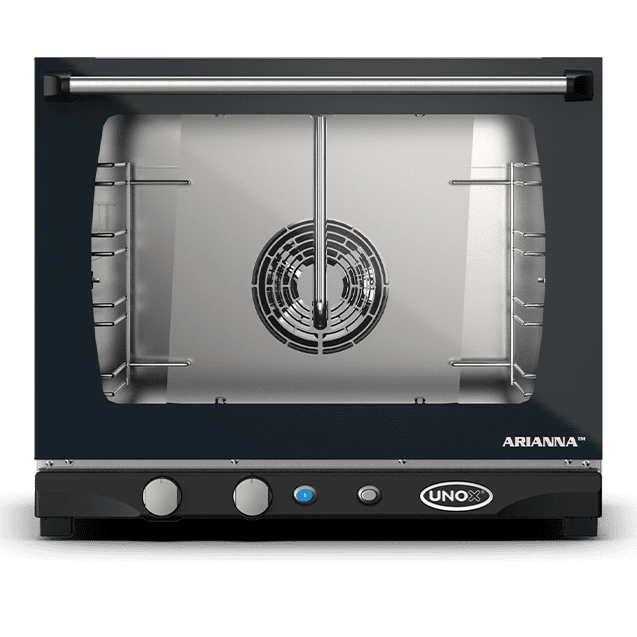

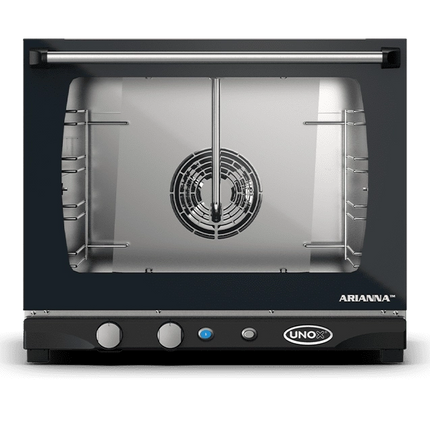

The UNOX XFT133 (Arianna, LineMiss™ Manual range) is an electric convection oven with humidity that bakes fresh and frozen bakery and pastry products evenly across four trays. Analogical knob control sets time, temperature, steam percentage and two fan speeds for hands-on, reliable operation.
Why operators choose the XFT133
- Holds four 460 x 330 mm trays at a 75 mm pitch for cafe, bakery and pastry output
- AIR.Plus multi-fan system with reverse gear and two speeds for even bake across every tray
- STEAM.Plus injects instant humidity and DRY.Plus rapidly extracts it for crust and texture control
- Rounded high-resistance AISI 304 stainless steel chamber with double glass and LED door lighting
- Compact 600 mm footprint on a standard 220-240 V single-phase supply
Specifications
| Brand |
UNOX |
| Model / MPN |
XFT133 (Arianna, LineMiss™ Manual) |
| Type |
Electric convection oven with humidity |
| Tray capacity |
4 trays, 460 x 330 mm |
| Tray pitch |
75 mm |
| Control |
Manual / analogical knob, drop-down door |
| Temperature range |
80 °C – 260 °C |
| Humidity system |
STEAM.Plus + DRY.Plus |
| Fan system |
AIR.Plus multi-fan, reverse gear, 2 speeds |
| Cooking chamber |
AISI 304 stainless steel, rounded edges, double glass, LED lighting |
| Power supply |
220-240 V 1N~, 50 / 60 Hz |
| Total power |
3 kW |
| External dimensions |
600 (W) x 655 (D) x 509 (H) mm |
| Net weight |
31 kg |
| Country of manufacture |
Italy |
| Warranty |
12 months parts & labour |
Venue suitability: Ideal for cafes, patisseries, bakeries and front-of-house bake-off where consistent results and a small footprint matter; explore more in our convection ovens range or the wider commercial ovens selection.
Installation & delivery: Connects to a standard 220-240 V single-phase outlet; no plumbing required for manual steam injection. Dispatched Australia-wide.
Frequently asked questions
How many trays does the UNOX XFT133 hold? It holds four 460 x 330 mm trays at a 75 mm pitch.
Does the XFT133 have humidity? Yes — STEAM.Plus creates instant humidity and DRY.Plus rapidly extracts it, both controllable from the panel.
What power supply does it need? A 220-240 V single-phase (1N~) supply at 50/60 Hz; total power draw is 3 kW.
What temperature range does it reach? 80 °C to 260 °C, with convection and humidity cooking available from 80 °C.
What is the warranty? 12 months covering parts and labour.
SKU: XFT133
In Stock
