Open Deck Display Fridge

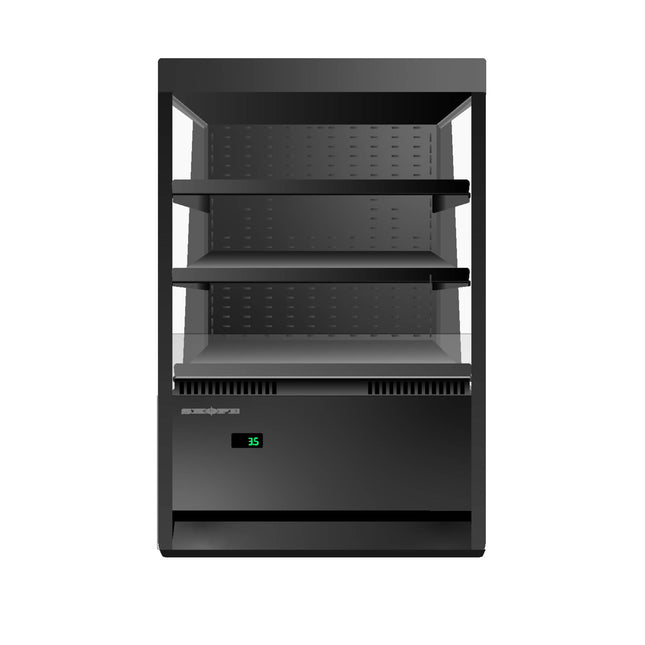

The OD400 has had a fresh upgrade bringing increased product visibility, R290 natural refrigerant, SKOPE-connect, dimmable lighting, and built-in night curtains. Truly green natural refrigeration technology with R290 natural refrigerant SKOPE's unique ChillGuard technology; leading-edge airflow engineering ensuring product is always chilled and ready to serve at food-safe temperatures (M1 - 0°C to 5°C) Huge storage capacity, incredible product visibility and maximum space to apply own branding SKOPE-connect app control and convenience – including “hush mode” for quiet running, HACCP recording and more High impact, dimmable, shelf lighting and glass sides for maximum viewing Ticket strips fitted to shelves as standard Built in night blind with energy saving mode Bottom-mounted interchangeable modular cartridge for quicker, safer servicing Best suited to: Quick Service Restaurants, Convenience / Petrol / Supermarkets, Hospitality / Venues, Accommodation, Schools Dimensions: 905 W x 660 D x 1360 H (mm) Door Type: No Door Shelves: 1 × top adjustable height and angle shelf (800W × 270D), 1 × middle adjustable height and angle shelf (800W × 295D), 1 × fixed angle bottom shelf (805W × 330D) Gross Volume (Litres): 314 Total Floor Area (m2): 0.6 Weight (kg): 135 Refrigeration Unit: Self-Contained Temperature Range: 1°C - 5°C (2°C - 4°C product mass average) Max Ambient Temperature: 25°C Refrigerant: R290/150 g Climate Class: 3M1 GEMS Energy Consumption (kWh/24h): 6.68 GEMS Annual Running Costs: $731 (@ $0.30/kWh) kW: 0.84 Current Draw (Amps): 3.5 Noise Measurement (dB): ​​65.6​ (adjustable to 64.5 with SKOPE-connect Hush Mode)​​ Interior Lighting: 3 × 6 watt LED shelf-front lights Controller: SCS Connect Power Cord: 3 m power cord with 3-pin, 10 amp plug Power Supply: 220-240 Volts a.c. 50 Hz, single phase supply Product Dimensions: 905(W) x 1360(H) x 660(D)mmOptions Available: Contact Us for more Information

Read more less

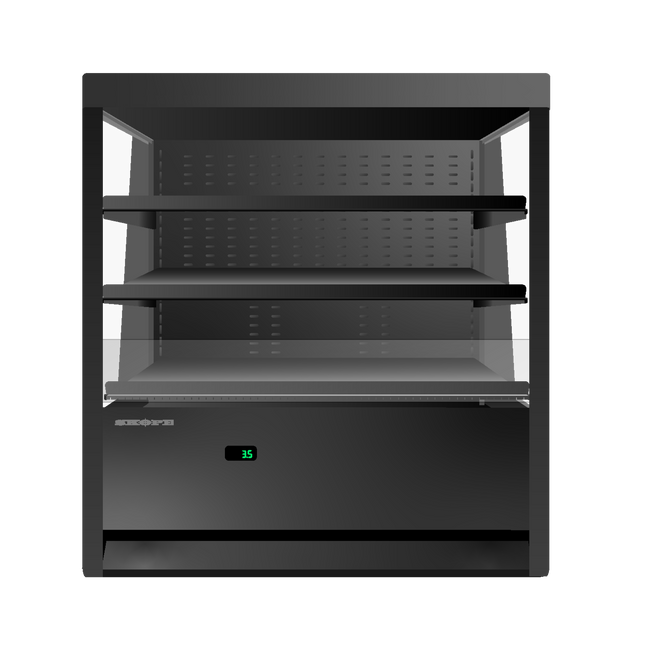

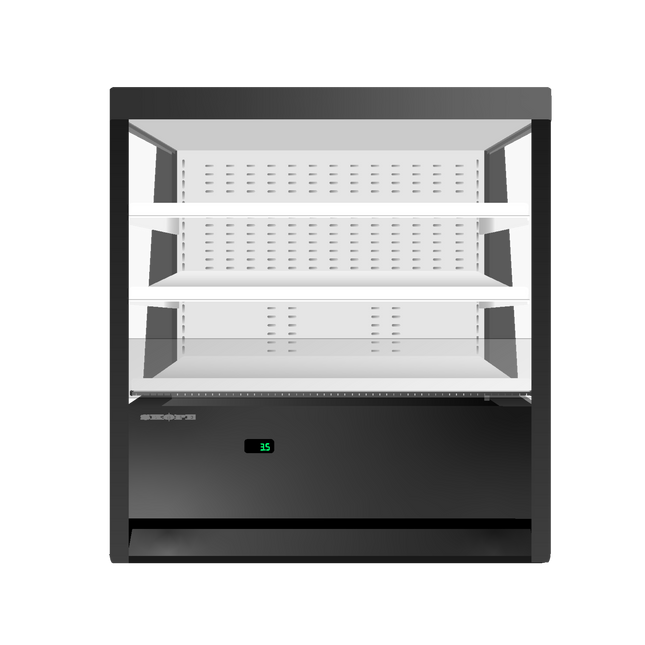

The OD460 has had a fresh upgrade bringing increased product visibility, R290 natural refrigerant, SKOPE-connect, dimmable lighting, and built-in night curtains. Truly green natural refrigeration technology with R290 natural refrigerant SKOPE's unique ChillGuard technology; leading-edge airflow engineering ensuring product is always chilled and ready to serve at food-safe temperatures (M1 - 0°C to 5°C) Huge storage capacity, incredible product visibility and maximum space to apply own branding SKOPE-connect app control and convenience – including “hush mode” for quiet running, HACCP recording and more High impact, dimmable, shelf lighting and glass sides for maximum viewing Ticket strips fitted to shelves as standard Built in night blind with energy saving mode Bottom-mounted interchangeable modular cartridge for quicker, safer servicing Best suited to: Quick Service Restaurants, Convenience / Petrol / Supermarkets, Hospitality / Venues, Accommodation, Schools Dimensions: 1205 W x 660 D x 1300 H (mm) Door Type: No Door Shelves: 1 × top adjustable height shelf (1100W × 270D), 1 × middle adjustable height shelf (1100W × 290D), 1 × fixed bottom shelf (1100W × 330D) Gross Volume (Litres): 403 Total Floor Area (m2): 0.8 Weight (kg): 150 Refrigeration Unit: Self-Contained Temperature Range: 1°C - 5°C (2°C - 4°C product mass average) Max Ambient Temperature: 25°C Refrigerant: R290/150 g Climate Class: 3M1 GEMS Energy Consumption (kWh/24h): 7.50 GEMS Annual Running Costs: $821 (@ $0.30/kWh) kW: 0.84 Current Draw (Amps): 3.5 Noise Measurement (dB): ​68.5​ (adjustable to 67.1 with SKOPE-connect Hush Mode)​ Interior Lighting: 3 × 7.5 watt LED shelf-front lights Controller: SCS Connect Power Cord: 3 m power cord with 3-pin, 10 amp plug Power Supply: 220-240 Volts a.c. 50 Hz, single phase supply Product Dimensions: 1205(W) x 1300(H) x 660(D)mmOptions Available: Contact Us for more Information

Read more less

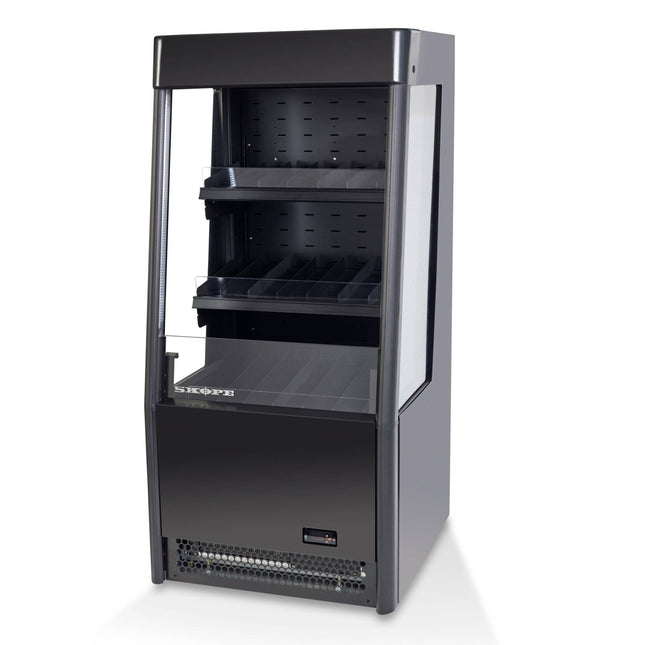

Features & Benefits Quick, easy access to food or drinks Increase your high-margin impulse sales Maximum space to apply your own branding Hassle-free, precise temperature control Front access, removable refrigeration system makes servicing a breeze and minimises disruption GEMS compliant Best suited to: Restaurants / Cafes, Clubs / Pubs / Bars, Quick Service Restaurants Specifications Dimensions: 650 W x 735 D x 1400 H (mm) Door Type: No Door Shelves: 2 x adjustable height shelves & 1 x fixed bottom shelf Gross Volume (Litres): 230 Total Floor Area (m2): 0.48 Weight (kg): 140 Refrigeration Unit: Self-Contained Temperature Range: 1°C to 5°C (2°C to 4°C product mass average) Max Ambient Temperature: 25°C Refrigerant: R134a / 420g GEMS Class: 3M1 GEMS Energy Consumption (kWh/24h): 8.30 kW: 0.77 Current Draw (Amps): 3.2 (includes unit 3.0) Electrical Safety Climate Class: 3 Interior Lighting: 2 x 9 Watt LED strip side lights (18 Watts total) Controller: Carel S4 Evo Refrigeration System: Electronically controlled, bottom mounted SKOPE refrigeration unit (UB89ABF) Power Supply: 220-240 Volts a.c. 50 Hz, single phase supply

Read more less

The all new OD720N is the newest addition to SKOPE's Open Deck range, bringing unique ChillguardTM technology, increased product visibility, and natural refrigerant technology. NB: Only available to purchase in Australia. Truly green natural refrigeration technology with R290 natural refrigerant SKOPE's unique ChillGuard technology; leading-edge airflow engineering ensuring product is always chilled and ready to serve at food-safe temperatures (M1 - 0°C to 5°C) Huge storage capactiy and incredible product visibility SKOPE-connect app control and convenience – including “hush mode” for quiet running, HACCP recording and more High impact, dimmable, shelf lighting and glass sides for maximum viewing Maximum space to apply own branding Ticket strips fitted to shelves as standard NB: Only available to purchase in Australia Best suited to: Restaurants / Cafes, Clubs / Pubs / Bars, Quick Service Restaurants, Convenience / Petrol / Supermarkets, Schools Dimensions: 1282 W x 836 D x 1540 H (mm) Door Type: No Door Shelves: 3 adjustable angle (8° or flat), adjustable height shelves + 1 fixed angle (8°) bottom shelf. Gross Volume (Litres): 798 Total Floor Area (m2): 1.07 Weight (kg): 248 Refrigeration Unit: Self-Contained Temperature Range: -1 to +5 Max Ambient Temperature: 25 Refrigerant: R290 / 135 g GEMS Class: 3M1 GEMS Energy Consumption (kWh/24h): 16.15 GEMS Annual Running Costs: $1768 (@ $0.30/kWh) kW: 1.15 Current Draw (Amps): 4.8 Interior Lighting: 4 × 7.5 W LED shelf lights Power Cord: 3 m power cord with 3-pin, 10 amp plug Power Supply: 220-240 Volts a.c. 50 Hz, single phase supply Product Dimensions: 1282(W) x 1540(H) x 836(D)mmOptions Available: Contact Us for more Information All Ice machines MUST be maintained to ensure high performance.The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.This maintains the quality of the ice shape and thickness. This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance. If your ice machine is not maintained, your warranty may be void. 6 Monthly Maintenance Program Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler. Sanitise water reservoir, distribution tubes, and bin interior. Clean and flush condenser coils (air-cooled units). Inspect condenser fan motor and blades. Check inlet water valve, float, and filters for correct operation. Verify ice thickness probe or sensor calibration. Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary. Test compressor amperage and general performance. Inspect water pump operation and clean pump housing. Check harvest cycle operation (heater or hot gas valve). Inspect electrical connections, relays, and contactors. Replace inline water filter cartridge.

Read more less

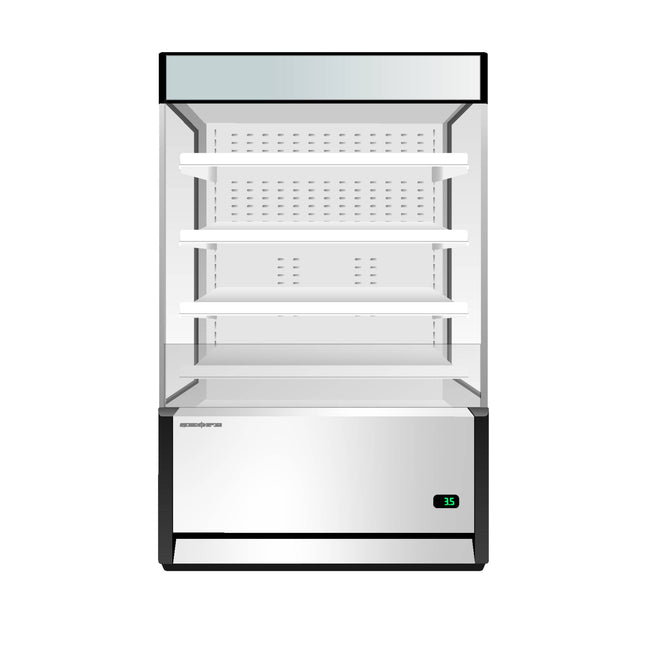

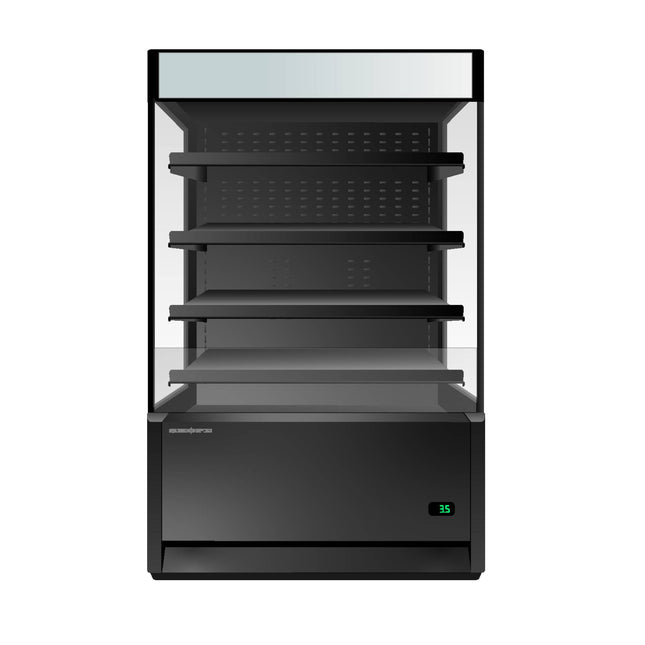

The new OD1100N brings an update to the previous generation model, with unique ChillguardTM technology, increased product visibility and natural refrigerant technology. There is plenty of space for brand exposure, with the illuminated sign, kick panel and side cladding all available. Plus, the 425 product capacity, high impact lighting and the glass sides for maximum viewing makes this ideal for impulse sale environments. High Sign and Low Sign options are available. Truly green natural refrigeration technology with R290 natural refrigerant SKOPE's unique ChillGuard technology; leading-edge airflow engineering ensuring product is always chilled and ready to serve at food-safe temperatures (M1 - 0°C to 5°C) Huge storage capacity, incredible product visibility and maximum space to apply own branding SKOPE-connect app control and convenience – including “hush mode” for quiet running, HACCP recording and more High impact, dimmable, shelf lighting and glass sides for maximum viewing Ticket strips fitted to shelves as standard Built in night blind with energy saving mode Bottom-mounted interchangeable modular cartridge for quicker, safer servicing Best suited to: Quick Service Restaurants, Convenience / Petrol / Supermarkets, Hospitality / Venues, Accommodation, Schools Dimensions: 1272 W x 836 D x 2019 (Low Sign) 2204 (High Sign) H (mm) Door Type: No Door Shelves: 4 x adjustable height flat or angled shelves & 1 x fixed in place flat or angled bottom shelf Material: Powdercoated galvanised metal or stainless steel Gross Volume (Litres): 1071 Total Floor Area (m2): 1.07 Weight (kg): 290 Refrigeration Unit: Self-Contained Temperature Range: -1 to +5 Max Ambient Temperature: 25 Refrigerant: R290 GEMS Class: 3M1 GEMS Energy Consumption (kWh/24h): 22.4 GEMS Annual Running Costs: $2453 (@ $0.30/kWh) kW: 1.39 Current Draw (Amps): 5.8 Noise Measurement (dB): ​​71​ (adjustable to 67 with SKOPE-connect Hush Mode)​ Interior Lighting: 5 × 7.5 W LED shelf lights Sign Lighting: 7.5 W LED sign light Refrigeration System: Removable cartridge Power Cord: 3 m power cord with 3-pin, 10 amp plug Power Supply: 220-240 Volts ac, 50 Hz, single phase supply Product Dimensions: 1272(W) x 2019(H) x 836(D)mmOptions Available: Contact Us for more Information

Read more less
