Description

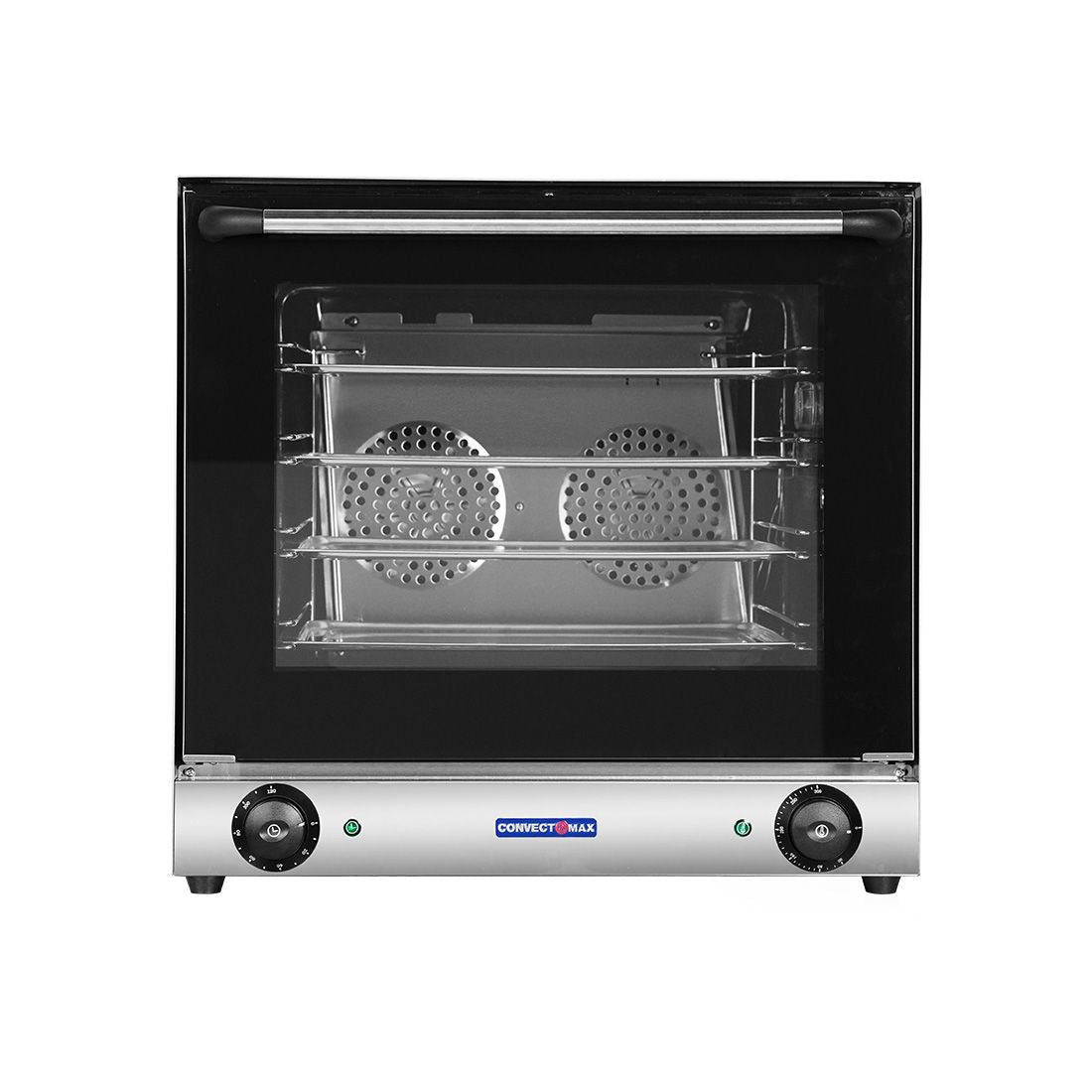

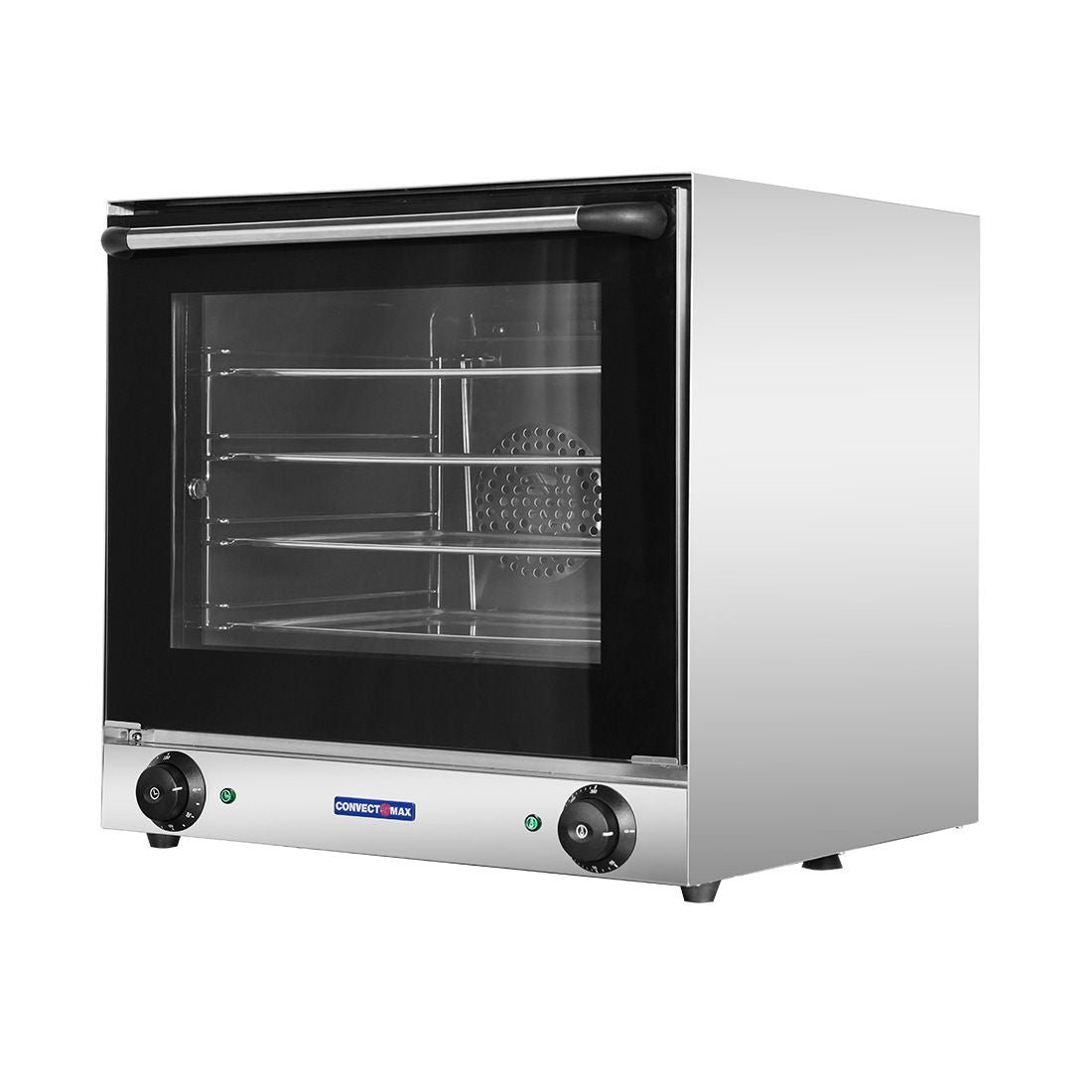

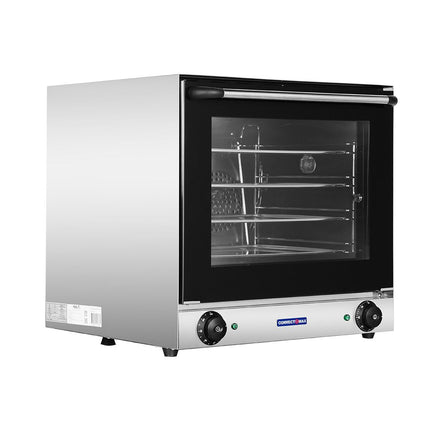

The ConvectMax YXD-1AE is a benchtop electric convection oven that bakes, roasts and reheats across a 50-300°C range using two fans for even heat distribution in a compact stainless steel body.
Why operators choose the ConvectMax YXD-1AE
-
Twin convection fans — circulate heat evenly across all four trays for consistent bakes and reheats.
-
4-tray capacity — holds four 435x315mm aluminium trays, enough throughput for a cafe or small kitchen.
-
Compact benchtop footprint — 595mm wide and 530mm deep, it fits snugly on a bench without dominating the line.
-
Simple manual controls — two knobs for temperature and timer keep operation fast for any staff member.
-
Standard 10A power — runs on a regular 240V single-phase 10A outlet, no special wiring needed.
Specifications
| Brand |
ConvectMax |
| Model / MPN |
YXD-1AE |
| Type |
Convection Oven |
| Power Type |
Electric |
| Power |
240V; 2.4kW; 10A |
| Capacity |
4 x 435x315mm trays |
| Temperature Range |
50-300°C |
| Controls |
Manual (2 knobs) |
| Material |
Stainless Steel |

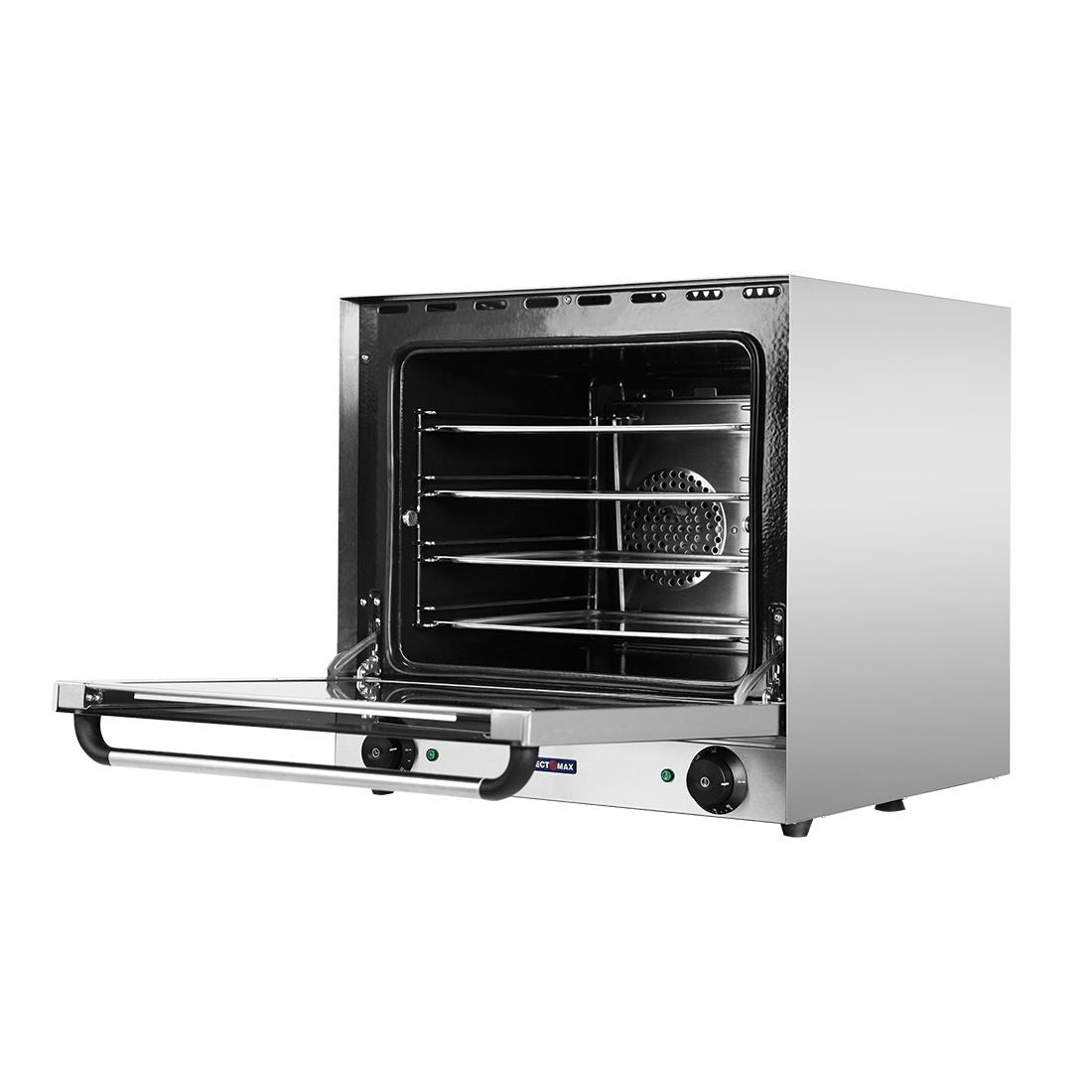

| Door |
Glass, opens forward and down |
| External Dimensions |
595(W) x 530(D) x 570(H)mm |
| Net Weight |
38kg |
| Warranty |
1 Year Parts and Labour |
| Country of Manufacture |
China |
Venue suitability: Suited to cafes, sandwich bars, bakeries and small commercial kitchens that need reliable convection baking without a full-size oven. Browse the full range of Convection Ovens or see more from ConvectMax to compare capacities.
Installation & delivery: Plugs into a standard 240V 10A single-phase outlet — no special installation required. Dispatched Australia-wide.
Frequently asked questions
How many trays does the ConvectMax YXD-1AE hold? It holds four 435 x 315mm aluminium trays, which are included.
What temperature range does it reach? The oven operates from 50°C to 300°C, controlled by a single thermostat knob.
What power supply does the YXD-1AE need? It runs on 240V single-phase at 2.4kW, drawing 10A from a standard outlet.
What are the external dimensions? The oven measures 595mm wide, 530mm deep and 570mm high, and weighs 38kg.
Does it come with a warranty? Yes — it carries a 1 year parts and labour warranty.
SKU: YXD-1AE
In Stock
