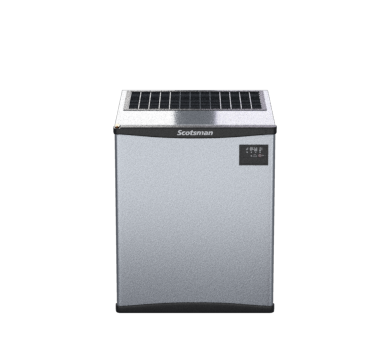

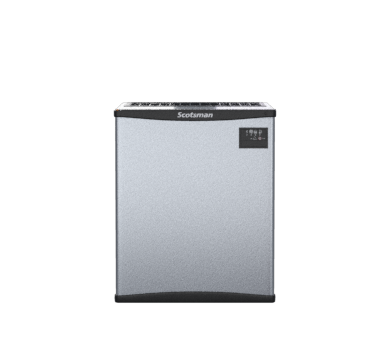

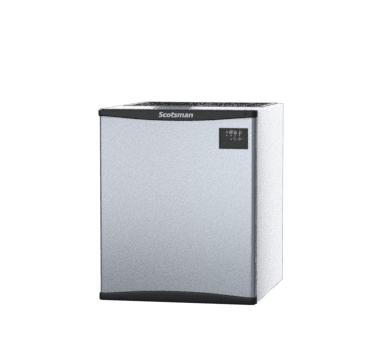

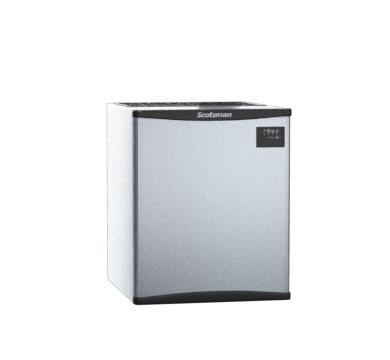

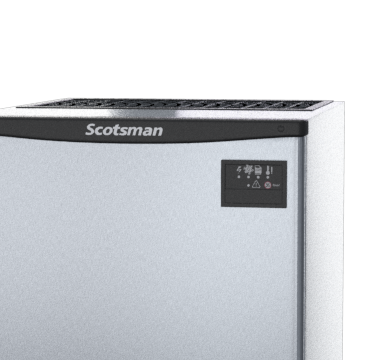

Scotsman NXW L 707 AS OX - 280kg - Modular Dice Ice Maker

Description

Dimensions
W: 565mm D: 640mm H: 683mm

Packed Weight: 86kg
Product Features
  • Head only Ice maker
  • 280kg daily production rate
  • W 28mm x D 22mm x H 28mm, 15g ice cubes
  • Air cooled version
  • Agion Technology resists microbe's growth and odours development to produce pure, clear and transparent ice cubes
  • EcoX hydrocarbons R290 refrigerant gas
  • XSafe - Natural Sanitation System
  • Vertical evaporator spray-system technology
  • Top air discharge - suitable for narrown space installation
  • Front evaporator access for easy servicing
  • One touch button for easy cleaning
  • T304 grade stainless steel exterior
  • Auto-alert indicator lights to show operation status and maintenance
  • Requires storage bin model SB 293, NB 193, NB 393, NB 530 with CBT 30 52 AMCD cover (required cover when used with SB 293, NB 393, NB 530)
  • Includes removable air filter, water & drain hose

All Ice machines MUST be maintained to ensure high performance.

The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.

This maintains the quality of the ice shape and thickness.

This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance.

If your ice machine is not maintained, your warranty may be void.

6 Monthly Maintenance Program

  • Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler.
  • Sanitise water reservoir, distribution tubes, and bin interior.
  • Clean and flush condenser coils (air-cooled units).
  • Inspect condenser fan motor and blades.
  • Check inlet water valve, float, and filters for correct operation.
  • Verify ice thickness probe or sensor calibration.
  • Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary.
  • Test compressor amperage and general performance.
  • Inspect water pump operation and clean pump housing.
  • Check harvest cycle operation (heater or hot gas valve).
  • Inspect electrical connections, relays, and contactors.
  • Replace inline water filter cartridge.
Product form

ScotsmanSKU: NXW L 707 AS OX In Stock

$6,707.36 $9,064.00

Excl. GST Incl. GST
Prices exclude GST
Free pickup in our shop(s)
    • Delivery Australia-wide, Tracking Included

    Guaranteed Safe Checkout

    • Visa
    • Mastercard
    • American Express
    • PayPal
    • Apple Pay
    • Shop Pay
    • Google Pay

    From $12.16/day

    Apply Now

    Specifications
    Brand Scotsman
    MPN NXW L 707 AS OX
    Product Dimensions 565(W) x 683(H) x 640(D)mm
    Warranty 2 year parts and labour
