Description

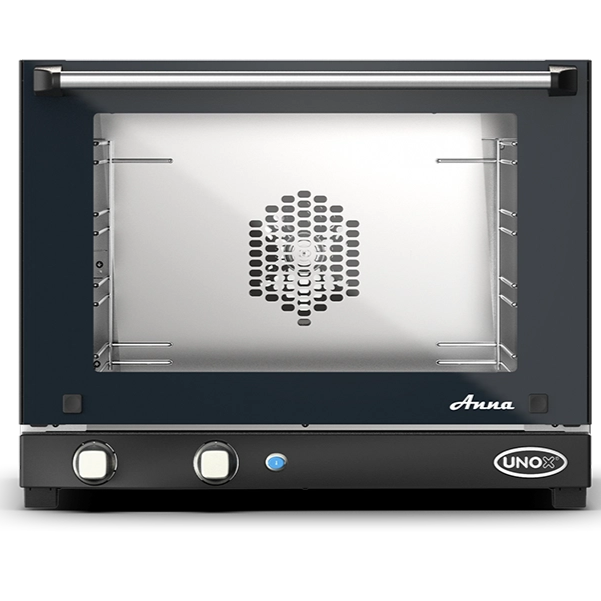

The UNOX XF023-AS is a compact LineMicro “Anna” electric convection oven built to bake-off frozen bakery and pastry products and support simple confectionery work in tight commercial spaces. It holds four 460x330mm trays and uses UNOX AIR.Plus airflow for even results across every shelf.
Why operators choose the XF023-AS
- Four 460x330mm trays in a benchtop footprint – ideal where space is limited
- AIR.Plus fan-forced airflow for uniform baking on every tray
- DRY.Plus rapidly extracts humidity from the chamber for crisp, well-formed crusts
- AISI 430 stainless cooking chamber with rounded edges and double-glass door
- Simple manual knob control with 80–260°C range and chamber halogen lighting
Specifications
| Brand |
UNOX |
| Model / MPN |
XF023-AS |
| Type |
Convection Oven (LineMicro “Anna”) |
| Tray capacity |
4 trays, 460x330mm |
| Control |
Manual (knob) |
| Temperature range |
80°C – 260°C |
| Humidity |
DRY.Plus humidity extraction |
| Airflow |
AIR.Plus fan-forced |
| Cooking chamber |
AISI 430 stainless steel, double-glass door, halogen lighting |
| Door |
Drop-down |
| Electric power |
2.4 kW |
| Power supply |
240V 1N~, 50Hz |
| Width |
600 mm |
| Depth |
588 mm |
| Height |
472 mm |
| Net weight |
22 kg |
| Warranty |
12 months parts & labour |
Venue suitability: A strong fit for cafes, bakeries, convenience stores and small kitchens that bake-off frozen pastries, croissants and breads in modest volumes without committing bench space to a full-size oven. Browse the full convection ovens range or the wider commercial ovens category to compare capacities.
Installation & delivery: Plugs into a standard single-phase 240V supply. Dispatched Australia-wide.
Frequently asked questions
How many trays does the UNOX XF023-AS hold? It holds four 460x330mm trays.
What power supply does it need? A standard single-phase 240V 1N~ 50Hz supply; rated electric power is 2.4 kW.
What temperature range does it reach? The manual control sets chamber temperature from 80°C to 260°C.
Does it manage humidity? Yes – UNOX DRY.Plus rapidly extracts humidity from the chamber for crisp, well-formed baked goods.
What is the cooking chamber made of? AISI 430 stainless steel with rounded edges and a double-glass door.
