Dishwasher Single Sink

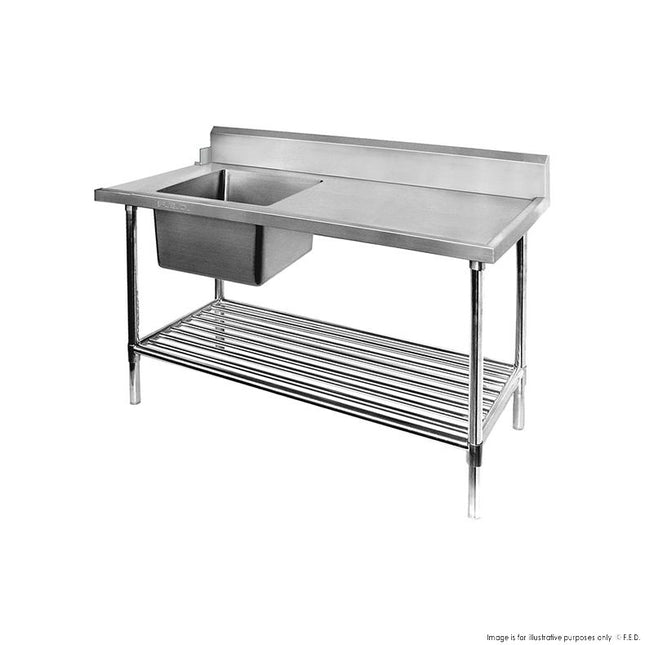

The Modular Systems SSBD7-1500L/A is a 1500mm stainless steel dishwasher inlet bench with a single sink that provides a hygienic pre-rinse and scrape station on the inlet side of a commercial dishwasher. The sink bowl sits on the left when facing the bench, placing soiled ware at the infeed while the clear right-hand outlet area receives clean loads from the machine. Why operators choose the SSBD7-1500L/A 304 SUS (18/8) benchtop — food-grade stainless with XPS board liner and U-channel reinforcements for lasting rigidity under continuous service loads. Left-inlet single bowl configuration — 450W × 450D × 300H mm fully-welded bowl, polished inside and out, with 90mm drain and 15mm wet edge to contain runoff. Integrated splashback — 150mm-high, 40mm-thick stainless steel splashback with bevelled edges and fully enclosed construction to protect walls and simplify cleaning. Flat-packed for easy delivery — arrives with instruction manual and tools for quick, simple site assembly; four adjustable legs with polished disc feet allow levelling on uneven floors. Undershelf included — tubular stainless steel undershelf provides additional storage and structural bracing; castor kits available separately. Specifications Brand Modular Systems Model / MPN SSBD7-1500L/A Type Dishwasher Inlet Bench with Single Sink Width 1500 mm Depth 700 mm Height 900 mm Product Dimensions 1500(W) × 700(D) × 900(H) mm Packed Dimensions 770(W) × 1570(D) × 530(H) mm Net Weight 39.25 kg Sink Bowl Size 450(W) × 450(D) × 300(H) mm Drain Hole 90 mm diameter Wet Edge 15 mm Dishwasher Side Left inlet (sink on left when facing the bench) Splashback 150 mm high × 40 mm thick, stainless steel, bevelled, fully enclosed Benchtop Material 304 Stainless Steel (SUS 18/8), 1.2 mm gauge Legs 1.2 mm S/S, 42 mm diameter, with adjustable polished disc feet Material Stainless Steel (304) Warranty 2 Years Parts Only Power Required None Venue suitability: Suitable for any commercial kitchen requiring a structured dishwashing workflow — restaurants, cafes, catering operations, aged-care facilities, hotels, and cooking schools. The 1500mm footprint balances inlet staging capacity with floor space efficiency in mid-sized kitchens. Pairs with dishwasher outlet benches to complete the pass-through circuit. Explore the full range of Dishwasher Inlet Sinks & Outlet Benches or browse all Modular Systems stainless steel fabrications. Installation & delivery: Arrives flat-packed with assembly hardware and instruction manual — designed for quick on-site setup. Four fully adjustable feet allow levelling on uneven surfaces. Dispatched Australia-wide. Frequently asked questions What does 'left inlet' mean?When standing in front of the bench, the sink bowl and dishwasher inlet are positioned on the left side. Soiled items are scraped and rinsed in the sink, then fed left-to-right into the dishwasher. If your dishwasher inlet is on the right, you need a right-inlet bench (SSBD7-1500R/A). What size is the sink bowl?The bowl measures 450mm wide × 450mm deep × 300mm high, with a 90mm diameter drain hole. It is fully welded and polished inside and out for hygienic cleaning. Does the bench include an undershelf?Yes. A tubular stainless steel undershelf is included with four legs. Castor kits are available separately if mobility is required. What stainless steel grade is used?The benchtop is SUS304 (18/8) at 1.2mm gauge, lined with XPS board for rigidity. Legs and splashback are also 1.2mm stainless steel. 304 grade provides good corrosion resistance in commercial kitchen environments. Is assembly required?Yes. The bench is supplied flat-packed for ease of transport and includes all required tools and an instruction manual. Assembly is straightforward and designed for quick setup on-site.

Read more less

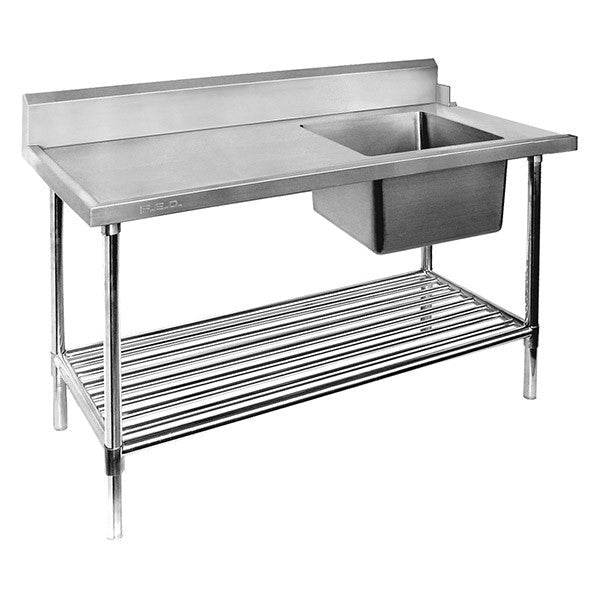

The Modular Systems SSBD7-1200R/A is a 1200mm right-inlet single-sink dishwasher bench designed to integrate with commercial dishwashers, providing a pre-rinse and soiled-dish staging station where the sink and dishwasher inlet are positioned on the right side when facing the bench.Why operators choose the SSBD7-1200R/A Right-inlet configuration — sink and dishwasher connection on the right, keeping soiled-dish flow efficient in right-to-left kitchen layouts. 304-grade (18/8) SUS304 benchtop — 1.2mm stainless steel lined with 15mm XPS board and an S/S panel, plus U-channel reinforcements underneath for a rigid, non-flex surface. Fully welded, polished sink bowl — 450mm W × 450mm D × 300mm H bowl with a 90mm Ø drain hole, polished inside and out; 15mm wet edge prevents spill run-off. 150mm splashback included — stainless steel backed, 40mm thick, bevelled and fully enclosed, protecting the wall behind the bench. Flat-pack assembly with instruction manual & tools included — reduces freight damage and speeds up installation; adjustable stainless polished disc feet level the bench on uneven floors. Specifications Brand Modular Systems Model / MPN SSBD7-1200R/A Type Dishwasher Inlet Bench — Right Inlet, Single Sink Width 1200mm Depth 700mm Height 900mm Sink Bowl Size 450mm W × 450mm D × 300mm H Drain Hole 90mm Ø Wet Edge 15mm Benchtop Material 1.2mm SUS304 (18/8) stainless steel, XPS board lined Legs 4 × 1.2mm S/S, 42mm Ø, adjustable polished disc feet Splashback Stainless steel, 150mm high, 40mm thick, bevelled, fully enclosed Net Weight 32.5 kg Packed Dimensions 1270(W) × 770(D) × 530(H)mm Country of Manufacture China Warranty 2 Years Parts Only Venue suitability: Suited to commercial kitchens, restaurants, cafés, catering operations, aged-care facilities, and school canteens requiring a compact 1200mm dishwasher inlet station. Browse the full range in Dishwasher Inlet Sinks & Outlet Benches or explore all Modular Systems stainless steel equipment.Installation & delivery: Supplied flat-packed with instruction manual and assembly tools. Four fully adjustable stainless disc feet for levelling. Castor kits available separately (lockable). Dispatched Australia-wide.Frequently asked questionsWhat does “right inlet” mean?When facing the bench, the sink bowl and dishwasher connection point are on the right-hand side. This suits kitchens where dirty dishes arrive from the left and the dishwasher sits to the right of the bench.What are the sink bowl dimensions?The bowl measures 450mm wide × 450mm deep × 300mm high with a 90mm Ø drain hole. Bowls are fully welded and polished inside and out.Is a splashback included?Yes. A 150mm high, 40mm thick bevelled stainless steel splashback is included, fully enclosed and wall-ready.How does the bench arrive?The SSBD7-1200R/A is supplied flat-packed (packed dimensions 1270 × 770 × 530mm, approx. 46kg packed) with an instruction manual and all required assembly tools.Can I add castors?Castor kits (lockable) are available as an optional accessory. Contact us to order alongside the bench.

Read more less

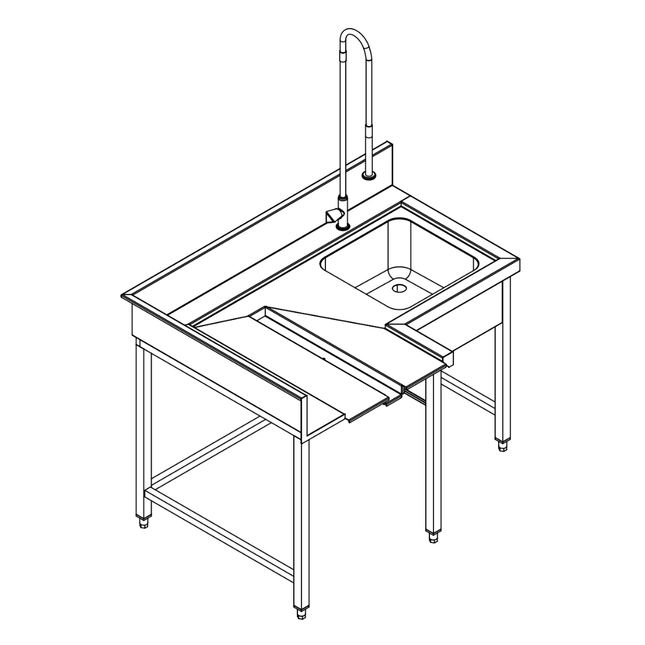

Fagor Pre-Rinsing Sink Bench w/ Introductor of Baskets MCFD-1000ID Robust, reliable and of great value, our multipurpose kitchen equipment provides a superior solution for every need and space! Designed for 500mm x 500mm dishwashing baskets, this Pre-Rinsing Sink Bench offers quick installation and easy connection to the dishwasher.This is a fast selling purchase for any prospective restaurant or café owner who operates a medium to large establishment. Key Features: Prewashing table with introductor of baskets in corner to be placed at the left Suitable for FAGOR CCO RACK CONVEYER DISHWASHERS Wide range of entry/exit and prewashing tables, to provide solutions for every need and space Designed for 500mm x 500mm dishwashing baskets Quick installation and easy connection to the dishwasher No holes on the surface Constructed in AISI-304 stainless steel (18/10) 40mm x 40mm square tubular legs in AISI-304 stainless, adjustable in height Deep anti-drip profiles completely folded with lower edge for safe and easy cleaning To be placed on the right Angle table prepared to connect the basket loader to the dishwasher Element to introduce the baskets with the movement of the advancement system of the conveyor Flexible shower tap Additional information: Orientation: To be placed at the LEFT Rear Guard: 200mm Sink 450mm x 450mm Sink Area: 1,400mm L x 700 mm W Loader Area: 950mm L x 800mm W Water inlet diameter: 3/4 Drain 1 diameter: 30X25 Warranty: 2 Years Parts and LabourPower:

Read more less

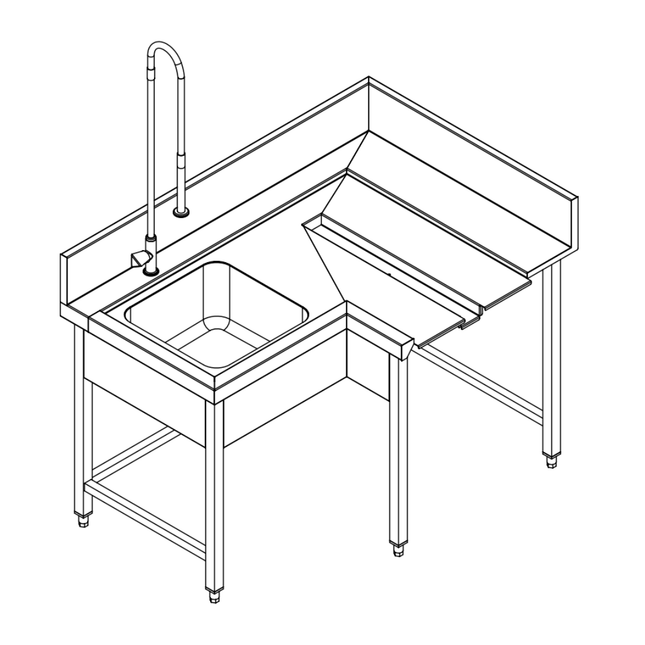

Fagor Pre-Rinsing Sink Bench w/ Introductor of Baskets MCFD-1000I Robust, reliable and of great value, our multipurpose kitchen equipment provides a superior solution for every need and space! Designed for 500mm x 500mm dishwashing baskets, this Pre-Rinsing Sink Bench offers quick installation and easy connection to the dishwasher.This is a fast selling purchase for any prospective restaurant or café owner who operates a medium to large establishment. Key Features: Prewashing table with introductor of baskets in corner to be placed at right Suitable for FAGOR CCO RACK CONVEYER DISHWASHERS Wide range of entry/exit and prewashing tables, to provide solutions for every need and space Designed for 500mm x 500mm dishwashing baskets Quick installation and easy connection to the dishwasher No holes on the surface Constructed in AISI-304 stainless steel (18/10) 40mm x 40mm square tubular legs in AISI-304 stainless, adjustable in height Deep anti-drip profiles completely folded with lower edge for safe and easy cleaning To be placed on the right Angle table prepared to connect the basket loader to the dishwasher Element to introduce the baskets with the movement of the advancement system of the conveyor Flexible shower tap Additional information: Rear Guard: 200mm Sink 450mm x 450mm Sink Area: 1,400mm L x 700 mm W Loader Area: 950mm L x 800mm W Water inlet diameter: 3/4 Drain 1 diameter: 30X25 Warranty: 2 Years Parts and LabourPower:

Read more less

Designed to attach to the right hand side of your dishwasher, this inlet table features a built in sink helping to keep your kitchen clean, organised and efficient. Made from incredibly robust stainless steel, they are built to withstand the rigours of a busy professional kitchen and have been designed to provide you with a space to rinse dirty items, prepping them ready for the next dishwasher load. Product features Dimensions 1800(H) x 700(W) x 960(D)mm Material stainless steel Warranty 1 Year Weight 34kg Sink Dimensions (L)450 x (W)610 x (D)300mm St/St 304 worktop St/St 201 frame & legs St/St 304 sink 1.2 gauge

Read more less
