Passthrough dishwashers (hood-type dishwashers) for Australian restaurants, pubs, clubs and catering kitchens — high-throughput warewashers where racks slide in at bench height, the hood pulls down, and a full rack of plates comes out clean in a one-to-two-minute cycle. This range is part of our wider commercial dishwasher range; if you're washing smaller volumes under a bench, compare underbench commercial dishwashers instead.
Who passthrough dishwashers are for
A passthrough is the standard dish machine for venues washing beyond what an underbench can keep up with — roughly the point where you're feeding plates continuously through service rather than in batches. Restaurants and pubs run them at the dish pit between inlet and outlet benches; clubs and function venues rely on the straight-through rack flow to clear hundreds of covers; commercial kitchens spec them because staff load at bench height instead of stooping to an undercounter door.
What's in scope
Hood-type passthrough dishwashers
The classic pull-down-hood machine taking standard 500mm racks, from value workhorses through to premium European warewashers with heat-recovery options.
Pot and utensil passthrough washers
Heavier machines with taller hood clearance for pots, trays and utensils that won't fit a standard rack.
Corner and straight-through configurations
Passthrough machines work in a straight line or as a corner station depending on your bench layout — the machine itself is the same; the inlet and outlet benches set the flow.
How to choose a passthrough dishwasher in three steps
Picking the right passthrough dishwasher comes down to three questions, in order.
Step 1 — Match rack rate to your covers
Check the racks-per-hour rating against your peak service: count how many racks of plates, glasses and cutlery your busiest hour produces and leave headroom. Cycle times around one to two minutes per rack are typical across the range.
Step 2 — Plan the bench flow
A passthrough needs an inlet bench (usually with a sink for scraping and pre-rinsing) and an outlet bench for clean racks. Decide straight-through or corner flow from your room shape, and pair the machine with matching dishwasher inlet sinks and outlet benches.
Step 3 — Check power, water and extraction
Most passthrough machines need three-phase power and a compliant water connection, and the steam plume on hood lift may need mechanical extraction depending on your local requirements. Confirm site services before ordering — it's the most common install delay.
Venue fit
Pubs and mid-size restaurants typically run one hood machine between benches at the dish pit; clubs, hotels and caterers step up to higher rack rates or heat-recovery models to cut energy cost per rack. Browse by brand — ESWOOD and Fagor both feature in this range — and kit the pit out with dishwasher racks, stands and accessories.
A passthrough (or hood-type) dishwasher is a commercial dish machine where racks slide in at bench height from an inlet bench, a hood pulls down over the rack for the wash cycle, and the clean rack pushes through to an outlet bench. The straight-through flow and short cycles make it the standard machine for venues washing continuously through service.
What's the difference between a passthrough and an underbench dishwasher?
An underbench dishwasher is a front-loading machine that sits below the bench and suits lower volumes; a passthrough loads at bench height and processes racks continuously with a faster workflow, since staff never bend or break the wash line. If your kitchen washes in constant streams rather than batches, the passthrough earns its bench space.
How many racks per hour does a passthrough dishwasher wash?
Rack rates vary by model and cycle setting — typical hood machines run cycles of roughly one to two minutes per 500mm rack, and each product page lists the rated racks per hour. Size against your busiest hour with headroom rather than your average day.
Do I need special benches for a passthrough dishwasher?
Yes — a passthrough is designed to sit between an inlet bench (where dirty racks are scraped, pre-rinsed and queued, usually with a sink) and an outlet bench for clean racks. Matching inlet and outlet sink benches are available to suit straight-through or corner layouts.
What power and water does a passthrough dishwasher need?
Most passthrough machines require a three-phase electrical connection plus compliant hot or cold water supply and drainage, with exact requirements listed per model. Confirm your site's power, water and any extraction requirements with your electrician and plumber before ordering, as services are the most common cause of install delays.
Do you deliver passthrough dishwashers across Australia?
Yes. Commercial Kitchen Store ships nationwide — Brisbane, the Gold Coast and every other metro and regional area — with Australian-based phone support on 1300 111 901 to help spec the machine and benches. For cover details, see our warranty and service information.
Benefits
4 wash cycles
Built-in detergent & rinse aid dispenser
Door safety switch stops machine if door opened
Thermostop system ensures 100% sanitisation
Drain pump to allow for waste installation anywhere
Commercial grade construction
Designed in Australia, Made in Italy
Specifications
Wash tank capacity 15 ltr
Rinse water consumption (per cycle) 2.5 ltr
Rinsing temp (approx) 80-85 °C
Rack size 500 x 500 mm
Tallest washable glass 45cm
Water connection 3/4″ hose

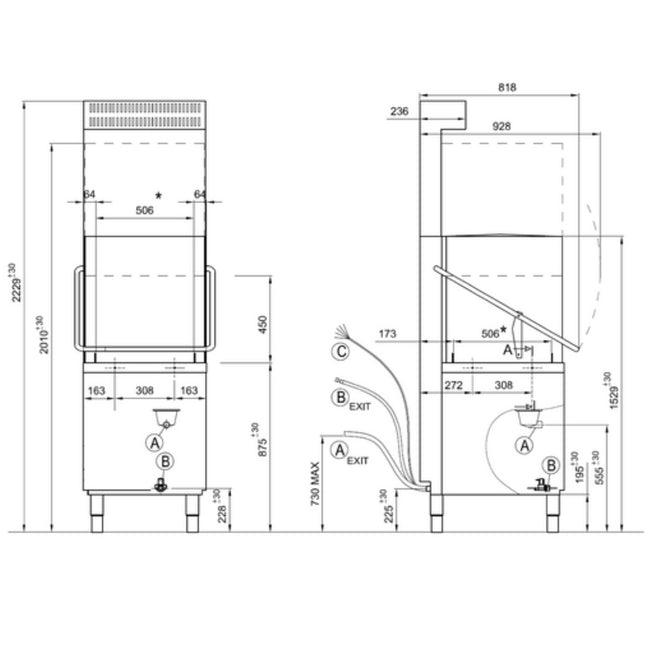

Dimensions Width 724 mm x Depth 818× High 1529 mm
1 Year Warranty
Weight
550 kg
Power
400V; 8.7 kW/16 A
Asber Tech Line Pass-through Hood Type Dishwasher - GE-H500DD
Key Features:
Electronic control panel.
3 washing cycle of 90” / 120” / 180”
40 Baskets / hour
Continuous cycle up to the manual stop.
Tank capacity: 45L / Heating power: 4.5 kw.
Boiler capacity: 7L / Heating power: 6.0 kw.
Wash pump power: 0.6 kw.
Rinsing consumption: 2.7L/rinse.
Upper and lower washing and rinsing arms.
Stainless-steel washing arms.
Thermostop function.
Wash tank and boiler temperature display.
Built-in rinse aid dispenser and detergent dispenser.
Anti backflow valve fitted.
Stainless steel filtering system.
Safety thermostat in washing tank and boiler.
Temperature adjustment: Wash 60 ºC and rinse 85 ºC.
Accessories supplied: 1 basket, 1 basket and 2 baskets for cutlery
Dimensions (Door Closed): 575mm W x 688mm D x 1440mm H
Dimensions (Door Open): 575mm W x 688mm D x 1940mm H
Door Clearance: 420mm
Two Years Parts and Labour Warranty
Power: 415; 11.1kW/3~N

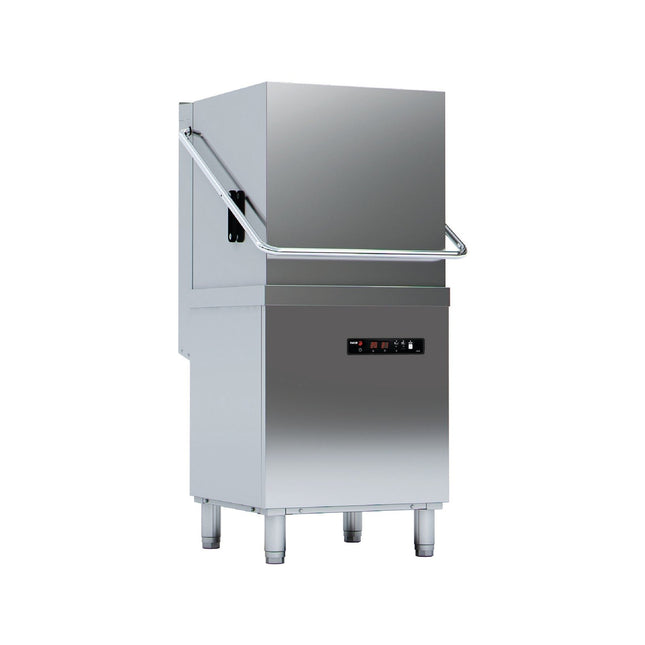

The Fagor CO-142BDD is a passthrough (hood-type) commercial dishwasher from the EVO-Concept range, built for high-volume warewashing in restaurants, pubs and catering kitchens. The counterbalanced hood lifts to load a basket, lowers to wash, and lifts again to unload — a fast, ergonomic cycle at a comfortable working height.
Why operators choose the CO-142BDD
65 baskets per hour — up to 1170 dishes/hour to clear peak service without a backlog.
Three selectable wash cycles (55 / 75 / 120 seconds) — match cycle time to soil level and throughput.
Low water use at 2.4 litres per rinse — the EFFI-RINSE system rinses cleanly even on low-pressure mains.
Double rotating AISI-304 wash and rinse arms — full coverage and corrosion resistance for intensive daily use.
440mm clearance and 33L wash tank — handles trays, large plates and tall glassware.
WaterMark approved and convertible to single-phase — compliant and flexible for varied site supply.
Specifications
Brand
Fagor
Model / MPN
CO-142BDD
Type
Passthrough (Hood-Type) Dishwasher
Throughput
65 baskets/hour — 1170 dishes/hour
Wash Cycles
55 / 75 / 120 seconds
Max Ware Height (Clearance)
440 mm
Wash Tank Capacity
33 litres
Boiler Heating Power
6 kW
Boiler Capacity
9 litres
Water Consumption
2.4 litres/rinse
Wash / Rinse Temperature
60°C wash / 90°C rinse
Wash & Rinse System
Double rotating arms, AISI-304 stainless steel
Power
11.1 kW, 415V, 3 phase + Neutral, 50Hz (convertible to single-phase)
Material
Stainless Steel
Dimensions (W x D x H)
630 x 750 x 1465 mm
Certification
WaterMark approved
Country of Manufacture
Spain
Warranty
2 Years Parts and Labour
Venue suitability: Suited to busy restaurants, hotels, pubs, clubs and catering operations that need consistent high-throughput warewashing at a comfortable standing height. The low 2.4L/rinse water use and EFFI-RINSE design make it a strong fit for sites with low mains water pressure. Browse more options in our Passthrough Dishwashers range or see the full Fagor line-up.
Installation & delivery: Requires a 415V three-phase supply (convertible to single-phase) and a WaterMark-compliant water connection. Dispatched Australia-wide.
Frequently asked questions
How many baskets can the Fagor CO-142BDD wash per hour? The CO-142BDD washes up to 65 baskets per hour, equivalent to around 1170 dishes per hour.
What wash cycles does the CO-142BDD offer? It offers three selectable cycles of 55, 75 and 120 seconds so you can match cycle time to soil level and service speed.
How much water does the CO-142BDD use per rinse? It uses 2.4 litres per rinse, and the EFFI-RINSE system rinses effectively even on low-pressure mains water.
What power supply does the CO-142BDD need? It runs on 11.1 kW, 415V three-phase plus neutral at 50Hz, and can be converted to single-phase.
Is the Fagor CO-142BDD covered by warranty? Yes — it comes with 2 years parts and labour warranty.

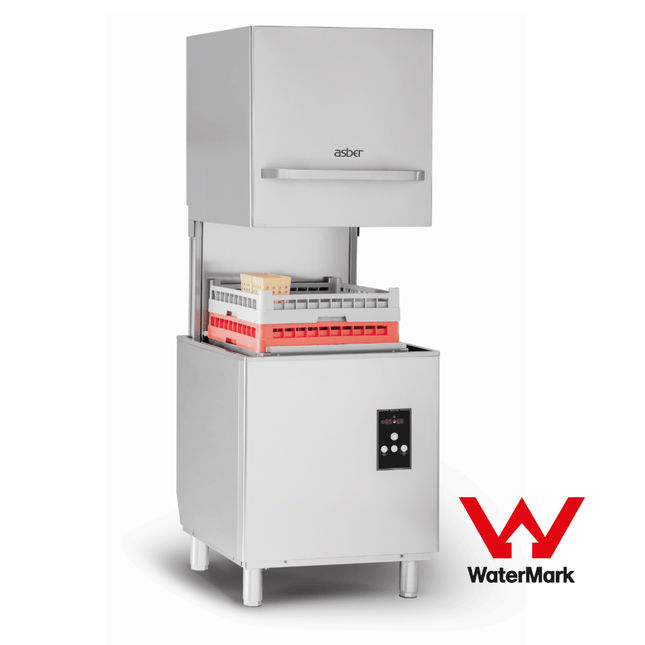

Asber Tech Line Pass-through Hood Type Dishwasher - GE-H500BDD
Key Features
Electronic control panel.
3 washing cycles of 90” / 120” / 180”
40 Baskets/hour
Continuous cycle until manual stop.
Tank capacity: 45L / Heating power: 4.5 kW.
Boiler capacity: 7L / Heating power: 6.0 kW.
Wash pump power: 0.6 kW.
Rinsing consumption: 2.7L/rinse.
Upper and lower washing and rinsing arms.
Stainless steel washing arms.
Thermostop function.
Wash tank and boiler temperature display.
Built-in rinse aid dispenser and detergent dispenser.
Anti-backflow valve fitted.
Stainless steel filtering system.
Safety thermostat in the washing tank and the boiler.
Temperature adjustment: Wash at 60 ºC and rinse at 85 ºC.
Accessories supplied: 1 basket, 1 basket, and 2 baskets for cutlery
Door Clearance: 420mm
Watermark certified product sticker
This unit has a Drain Pump
2 Years Parts and Labour Warranty

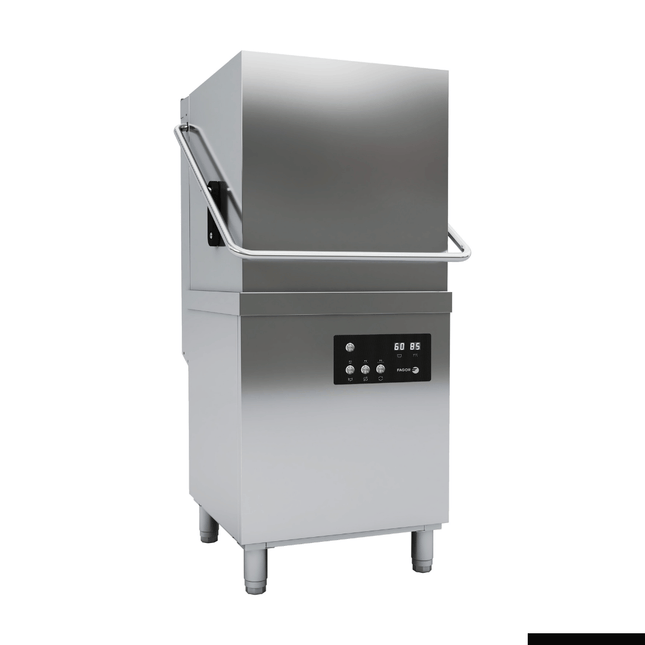

Fagor iNova Concept Pass-Through Dishwasher - WHC-502TBD
iNova Concept high-performance hood-type pass-through dishwasher designed for fast, efficient commercial kitchens. Suitable for a 500x500 basket with mains pressure, LED displays, drain pump and detergent dispenser.
Key Features
Hourly production: 40 baskets/hour
Clearance (max ware height): 450mm
Electro-Mechanical Controls with Robust Back-Lit Pushbuttons
Wash cycles: 55”/75”/120
Stainless steel construction
Duo-KLIP Wash/rinse arms
Wash pump, 750W each
Drain pump: 100W drainage cycle
Wash Tank with 3 kW heating power
Tank capacity: 33 litres
Boiler heating power: 6 kW
Boiler capacity: 9 litres
Water consumption: 2.2 litres/cycle
Thermostatic temperature control: washing at 60 ℃ and rinsing at 85 ℃
Two-digit LED displays
Hydraulic rinse aid dispenser
Dual-flow wash pump with soft-start
Double-stage filtration system
Dual-flow wash pumps
Volumetric rinse
A magnetic micro switch to stop the cycle in case of accidental opening of the hood.
Adjustable legs
Supplied with 1 glass basket, 1 plate basket, and 1 cutlery container
Watermark approved
Temperature control by electronic probes
i-ERROR DIAGNOSIS: Error identification on screen
Drain pump
Hydraulic rinse aid dispenser and Peristaltic detergent dispenser
2 Years Parts and Labour Warranty

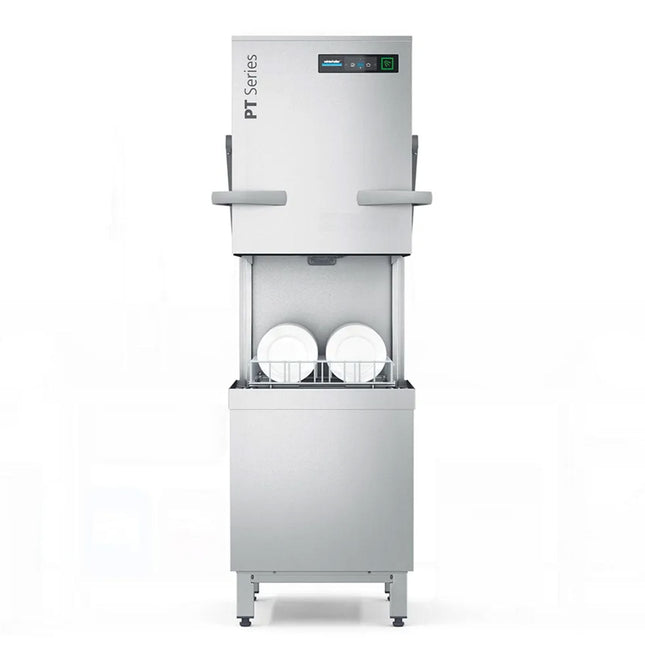

Winterhalter PT-M Pass-Through Dishwasher
The Winterhalter PT-M Pass-Through Dishwasher is built for efficiency, reliability, and cost-effectiveness. Designed for busy commercial kitchens, it provides fast and thorough cleaning while reducing water and energy usage. Available in three sizes, this powerful dishwasher is a must-have for high-demand environments.
Key Features
Smart Touch Display: Simple one-button operation for easy use.
Top & Bottom S-Shaped Wash Fields: Ensures thorough cleaning.
Variopower Washing Pressure Adjustment: Adapts to different washing needs.
Built-in Chemical Pumps: Automatically dispenses detergent and rinse aid.
Rinse Booster Pump: Provides consistent rinse pressure.
Drain Pump: Efficient water drainage.
EnergyLight System: Uses waste water heat recovery for energy efficiency.
Quadruple Filtration System: Ensures clean water for every wash.
Clouding Sensor: Detects and manages water quality.
Connected Wash: Smart connectivity for monitoring and optimization.
Automatic Timer: Schedule start-up and shutdown times.
Optional Features
Automatic Hood System: Reduces manual effort.
Driven Rinse System: Enhances rinsing performance.
EnergyPlus: Uses exhaust air heat recovery to reduce steam and energy costs.
TwinSet: Connects two PT Series machines for higher capacity.
Why Choose the PT Series?
Outstanding Cleaning Performance
Even tough stains and grease are no match for the PT Series, ensuring hygienic and spotless results every time.
Reliable and Durable
Designed for heavy-duty use, the PT Series features high-quality components and advanced technology to ensure long-lasting performance.
Cost-Efficient Operation
With optimized water, energy, and detergent usage, the PT Series keeps running costs low while maintaining high performance.
User-Friendly Design
Simple controls, ergonomic design, and automated features make the PT Series easy to use, reducing staff workload.
Technical Specifications
Clear Entry Height: 440 mm
Dimensions (WxDxH): 635 x 750 x 1585-2060 mm
Rack Dimensions: 500 x 500 mm
Rinse Water Consumption: 2.2L per cycle
Water Connection
Connection Point: 3/4 inch (19mm)
Flow Pressure: Min. 1.0 bar
Flow Rate: 4 L/min
Max Inlet Temperature: 60°C
Wastewater Connection: 23.6 mm
Electrical Specifications
Standard (3 Phase): 415V 3P 50Hz - 20A (9.7kW)
Optional (Higher Power): 415V 3P 50Hz - 25A (11.5kW), 32A (15.7kW)
General Data
Cycle Times: 50/80/110 seconds (adjustable)
Noise Level: 62dB(A)
Tank Capacity: 35L
Weight (Net/Gross): 137/151 kg
Included Accessories
1x 1m Flexible Waste Hose
1x 1m Flexible Water Connection Hose
1x 3-phase Lead
2x 500 x 500 Racks (1x Flat, 1x Plate)
Perfect Balance of Performance and Economy
The Winterhalter PT Pass-Through Dishwasher is designed for efficiency and cost savings. It streamlines the washing process, saving time and resources while delivering consistent and reliable cleaning performance. Built to handle high demands, it reduces water, energy, and detergent usage, making it a cost-effective solution without compromising on quality.
Standard Features
Smart touch display with simple single-button operation
Top & bottom S-shaped wash fields
Variopower washing pressure adjustment
Chemical pumps
Rinse booster pump
Drain pump
Active energy management with EnergyLight waste water heat recovery
Quadruple filtration system
Clouding sensor
Connected Wash technology
Automatic start-up and shut-down timer
Optional Features
Automatic Hood System
Driven rinse system
EnergyPlus: Exhaust air heat recovery to reduce steam and energy costs
TwinSet: Connect two PT Series dishwashers into a twinset
PT Series Product Benefits
First-Class Wash Results
No matter how tough the dirt, the PT Series guarantees certified cleanliness and hygiene. Its powerful warewashing system and quadruple filtration ensure superior cleaning performance.
Reliable Performance
Built with innovative technology and high-quality materials, the PT Series is designed for durability and low maintenance, making it a dependable workhorse in your dishwashing area.
Highly Efficient
The PT Series is designed for optimal efficiency, reducing water, energy, and chemical consumption while ensuring top-quality wash results. Lower operating costs mean higher savings.
Easy to Use
With intuitive controls, ergonomic handling, and user-friendly features, the PT Series makes dishwashing simple and efficient, improving staff productivity and ease of use.
Technical Information
Clear entry height: 440 mm
Dimensions (WxDxH): 735 x 750 x 1585-2060 mm
Rack Size: 500 x 500 mm
Rinse Water Consumption: 2.2L per cycle
Water Connection
Connection Point: 3/4 inch (19mm)
Flow Pressure: Min. 1.0 bar
Flow Rate: 4 L/Min
Max. Inlet Temperature: 60°C
Wastewater Connection: 23.6 mm
Electrical
3 Phase (Standard): 415v 3P 50Hz - 20amp (TCL 9.7Kw)
3 Phase (Optional): 415v 3P 50Hz - 25amp (TCL 11.5Kw), 415v 3P 50Hz - 32amp (TCL 15.7Kw)
General Data
Cycle Times: 50/80/110 Seconds (Adjustable)
Noise Emission: 62dB(A)
Tank Capacity: 35L
Weight (Net/Gross): 142/158 kg
Standard Inclusions
1x 1m Flexible Waste Hose
1x 1m Flexible Water Connection Hose
1x 3-phase Lead
2x 500 x 500 Racks (1x Flat, 1x Plate)
Maximum Efficiency and Optimal Results

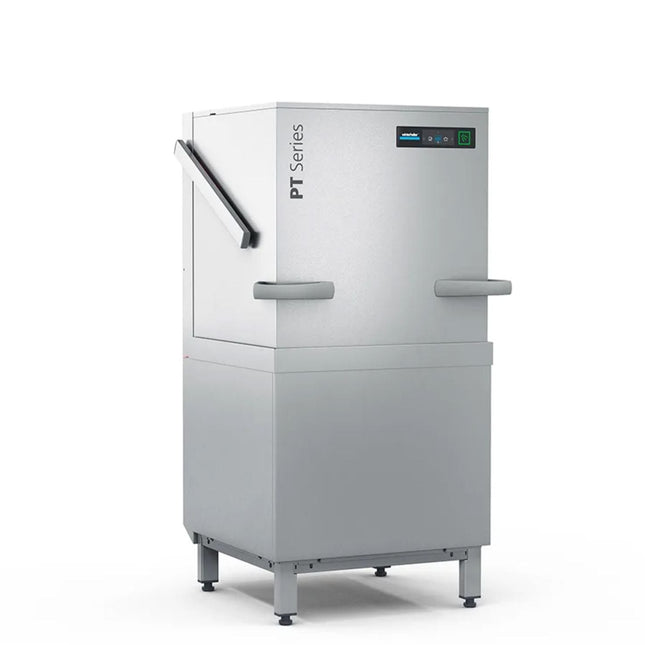

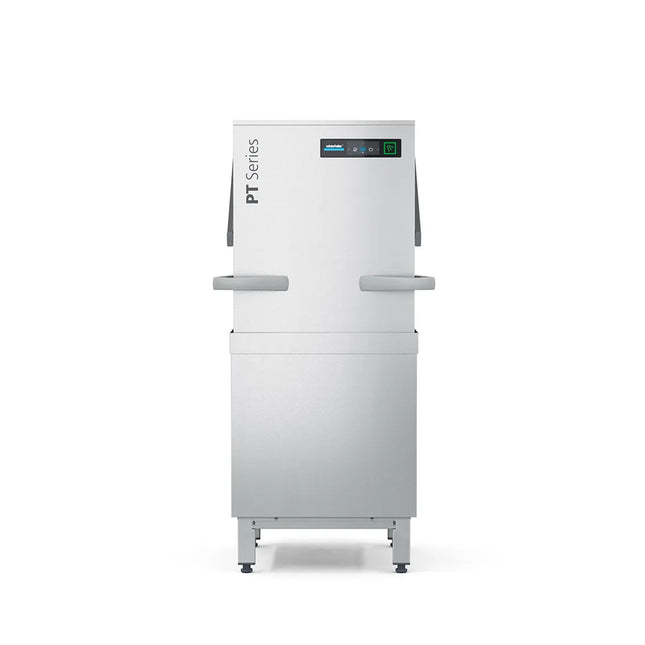

The Winterhalter PT is the heart of every busy kitchen. Designed for peak efficiency, it streamlines the washing process, ensuring fast and reliable cleaning for a wide range of wash items. Simple, economical, and highly effective. Available in two machine sizes, this workhorse is built for demanding kitchens.
Standard Features
Smart touch display with single-button operation
Top & bottom S-shaped wash fields
Variopower washing pressure adjustment
Integrated chemical pumps
Rinse booster pump
Drain pump
EnergyLight waste water heat recovery system
Quadruple filtration system
Clouding sensor
Connected wash technology
Automatic start-up and shut-down timer
Product Benefits
First-Class Wash Results
Removes even the toughest dirt with certified cleanliness and hygiene. The powerful wash system and advanced filtration ensure excellent results.
Absolute Reliability
Built with innovative technology and high-quality materials, the PT Series is designed for long-lasting durability and minimal errors.
Highly Economical
Uses less water, energy, and chemicals, making it a cost-effective choice for commercial kitchens.
Simple to Use
Intuitive operation, ergonomic design, and practical functionality make the PT Series user-friendly for kitchen staff.
Technical Information
Clear entry height: 440 mm
Dimensions (WxDxH): 735 x 750 x 1705-2300 mm
Rack Dimensions: 500 x 500 mm, 500 x 600 mm
Rinse Water Consumption: 2.2L per cycle
Water Connection
Connection Point: 3/4 inch (19mm)
Flow Pressure: Min. 1.0 bar
Flow Rate: 4 L/min
Max. Inlet Temperature: 60°C
Wastewater Connection: 23.6 mm
Electrical Specifications
3 Phase (Standard): 415V 3P 50Hz - 20amp (TCL 9.7Kw)
3 Phase (Optional): 415V 3P 50Hz - 25amp (TCL 11.5Kw), 415V 3P 50Hz - 32amp (TCL 15.7Kw)
General Data
Cycle Times: 50/80/110 Seconds (Adjustable)
Noise Emission: 62dB(A)
Tank Capacity: 35L
Weight (Net/Gross): 172/202 kg
Standard Inclusions
1x 1m Flexible Waste Hose
1x 1m Flexible Water Connection Hose
1x 3-phase Lead
2x 500 x 500 Racks (1x Flat, 1x Plate)
STANDARD FEATURES INCLUDE
counter-balanced lift-up hood with ergonomically designed wrap around handle
durable stainless-steel body construction and wash arms
automatic fill to wash and rinse tanks
high capacity 540-700 pieces
digital wash and rinse temperature controllers and displays
detergent and rinse aid pump
suitable for corner or inline installation
machine starts upon closure of hood
easily removable spray arms and filters
wash and rinse pump fitted as standard
operation interlocked to rinse temperature
Standard accessories1 x plate rack1 x cup rack1 x cutlery container
Wash cycle90 and 120 seconds
Water consumption3.5 litres per cycle
Dimensions (WxDxH)595 x 600 x 1405 mm
STANDARD FEATURES INCLUDE
Digital temperature controller & display
Detergent & Rinse Aid pump
Wash and rinse pump
Drain pump
Wash cycle 90 and 120 seconds
Tank capacity 30 L
Includes:
1 x TR14 plate rack 500 x 500 x 100 (w x d x h)
1 x TR1 cup rack 500 x 500 x 100 (w x d x h)
1 x CB cutlery container
The ESWOOD Dishwasher ES32 is a reliable, high-performance solution designed specifically for the demanding needs of busy commercial kitchens. With its smart, ergonomic design and durable stainless-steel construction, it offers outstanding cleaning efficiency and long-term value. Whether used in a corner setup or inline configuration, the ES32 enhances workflow and ensures thorough, hygienic results every cycle.
STANDARD FEATURES INCLUDE
counter-balanced lift-up hood with ergonomically designed wrap around handle
durable stainless-steel body construction and wash arms
automatic fill to wash and rinse tanks
high capacity 540-700 pieces
digital wash and rinse temperature controllers and displays
detergent and rinse aid pump as standard
suitable for corner or inline installation
machine starts upon closure of hood
easily removable spray arms and filters
wash and rinse pump fitted as standard
operation interlocked to rinse temperature
Standard accessories2 x plate rack1 x cup rack1 x cutlery container
Wash cycle90 and 120 seconds
Water consumption3.5 litres per cycle
Dimensions (WxDxH)595 x 600 x 1405 mm
The ESWOOD Dishwasher ES32 is a trusted choice for commercial venues seeking reliable, high-output washing capabilities. Built to handle the rigorous demands of restaurants, cafés, and catering operations, this commercial kitchen dishwasher combines intelligent design with rugged functionality. As part of your complete lineup of industrial kitchen equipment, it ensures clean, sanitised results shift after shift.
Explore more options in our commercial underbench dishwasher collection to find the right fit for your kitchen needs.
STANDARD FEATURES INCLUDE
Digital temperature controller & display
Detergent & Rinse Aid pump
Wash and rinse pump
Drain pump
Wash cycle 90 and 120 seconds
Tank capacity 30 L
Includes:
2 x TR14 plate rack 500 x 500 x 100 (w x d x h)
1 x TR1 cup rack 500 x 500 x 100 (w x d x h)
1 x CB cutlery container
Power: 3 phase only + N + E
STANDARD FEATURES INCLUDE
counter-balanced lift-up hood with ergonomically designed wrap around handle
durable stainless-steel body construction and wash arms
automatic fill to wash and rinse tanks
digital wash & rinse temperature controllers & displays
1000-Watt wash pump
3 wash programs to match degree of soil
detergent and rinse aid pump as standard
suitable for corner or inline installation
easily removable spray arms and filters
7200-Watt rinse water temperature booster
operation interlocked to rinse temperature
machine starts upon closure of hood or start button
Standard accessories2 x plate rack1 x cup rack1 x cutlery container
Wash cycle60, 90 and 120 seconds
Water consumption4 litres per cycle
Dimensions (WxDxH)645 x 645 x 1490 mm
STANDARD FEATURES INCLUDE
Digital temperature controller & display
Detergent & Rinse Aid pump
Wash and rinse pump
Fitted with Drain Pump
Wash cycle 60, 90 and 120 seconds
Large clearance chamber for items to 400mm
Includes:2 x TR14 plate rack 500 x 500 x 100 (w x d x h)1 x TR1 cup rack 500 x 500 x 100 (w x d x h)2 x CB cutlery containers
Power: 3 phase only N E
STANDARD FEATURES INCLUDE
Chamber opening up to 650 mm clear
Rack size & opening 660 x 610 x 650 mm
Durable stainless steel wash and rinse arms
Independent wash and rinse systems with high volume pumps for powerful wash action
Accepts baking trays and 75 litre garbage bins
Accurate digital temperature displays
Machine starts upon a push of a button
Wash & rinse pump fitted a standard
Operation interlocked to rinse temperature
Pass-Through model available
Wash cycle2, 4 & 6 minutes
Water consumption5 litres per cycle
Dimensions (WxDxH)805 x 805 x 1875 mm
STANDARD FEATURES INCLUDE
Chamber opening up to 540 mm clear
Durable stainless steel wash and rinse arms
Independent wash and rinse systems with high volume pumps for powerful wash action
Accurate digital temperature displays
Machine starts upon a push of a button
Wash & rinse pump fitted a standard
Operation interlocked to rinse temperature
Pass-Through model available
Wash cycle2, 4 & 6 minutes
Water consumption5 litres per cycle
Dimensions (WxDxH)805 x 855 x 1760 mm
STANDARD FEATURES INCLUDE
Chamber opening up to 800 mm clear
Durable stainless steel wash and rinse arms
Independent wash and rinse systems with high volume pumps for powerful wash action
Accepts baking trays and 75 litre garbage bins
Accurate digital temperature displays
Machine starts upon a push of a button
Wash & rinse pump fitted a standard
Operation interlocked to rinse temperature
Pass-Through model available
Wash cycle2, 4 & 6 minutes
Water consumption5 litres per cycle
Dimensions (WxDxH)805 x 805 x 2025 mm
The Eswood SW900X is a professional pass-through (hood-type) commercial dishwasher built for high-throughput kitchens that load and unload racks under a lifting hood. It pairs a one-touch control panel with sustainable water and energy use for back-of-house warewashing.
Why operators choose the SW900X
Uses just 1.8 litres of fresh water per rinse cycle for low running costs
One-touch TOUCH control panel with digital wash & rinse temperature displays for easy HACCP recording
Insulated double-skinned eco hood reduces noise and saves up to 0.5 kW per hour
Huge 465 mm hood opening clears tall items such as pots and trays
Built-in detergent & rinse-aid pumps, drain pump and self-cleaning cycle fitted as standard
Specifications
Brand
Eswood
Model / MPN
SW900X
Type
Passthrough (hood-type) dishwasher
Wash cycles
60, 90, 180 sec + special (operator time-variable, 12 min limit)
Fresh water consumption
1.8 litres per rack
Tank volume
22 litres
Hood opening
465 mm
Hood construction
Insulated double-skinned, ProGlide lift
Total electric load
10.2 kW at 415V (3 phase + N + E)
Boiler heating element
7.0 kW
Tank heating element
2.5 kW
Wash pump
700 W double flow
Control
One-touch panel with digital wash & rinse temperature displays (HACCP)
Dosing
Built-in detergent & rinse-aid pumps, drain pump, rinse booster pump
Dimensions (W x D x H)
633 x 755 x 1565 mm
Watermark approval
WMKT25317
Warranty
24 months
Venue suitability: Suited to cafes, restaurants, pubs and institutional kitchens that need fast, continuous rack throughput under a hood; browse more passthrough dishwashers or the full range of commercial dishwashers to compare options.
Installation & delivery: Requires a 3-phase 415V (3ph+N+E) supply, 3/4" water connection and 32 mm drain. Dispatched Australia-wide.
Frequently asked questions
Is the SW900X a hood-type dishwasher?Yes — it is a pass-through (hood-type) warewasher; racks are loaded under a lifting hood and passed through to the clean side.
How much water does it use per cycle?It uses 1.8 litres of fresh water per rack rinse.
What power supply does it need?It runs on a 3-phase 415V (3ph+N+E) supply with a total electric load of 10.2 kW.
What wash cycle options are available?Four fixed cycles of 60, 90 and 180 seconds plus a special operator-set time-variable cycle (up to 12 minutes).
What warranty does it come with?It is supplied with a 24-month warranty.
STANDARD FEATURES INCLUDE
user friendly ONE TOUCH control panel with digital wash and rinse temperature displays for easy HACCP recording
built-in detergent and rinse aid pump fitted as standard
huge 465 mm opening for large items e.g. Pots
insulated eco hood for energy saving and noise reduction saves up to 0.5 kW per hour
heat recovery system
independently certified for ventless/hoodless installation (SEED)
self cleaning cycle
supplied with 500 x 500 mm plate & glass racks and cutlery container
Wash cycle: four wash cycles of 60, 90 & 180 seconds special (time variable wash cycle chosen by operator – time limit 12 min)
Water consumption: 1.8 litres per cycle
Dishwasher dimensions: 633 x 755 x 1565 mm
Heat recovery unit dimensions: 633 x 755 x 700 mm
Overall dimensions: 633 x 755 x 2265 mm
Please note: Heat recovery unit is supplied separately and will require assembly prior to use.
Washmaster Passthrough Dishwasher WM50H – Heavy-Duty Cleaning for Professional Kitchens
The Washmaster WM50H Passthrough Dishwasher is a high-performance commercial dishwasher machine built to meet the rigorous demands of busy hospitality venues across Australia. With rapid wash cycles, an ergonomic passthrough design, and long-lasting stainless steel dishwasher construction, it ensures spotless, hygienic results with every cycle. Ideal for restaurants, cafes, pubs, and catering kitchens, the WM50H brings reliable cleaning power where it’s needed most.
Top Features of the Washmaster WM50H
Efficient High-Capacity Washing: Handles up to 60 racks per hour, streamlining dishwashing during peak service times.
Passthrough Design for Seamless Workflow: Improves kitchen efficiency with effortless load/unload movement.
Robust Stainless Steel Construction: Built to endure constant commercial use in demanding environments.
Intuitive Control Panel: Simple to operate with programmable cycles for various washing needs.
Hygienic High-Temperature Sanitisation: Ensures consistently clean, sanitised dishes that meet strict food safety standards.
Compact Footprint: Maximises floor space while maintaining large wash capacity—perfect for space-conscious venues.
Whether you're running a bustling restaurant or managing an industrial foodservice kitchen, the Washmaster WM50H is the go-to commercial dishwasher machine for dependable results, streamlined operation, and long-term value.
Elevate your back-of-house efficiency—choose the Washmaster WM50H for reliable performance every shift.
Standard Features:
Power supply: 400V
Total power: 8.7kW
Total current: 16 amp
Wash tank capacity: 15L
Rinse water consumption (per cycle): 2.5L
Rinsing temp (approx) : 80-85 °C
Rack size : 500x500mm
Tallest washable glass: 45 cm
Weight (empty): 92 kg
Water connection: 3/4" hose
4 wash cycles
Built-in detergent & rinse aid dispenser
Double skinned door for energy saving
Door safety switch stops machine if door opened
Thermostop system ensures 100% sanitisation
Drain pump to allow for waste installation anywhere
Commercial grade construction
Designed in Australia, Made in Italy
Boost your kitchen's productivity with this reliable and efficient heavy-duty dishwasher. The WM50H offers everything you need to maintain high hygiene standards while keeping pace with demand.
For more options tailored to your kitchen’s needs, explore our full range of commercial underbench dishwasher machines at Commercial Kitchen Store.

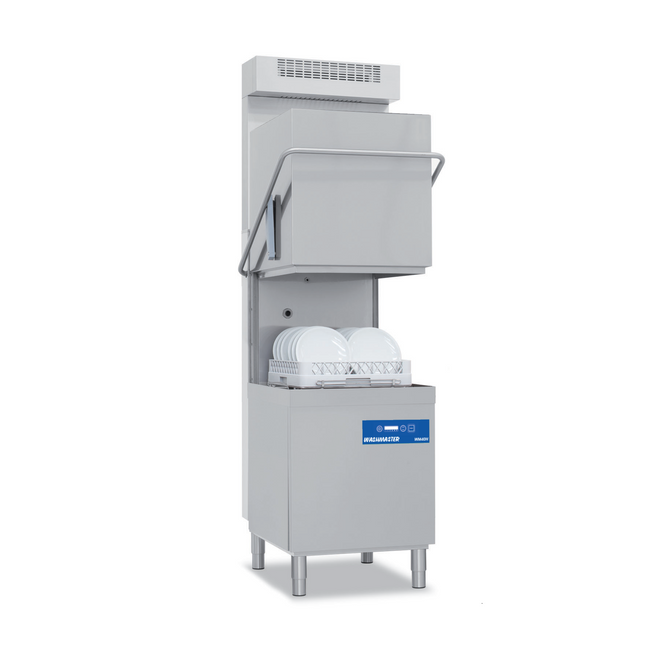

Washmaster Passthrough Dishwasher with Heat Recovery WM50HR – Powerful Cleaning for Busy Kitchens
The Washmaster Passthrough Dishwasher WM50HR with heat recovery technology is specifically crafted for bustling Australian restaurants, cafes, and catering businesses. Combining powerful cleaning capability with innovative energy-saving features, this passthrough dishwasher significantly boosts productivity while reducing operational costs, ensuring hygienic results and unmatched efficiency in your commercial kitchen.
Key Benefits of the Washmaster WM50HR Passthrough Dishwasher
Heat Recovery Technology: Captures steam to preheat incoming water, dramatically reducing energy usage and operating costs.
High-Capacity Performance: Rapidly processes up to 60 racks per hour—perfect for high-volume operations.
Easy Passthrough Operation: Streamlined workflow design facilitates quick loading and unloading, minimising kitchen downtime.
Robust Stainless Steel Construction: Engineered to withstand constant commercial use, ensuring reliability and longevity.
User-Friendly Digital Controls: Simple, intuitive interface allows easy operation and quick training for staff.
Superior Hygiene Standards: High-temperature sanitisation guarantees spotless, hygienically clean dishes every cycle, meeting strict Australian hospitality requirements.
Designed for hospitality businesses demanding speed, efficiency, and superior cleanliness, the Washmaster WM50HR dishwasher transforms your dishwashing process, letting your team focus on exceptional customer service rather than manual cleaning tasks.
Experience advanced efficiency. Invest in the Washmaster WM50HR today for unparalleled performance in your kitchen.
Standard Features:
Power supply: 400V
Total power: 8.7kW
Total current: 16 amp
Wash tank capacity: 15L
Rinse water consumption (per cycle): 2.5L
Rinsing temp (approx) : 80-85 °C
Rack size : 500x500mm
Tallest washable glass: 45 cm
Weight (empty): 92 kg
Water connection: 3/4" hose
Drain hose diameter: Ø 24mm
4 wash cycles
Heat recovery unit
Built-in detergent & rinse aid dispenser
Door safety switch stops machine if door opened
Thermostop system ensures 100% sanitisation
Drain pump to allow for waste installation anywhere
Commercial grade construction
Designed in Australia, Made in Italy
Dimensions
W: 600mm D: 657mm H: 1430mm

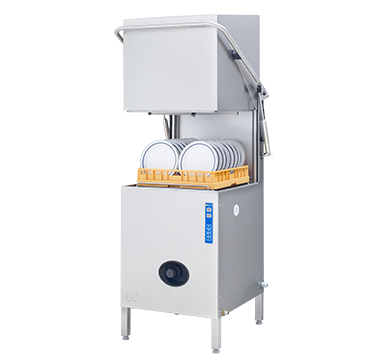

Product Features
Washes up to 50 baskets per hour
Only 1 litre per cycle water consumption
45 litre wash tank volume
Double final rinse with DUPLUS technology
Unique hood designed for steam to escape at the back of
machine
Simple program selection 3 levels of wash cycle for varying
types of soiled product
Auto Start function
Electronic control panel with event log recording for improved
diagnostics and rapid troubleshooting
Automatic cleaning program
Self-draining wash arms for optimum wash results
0.9kW wash pump with 9kW booster heater
Includes drying agent/rinse aid injector
Break tank with booster pump included
Anti-clogging filter at front of machine
Fixed basket conveyor designed for improved washing results
and cleaning
Smooth internal surfaces for easy cleaning
Stainless steel construction
Corner or in-line installation
Supplied with 3 high quality dish racks for cups and plates
Automatic hood lift
Detergent pumps for liquid detergent
Drain pump
Upgrades and options are available, please contact Moffat
Dimensions
W: 850mm D: 1060mm H: 1690mm
Product Features
High capacity 6 x 1/1 pans per cycle on a rotating rack
Low water consumption 5 litres per cycle
90 litres wash tank volume
Steam is directed on opening upwards behind the machine
User friendly panel with 9 programs
Includes 3 dishwashing baskets & 1 round pot washing cassette
Eye level control
Fast spin drying action fixed wash arms
0.74kW wash pump with 9kW booster heater
Automatic hood lift
Flexibility can be used with or without granules
670mm high clearance
90 litres wash tank volume
iNova Heated Recovery Pass-Through Dishwasher - WHC-502TRCBD
Hood-type dishwasher concept range with a heat recovery system for a 500x500 basket with mains pressure, LED displays, drain pump and detergent dispenser
Key Features
Energy Efficiency: Reuses waste heat to preheat incoming water, reducing energy use.
Lower Operating Costs: Cuts down on energy bills through efficient heat recovery.
Improved Working Environment: Minimises hot steam release, keeping the kitchen cooler and more comfortable.
No Need for Direct Exhaust Ventilation: Eliminates the requirement for an external exhaust hood, saving on installation costs.
Hourly production: 40 baskets/ hour
Clearance (max ware height): 450mm
Electronic control
Wash cycles: 90-120-180-480
Double rotating wash and rinse systems, made of AISI-304 stainless steel
Wash pump, 750W each
Drain pump: 100W drainage cycle
Tank with 3 kW heating power
Tank capacity: 33 litres
Water consumption: 2.2 litres/cycle
Thermostatic temperature control: washing at 60 ℃ and rinsing at 85 ℃
Two-digit LED displays
Hydraulic rinse aid dispenser
Dual-flow wash pump with soft-start
Double-stage filtration system
Dual-flow wash pumps
A magnetic micro switch to stop the cycle in case of accidental opening of hood
Adjustable legs
Supplied with 1 dish basket, 1 glass basket and 1 cutlery container
Watermark approved
Can be converted to single phase
Precision of working temperatures
Temperature control by electronic probes
Configurable control
i-ERROR DIAGNOSIS: Error identification on screen
Basket: 500x500
Drain pump
2 Years Parts and Labour Warranty
