Under bench ice makers are self-contained commercial ice machines built to slide under a standard counter, where the ice-making head and the storage bin sit in the one cabinet. They're made for venues that need a steady run of ice through service without giving up bench space — think the back bar of a pub, a café dispense area or a busy bistro. If you want to see how they sit against every format we stock, browse the full commercial ice maker range, or compare the bench-top alternatives in our benchtop ice makers collection.
Who an under bench ice maker is for
This format suits any operator who needs reliable daily ice but has the counter footprint of a small site rather than a full back-of-house plant. Cafés, pubs, RSLs, bars, food trucks and catering kitchens all lean on under-counter units because the machine tucks away neatly and pulls ice from a built-in bin without a separate dispenser. If you're pouring iced drinks, cocktails or filling display ice all day, a self-contained under bench unit handles back-to-back service far better than a domestic appliance.
What's in scope here
Everything in this collection is a commercial-grade self-contained ice maker designed to fit under a bench or counter. That's a deliberate distinction from cheap home ice makers: domestic units make a small batch, hold it briefly and aren't built for continuous duty cycles, whereas commercial under-counter machines run all day, hold a working reserve in an insulated bin and are built from stainless steel for a wash-down environment. If you need a larger separated head-and-bin setup, that's a different format — see modular ice makers for high-volume sites.
Sub-types to know
Under-bench / undercounter vs countertop
An under-bench (undercounter) unit is freestanding and slides beneath a counter, combining maker and bin in one body — the right call when you want ice on tap but the bench surface kept clear. A countertop ice machine sits up on the bench and is generally smaller, ideal for a coffee window or a compact bar where there's no under-counter cavity to use.
Air-cooled vs water-cooled
Air-cooled units shed heat into the room and are the common, lower-running-cost choice for most venues with reasonable ventilation. Water-cooled units use mains water to reject heat and stay efficient in hot, enclosed or poorly ventilated spaces — they cope better with high ambient temperatures but add to water use. Match the cooling type to where the machine will actually live.
Daily kg output
Commercial ice makers are rated by how many kilograms of ice they produce per 24 hours. A small café might be fine on a lower-output self-contained unit, while a busy pub bar pushing iced drinks all night needs a higher daily kg figure and a bin that holds enough reserve to ride out peak service.
How to choose: three quick questions
Step 1 — How much ice do you need a day?
Estimate your busiest day, not your average. Tally drinks, ice displays and food prep, then choose a daily kg output with headroom above that peak so the machine isn't running flat-out and falling behind during service.
Step 2 — Where will it sit, and how is it cooled?
Check the under-counter cavity dimensions and the ventilation. A well-ventilated space suits an air-cooled unit; a hot, boxed-in spot points you to water-cooled. Confirm the footprint fits before anything else.
Step 3 — Self-contained or modular?
If one cabinet under the counter covers your volume, a self-contained under-bench unit is simplest. If demand outgrows what a single bin holds, step up to a modular head-and-bin system instead.
Venue fit
Whether you're equipping a café, a pub back bar or a food truck, the under-bench format earns its place by keeping ice close to the pour without eating bench space. Smaller sites and coffee windows often pair an under-counter or countertop unit with an ice crusher for crushed-ice drinks. For brand-led shoppers, our range of Blizzard ice machines covers several under-counter options.
An under bench ice maker is a self-contained commercial ice machine that slides under a standard counter, combining the ice-making head and the storage bin in one cabinet. It's designed to make and hold ice in the same body so staff can scoop from a built-in bin without a separate dispenser, keeping bench space free.
What does "self contained ice maker" mean?
A self contained ice maker is one where the ice production and the ice storage bin are housed in a single unit, rather than split across a separate head and bin (which is a modular system). Most under-bench and countertop commercial machines are self-contained, which is why they're popular with smaller venues that want one tidy cabinet.
What's the difference between an under counter and a countertop ice maker?
An under counter (undercounter) ice maker is freestanding and sits beneath a bench, with maker and bin combined, suited to venues that want ice on tap with the surface kept clear. A countertop ice maker sits up on the bench, is usually smaller, and suits compact bars or coffee windows with no under-counter cavity to use.
Is a commercial under bench ice maker different from a home ice maker?
Yes. A commercial under bench ice maker is built for continuous daily duty, holds a working reserve of ice in an insulated bin, and is made from stainless steel for a wash-down kitchen. Cheap home ice makers make small batches, aren't designed for back-to-back service, and won't keep up with a working venue.
Should I choose air-cooled or water-cooled?
Choose air-cooled if the machine sits in a reasonably ventilated space — it's the common, lower-running-cost option. Choose water-cooled if the spot is hot, enclosed or poorly ventilated, because it rejects heat into mains water and stays efficient at high ambient temperatures, though it uses more water.
What size or daily output do I need?
Size by your busiest day rather than your average. Add up drinks, ice displays and food prep at peak, then pick a daily kg output with headroom above that figure so the machine keeps up during service and isn't running constantly. A busier bar needs both higher output and a larger bin reserve.
Can an under bench ice maker be freestanding?
Yes — under bench units are freestanding by design, so they can sit under a counter or stand alone wherever there's space, power and (for water-cooled models) a water connection. The "under bench" name refers to the height and footprint that let it tuck beneath a standard bench, not a fixed installation.
What ice format do these machines make?
Most commercial self-contained units make cube or dice ice, which suits general drink service and ice displays. If you need crushed ice for cocktails or smoothies, pair the machine with a dedicated ice crusher rather than relying on the ice maker alone.
Dimensions W: 485mm D: 575mm H: 908mmPacked Weight: 55kg Product Features 40kg daily production rate 17kg storage bin capacity 30mm dia x H 30mm, 25g ice cubes Air cooled version Agion Technology resists microbe's growth and odours development to produce pure, clear and transparent ice cubes EcoX hydrocarbons R290 refrigerant gas XSafe - Natural Sanitation System PWD-Progressive water discharge pumps excess water up to 15 meters Horizontal Ice evaporator spray-system technology Simple, reliable electromechanic controls Built-in storage bin Resistant stainless steel exterior Easy access front ON-OFF switch Routine maintenance visible alarm light on front panel Ergonomically designed ice storage access with disappearing door and door closing movement dampening system Front access condenser air filter, removable and washable Includes removable air filter, ice scoop, water and drain hose Optional adjustable feet available All Ice machines MUST be maintained to ensure high performance.The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.This maintains the quality of the ice shape and thickness. This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance. If your ice machine is not maintained, your warranty may be void. 6 Monthly Maintenance Program Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler. Sanitise water reservoir, distribution tubes, and bin interior. Clean and flush condenser coils (air-cooled units). Inspect condenser fan motor and blades. Check inlet water valve, float, and filters for correct operation. Verify ice thickness probe or sensor calibration. Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary. Test compressor amperage and general performance. Inspect water pump operation and clean pump housing. Check harvest cycle operation (heater or hot gas valve). Inspect electrical connections, relays, and contactors. Replace inline water filter cartridge.
Dimensions
W: 531mm D: 600mm H: 930mmPacked Weight: 54kg
Product Features
51kg daily production rate
23kg storage bin capacity
30mm dia x H 34mm, 20g Ice cubes
Air cooled condensing unit
Front panel in and out airflow for built-in installation
Agion Technology resists microbe's growth and odours development to produce pure, clear and transparent ice cubes
R290 refrigerant gas
Horizontal Ice evaporator spray-system technology
Simple, reliable electromechanic controls
Built-in storage bin
Clean alert indicator to clean filter
Easy access front condenser air filter for easy clean
Resistant stainless steel exterior
External indicator lights to show operation status
Removable air filter
Includes Ice scoop, water & drain hose
All Ice machines MUST be maintained to ensure high performance.The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.This maintains the quality of the ice shape and thickness. This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance. If your ice machine is not maintained, your warranty may be void. 6 Monthly Maintenance Program Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler. Sanitise water reservoir, distribution tubes, and bin interior. Clean and flush condenser coils (air-cooled units). Inspect condenser fan motor and blades. Check inlet water valve, float, and filters for correct operation. Verify ice thickness probe or sensor calibration. Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary. Test compressor amperage and general performance. Inspect water pump operation and clean pump housing. Check harvest cycle operation (heater or hot gas valve). Inspect electrical connections, relays, and contactors. Replace inline water filter cartridge.

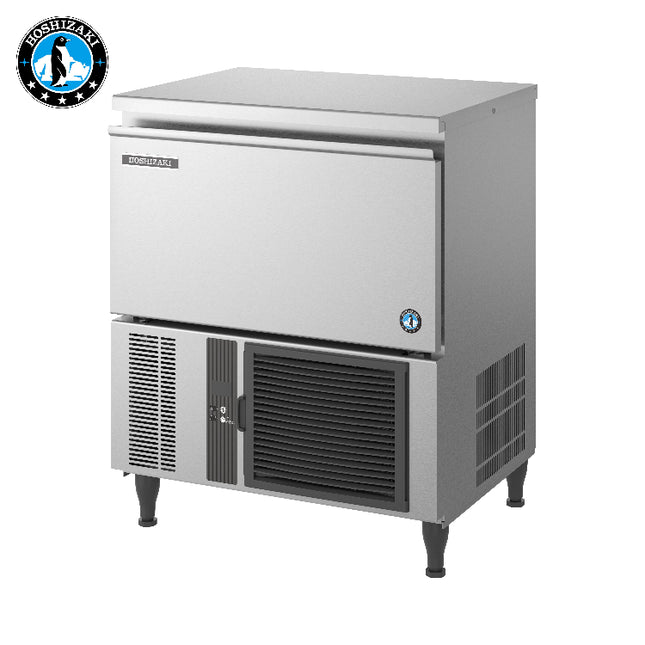

The Hoshizaki IM-45CNE-25 is a self-contained cube ice machine that makes and stores hard, crystal-clear cube ice in one undercounter unit, producing up to 35kg of ice per 24 hours with a built-in 15kg storage bin.Why operators choose the IM-45CNE-25
Slow-melt cube ice — dense, clear cubes hold their shape in premium drinks and dilute slowly.
Self-contained design — ice maker and storage bin in one cabinet, ready to plug in and run.
Fresh-water cycle — each batch is made from fresh water through a closed-cell circuit for hygiene.
Power and water saving — intelligent control circuit reduces running cost.
Stainless steel exterior — durable, easy-clean cabinet with accessible air filters.
Specifications
Brand
Hoshizaki
Model / MPN
IM-45CNE-25
Type
Self-contained cube ice machine
Ice production (per 24h)
Approx. 35kg @10°C / 32kg @21°C / 27kg @32°C air temp
Storage bin capacity
Approx. 15kg
Ice type
Cube
Freeze cycle
Approx. 22 min
Cooling
Air-cooled
Refrigerant
R134a / 160g
Power supply
1-phase 220-240V 50Hz, 10A plug
Running current
2.4A
Operating ambient
1-40°C
Construction
Stainless steel exterior
Dimensions (W x D x H)
633 x 511 x 780mm (incl. 90-125mm adjustable legs)
Packed dimensions
683 x 561 x 830mm
Net weight
48kg
Warranty
3 years parts & labour (unit), 5 years parts & labour (evaporator), 5 years parts (compressor)
Venue suitability: Ideal for bars, cafes, restaurants and function venues that need a steady supply of premium cube ice for cocktails and beverages without a separate ice bin. Browse more Self Contained Ice Makers or the full Hoshizaki range to compare production rates.Installation & delivery: Requires a cold water supply, drain and a standard 10A power point; allow clearance for air-cooled ventilation. Dispatched Australia-wide.Frequently asked questionsHow much ice does the IM-45CNE-25 make per day? It produces approximately 35kg per 24 hours at 10°C, 32kg at 21°C and 27kg at 32°C ambient air temperature.How much ice can it store? The built-in bin holds approximately 15kg of ice.What type of ice does it make? Hard, crystal-clear cube ice that melts slowly, suited to premium beverages and cocktails.Is it air-cooled or water-cooled? It is air-cooled, so ensure adequate ventilation and clearance around the unit.What power supply does it need? A standard single-phase 220-240V 50Hz supply via a 10A plug.
Dimensions
W: 600mm D: 610mm H: 770mmPacked Weight: 65kg
Product Features
78kg daily production rate
20kg storage bin capacity
W 28mm x D 22mm x H 28mm, 15g ice cubes
Air cooled version
Agion Technology resists microbe's growth and odours development to produce pure, clear and transparent ice cubes
Hydrocarbons R290 refrigerant gas
XSafe - Natural Sanitation System
Vertical evaporator spray-system technology
Front in and out air flow designed for placement in tight spaces
Ergonomic access to ice with sliding disappearing door
One touch cleaning for time and labour saving
Built-in storage bin
One touch button for easy cleaning
Easy access front condenser air filter for easy clean
Resistant stainless steel exterior
External indicator lights to show operation status and maintenance alert
Includes removable air filter, ice scoop, water and drain hose
All Ice machines MUST be maintained to ensure high performance.The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.This maintains the quality of the ice shape and thickness. This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance. If your ice machine is not maintained, your warranty may be void. 6 Monthly Maintenance Program Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler. Sanitise water reservoir, distribution tubes, and bin interior. Clean and flush condenser coils (air-cooled units). Inspect condenser fan motor and blades. Check inlet water valve, float, and filters for correct operation. Verify ice thickness probe or sensor calibration. Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary. Test compressor amperage and general performance. Inspect water pump operation and clean pump housing. Check harvest cycle operation (heater or hot gas valve). Inspect electrical connections, relays, and contactors. Replace inline water filter cartridge.
Dimensions
W: 600mm D: 610mm H: 770mmPacked Weight: 65kg
Product Features
75kg daily production rate
20kg storage bin capacity
W 22mm x D 22mm x H 22mm, 10g ice cubes
Air cooled version
Agion Technology resists microbe's growth and odours development to produce pure, clear and transparent ice cubes
Hydrocarbons R290 refrigerant gas
XSafe - Natural Sanitation System
Vertical evaporator spray-system technology
Front in and out air flow designed for placement in tight spaces
Ergonomic access to ice with sliding disappearing door
One touch cleaning for time and labour saving
Built-in storage bin
One touch button for easy cleaning
Easy access front condenser air filter for easy clean
Resistant stainless steel exterior
External indicator lights to show operation status and maintenance alert
Includes removable air filter, ice scoop, water and drain hose
All Ice machines MUST be maintained to ensure high performance.The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.This maintains the quality of the ice shape and thickness. This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance. If your ice machine is not maintained, your warranty may be void. 6 Monthly Maintenance Program Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler. Sanitise water reservoir, distribution tubes, and bin interior. Clean and flush condenser coils (air-cooled units). Inspect condenser fan motor and blades. Check inlet water valve, float, and filters for correct operation. Verify ice thickness probe or sensor calibration. Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary. Test compressor amperage and general performance. Inspect water pump operation and clean pump housing. Check harvest cycle operation (heater or hot gas valve). Inspect electrical connections, relays, and contactors. Replace inline water filter cartridge.
Dimensions
W: 600mm D: 610mm H: 770mmPacked Weight: 65kg
Product Features
80kg daily production rate
20kg storage bin capacity
W 10mm x D 22mm x H 28mm, 6g ice cubes
Air cooled version
Agion Technology resists microbe's growth and odours development to produce pure, clear and transparent ice cubes
Hydrocarbons R290 refrigerant gas
XSafe - Natural Sanitation System
Vertical evaporator spray-system technology
Front in and out air flow designed for placement in tight spaces
Ergonomic access to ice with sliding disappearing door
One touch cleaning for time and labour saving
Built-in storage bin
One touch button for easy cleaning
Easy access front condenser air filter for easy clean
Resistant stainless steel exterior
External indicator lights to show operation status and maintenance alert
Includes removable air filter, ice scoop, water and drain hose
All Ice machines MUST be maintained to ensure high performance.The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.This maintains the quality of the ice shape and thickness. This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance. If your ice machine is not maintained, your warranty may be void. 6 Monthly Maintenance Program Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler. Sanitise water reservoir, distribution tubes, and bin interior. Clean and flush condenser coils (air-cooled units). Inspect condenser fan motor and blades. Check inlet water valve, float, and filters for correct operation. Verify ice thickness probe or sensor calibration. Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary. Test compressor amperage and general performance. Inspect water pump operation and clean pump housing. Check harvest cycle operation (heater or hot gas valve). Inspect electrical connections, relays, and contactors. Replace inline water filter cartridge.

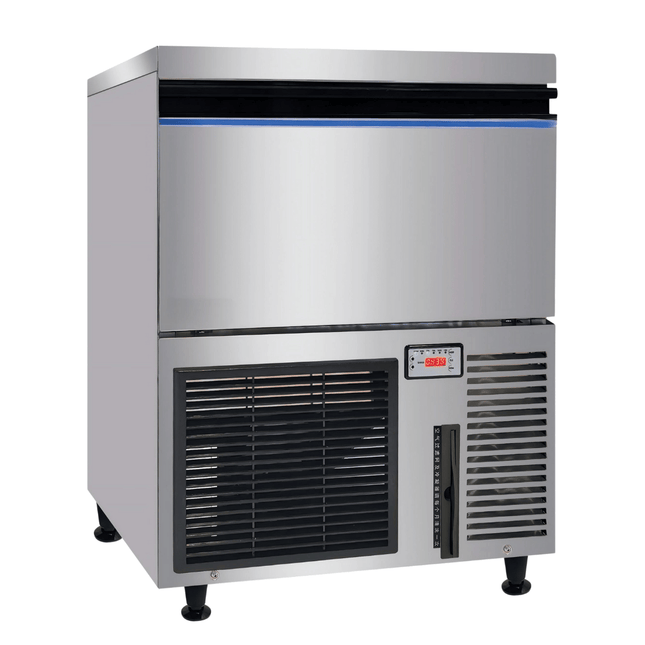

Blizzard Premium Under-Counter Ice Maker Large Cube Ice – SN-200P
Designed for high-end hospitality environments, our spray-type under-counter ice maker produces crystal-clear, slow-melting large cube ice (48×48×58mm) – the benchmark for whiskey service in bars, hotels, cafés, and clubs
Key Features
Produces solid, crystal-clear ice cubes (48×48×58mm) with a core temperature of -17° —perfect for premium beverages like whiskey and cocktails
Ensures consistent ice formation at -25°C evaporation temperature, delivering dense, crystal-clear cubes suitable for tropicalized environments and reliable performance in ambient temperatures up to +43°C
Natural and eco-friendly refrigerant
Integrated intelligent control system automates ice production, harvesting, cleaning, and fault detection for effortless operation
Exterior and interior made from SS304 stainless steel and ABS for strength and corrosion resistance
Seamless PE-molded ice bin with rounded corners for easy cleaning and hygiene compliance
Simplified access to the filter, water trough, and distribution tube allows fast servicing and lowers maintenance costs
Add cleaning liquid to the water trough and activate the automatic cleaning cycle, which will be completed in just 35 minutes
Optimised for space-saving installation in bars, cafés, clubs, and kitchens with limited space.
2 Years Parts and Labour Warranty All Ice machines MUST be maintained to ensure high performance.The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.This maintains the quality of the ice shape and thickness. This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance. If your ice machine is not maintained, your warranty may be void. 6 Monthly Maintenance Program Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler. Sanitise water reservoir, distribution tubes, and bin interior. Clean and flush condenser coils (air-cooled units). Inspect condenser fan motor and blades. Check inlet water valve, float, and filters for correct operation. Verify ice thickness probe or sensor calibration. Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary. Test compressor amperage and general performance. Inspect water pump operation and clean pump housing. Check harvest cycle operation (heater or hot gas valve). Inspect electrical connections, relays, and contactors. Replace inline water filter cartridge.
Dimensions
W: 600mm D: 610mm H: 770mmPacked Weight: 62kg
Product Features
68kg daily production rate
20kg storage bin capacity
W 22mm x D 22mm x H 22mm, 10g ice cubes
Air cooled version
Agion Technology resists microbe's growth and odours development to produce pure, clear and transparent ice cubes
R404a refrigerant gas
XSafe - Natural Sanitation System
Vertical evaporator spray-system technology
Front in and out air flow designed for placement in tight spaces
Ergonomic access to ice with sliding disappearing door
One touch cleaning for time and labour saving
Built-in storage bin
One touch button for easy cleaning
Easy access front condenser air filter for easy clean
Resistant stainless steel exterior
External indicator lights to show operation status and maintenance alert
Includes removable air filter, ice scoop, water and drain hose
Optional extras: SC8700000200 - Optional leg kit (NU 100/ NU 150/ NU 220 models)
All Ice machines MUST be maintained to ensure high performance.The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.This maintains the quality of the ice shape and thickness. This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance. If your ice machine is not maintained, your warranty may be void. 6 Monthly Maintenance Program Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler. Sanitise water reservoir, distribution tubes, and bin interior. Clean and flush condenser coils (air-cooled units). Inspect condenser fan motor and blades. Check inlet water valve, float, and filters for correct operation. Verify ice thickness probe or sensor calibration. Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary. Test compressor amperage and general performance. Inspect water pump operation and clean pump housing. Check harvest cycle operation (heater or hot gas valve). Inspect electrical connections, relays, and contactors. Replace inline water filter cartridge.
Dimensions
W: 600mm D: 610mm H: 770mmPacked Weight: 62kg
Product Features
70kg daily production rate
20kg storage bin capacity
W 10mm x D 22mm x H 28mm, 6g ice cubes
Air cooled version
Agion Technology resists microbe's growth and odours development to produce pure, clear and transparent ice cubes
R404a refrigerant gas
XSafe - Natural Sanitation System
Vertical evaporator spray-system technology
Front in and out air flow designed for placement in tight spaces
Ergonomic access to ice with sliding disappearing door
One touch cleaning for time and labour saving
Built-in storage bin
One touch button for easy cleaning
Easy access front condenser air filter for easy clean
Resistant stainless steel exterior
External indicator lights to show operation status and maintenance alert
Includes removable air filter, ice scoop, water and drain hose
Optional extras: SC8700000200 - Optional leg kit (NU 100/ NU 150/ NU 220 models)
All Ice machines MUST be maintained to ensure high performance.The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.This maintains the quality of the ice shape and thickness. This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance. If your ice machine is not maintained, your warranty may be void. 6 Monthly Maintenance Program Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler. Sanitise water reservoir, distribution tubes, and bin interior. Clean and flush condenser coils (air-cooled units). Inspect condenser fan motor and blades. Check inlet water valve, float, and filters for correct operation. Verify ice thickness probe or sensor calibration. Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary. Test compressor amperage and general performance. Inspect water pump operation and clean pump housing. Check harvest cycle operation (heater or hot gas valve). Inspect electrical connections, relays, and contactors. Replace inline water filter cartridge.
Dimensions
W: 600mm D: 610mm H: 770mmPacked Weight: 62kg
Product Features
70kg daily production rate
20kg storage bin capacity
W 29mm x D 22mm x H 28mm, 15g ice cubes
Air cooled version
Agion Technology resists microbe's growth and odours development to produce pure, clear and transparent ice cubes
R404a refrigerant gas
XSafe - Natural Sanitation System
Vertical evaporator spray-system technology
Front in and out air flow designed for placement in tight spaces
Ergonomic access to ice with sliding disappearing door
One touch cleaning for time and labour saving
Built-in storage bin
One touch button for easy cleaning
Easy access front condenser air filter for easy clean
Resistant stainless steel exterior
External indicator lights to show operation status and maintenance alert
Includes removable air filter, ice scoop, water and drain hose
Optional extras: SC8700000200 - Optional leg kit (NU 100/ NU 150/ NU 220 models)
All Ice machines MUST be maintained to ensure high performance.The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.This maintains the quality of the ice shape and thickness. This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance. If your ice machine is not maintained, your warranty may be void. 6 Monthly Maintenance Program Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler. Sanitise water reservoir, distribution tubes, and bin interior. Clean and flush condenser coils (air-cooled units). Inspect condenser fan motor and blades. Check inlet water valve, float, and filters for correct operation. Verify ice thickness probe or sensor calibration. Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary. Test compressor amperage and general performance. Inspect water pump operation and clean pump housing. Check harvest cycle operation (heater or hot gas valve). Inspect electrical connections, relays, and contactors. Replace inline water filter cartridge.

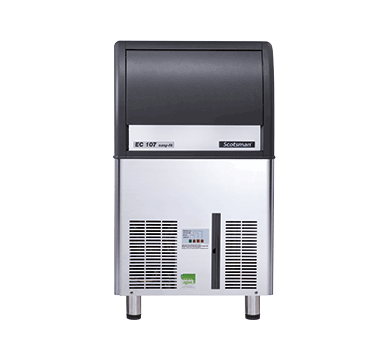

Dimensions
W: 531mm D: 600mm H: 930mmPacked Weight: 56kg
Product Features
51kg daily production rate
23kg storage bin capacity
30mm dia x H 34mm, 20g ice cubes
Air cooled version
Agion Technology resists microbe's growth and odours development to produce pure, clear and transparent ice cubes
EcoX hydrocarbons R290 refrigerant gas
XSafe - Natural Sanitation System
PWD-Progressive water discharge pumps excess water up to 15 meters
Horizontal Ice evaporator spray-system technology
Simple, reliable electromechanic controls
Built-in storage bin
Resistant stainless steel exterior
Easy access front ON-OFF switch
Routine maintenance visible alarm light on front panel
Ergonomically designed ice storage access with disappearing door and door closing movement dampening system
Front access condenser air filter, removable and washable
Includes removable air filter, ice scoop, water and drain hose
Optional Extra:
LVR073 - Adjustable Feet to 850mm
All Ice machines MUST be maintained to ensure high performance.The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.This maintains the quality of the ice shape and thickness. This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance. If your ice machine is not maintained, your warranty may be void. 6 Monthly Maintenance Program Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler. Sanitise water reservoir, distribution tubes, and bin interior. Clean and flush condenser coils (air-cooled units). Inspect condenser fan motor and blades. Check inlet water valve, float, and filters for correct operation. Verify ice thickness probe or sensor calibration. Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary. Test compressor amperage and general performance. Inspect water pump operation and clean pump housing. Check harvest cycle operation (heater or hot gas valve). Inspect electrical connections, relays, and contactors. Replace inline water filter cartridge.
Dimensions
W: 485mm D: 575mm H: 908mmPacked Weight: 59kg
Product Features
47kg daily production rate
18kg storage bin capacity
30mm dia x H 30mm, 25g ice cubes
Air cooled version
Agion Technology resists microbe's growth and odours development to produce pure, clear and transparent ice cubes
EcoX hydrocarbons R290 refrigerant gas
XSafe - Natural Sanitation System
PWD-Progressive water discharge pumps excess water up to 15 meters
Horizontal Ice evaporator spray-system technology
Simple, reliable electromechanic controls
Built-in storage bin
Resistant stainless steel exterior
Easy access front ON-OFF switch
Routine maintenance visible alarm light on front panel
Ergonomically designed ice storage access with disappearing door and door closing movement dampening system
Front access condenser air filter, removable and washable
Includes removable air filter, ice scoop, water and drain hose
Optional adjustable feet available
All Ice machines MUST be maintained to ensure high performance.The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.This maintains the quality of the ice shape and thickness. This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance. If your ice machine is not maintained, your warranty may be void. 6 Monthly Maintenance Program Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler. Sanitise water reservoir, distribution tubes, and bin interior. Clean and flush condenser coils (air-cooled units). Inspect condenser fan motor and blades. Check inlet water valve, float, and filters for correct operation. Verify ice thickness probe or sensor calibration. Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary. Test compressor amperage and general performance. Inspect water pump operation and clean pump housing. Check harvest cycle operation (heater or hot gas valve). Inspect electrical connections, relays, and contactors. Replace inline water filter cartridge.
This Hoshizaki KM-80C-HC is a self-contained Crescent Edge ice maker producing up to 75 kg of high-quality Crescent Edge Ice per 24 hours, meeting even the strictest hygiene requirements and suitable for all operational requirements and kitchen measurements.
The KM Edge range has an enlarged, bonded evaporator surface. Accelerating harvest cycles, the technology behind the KM Edge range will help you to increase your serving capacity instantly. More ice in less amount of time.Individual premium crescent cube with no ice bridging.
Exceptionally hard crystal clear cubes that melt slowly.
Durable stainless steel exterior.
Slide in air filter at front for easy cleaning -maintaining performance efficiency.
Double-sided stainless steel evaporator for all water conditions -produces more ice in less cycles.
Flush mount to rear wall.
Good in hard water areas.
Snap in water tank design – easy to remove for sanitization.
Low electrical consumption.
Low water consumption.
LED lights and audible alarms.
3 year parts and labour warranty on entire unit.
Production Capacity per 24hours
Approx. 75kg @ 10°C Air temp; 10°C WaterApprox. 68kg @ 21°C Air temp; 15°C WaterApprox. 55kg @ 32°C Air temp; 21°C Water
Max Storage Capacity
Approx. 34kg
Freeze Cycle Time
Approx. 23min
Ice Production Per cycle
Approx. 1.15kg / 130pcs
Width
605mm
Depth
712mm
Height
988mm
Weight Net
50kg
Packed Weight
63kg
Cooling
Air
AC Supply Voltage
1 PHASE 220-240V 50Hz/ 10Amp Plug
Amperage
Running: 2.1A Starting: 12.5A
Refrigerant Charge
R290/147g
Operating Conditions
Ambient Temp.: 7-38°CWater Supply Temp.: 7-32°CWater Supply Pressure: 0.07-0.8MPa (0.7-8bar)Voltage Range: Rated Voltage ±6%
Additional Parts
87000104 Low capacity Water Filter System87000106 320mm Replacement Cartridge87000148 Water Filter Kit & Guage87000146 Water Filter78000098 Drain pump78000099 Drain pump81000116 Stainless Steel Hose95001013 Adjustable Leg
Product Dimensions: 605(W) x 712(D) x 988(H)mm All Ice machines MUST be maintained to ensure high performance.The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.This maintains the quality of the ice shape and thickness. This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance. If your ice machine is not maintained, your warranty may be void. 6 Monthly Maintenance Program Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler. Sanitise water reservoir, distribution tubes, and bin interior. Clean and flush condenser coils (air-cooled units). Inspect condenser fan motor and blades. Check inlet water valve, float, and filters for correct operation. Verify ice thickness probe or sensor calibration. Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary. Test compressor amperage and general performance. Inspect water pump operation and clean pump housing. Check harvest cycle operation (heater or hot gas valve). Inspect electrical connections, relays, and contactors. Replace inline water filter cartridge.
HIGHEST QUALITY ICE
This self-contained cube ice maker is part of a unique range of cubers; designed with hygiene as a priority. Each ice cycle is made with fresh water, ensuring only the highest quality of ice. The cubes are easily recognized by its precise shape, clarity and slow dilution.
New intelligent control circuit dedicated to saving power and water consumption.
Inbuilt safety features – freeze cycle back up timer, defrost back up, low voltage and high amp protector.
New 7 segment operational display panel for ease of use.
Unique closed cell water circuit for ultimate contamination protection.
Durable stainless steel exterior.
Easily accessible and cleanable air filters reduce costly callouts.
Exceptionally hard crystal clear cubes that melt slowly.
Auto rinse and flush cycle.
3 year parts and labour warranty on entire unit, 5 year (parts only) on compressor and air cooled condenser coil.
Large Ice Cube Makers are specifically designed for bars, to be used in cocktails and not for general ice and especially blending purposes. Large Ice Cubes (above 22mm) cannot be blended for juices, smoothies etc
Production Capacity per 24hours
Approx.45kg @10°C Air temp; 10°C WaterApprox. 44kg @21°C Air temp; 15°C WaterApprox. 37kg @32°C Air temp; 21°C Water
Max Storage Capacity
Approx. 26kg ( Bin Control Settings Approx.18 Kg)
Freeze Cycle Time
Approx. 22 Min
Ice Production Per cycle
Approx. 0.72kg/56pcs
Dimensions
633mm (W) x 506mm (D) x 930mm (H)(Units include adjustable legs 90-125mm)
Cooling
Air
Weight Net/Gross (kg)
53 / 61
AC Supply Voltage
1 PHASE 220-240V 50Hz/ 10 AMP Plug
Amperage
Running: 2.9A Rated: 2.9A Starting: 17A
Refrigerant Charge
R134a / 200g
Operating Conditions
Ambient Temp.: 1-40°CWater Supply Temp.: 5-35°CWater Supply Pressure: 0.07-0.8MPa (0.7-8bar)Voltage Range: Rated Voltage ±6%
Product Dimensions: 633(W) x 506(D) x 930(H)mm All Ice machines MUST be maintained to ensure high performance.The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.This maintains the quality of the ice shape and thickness. This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance. If your ice machine is not maintained, your warranty may be void. 6 Monthly Maintenance Program Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler. Sanitise water reservoir, distribution tubes, and bin interior. Clean and flush condenser coils (air-cooled units). Inspect condenser fan motor and blades. Check inlet water valve, float, and filters for correct operation. Verify ice thickness probe or sensor calibration. Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary. Test compressor amperage and general performance. Inspect water pump operation and clean pump housing. Check harvest cycle operation (heater or hot gas valve). Inspect electrical connections, relays, and contactors. Replace inline water filter cartridge.

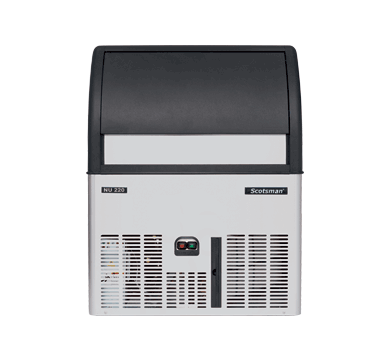

Dimensions
W: 650mm D: 690mm H: 870mmPacked Weight: 77.5kg
Product Features
95kg daily production rate
37kg storage bin capacity
W 22mm x D 22mm x H 22mm, 10g ice cubes
Air cooled version
Agion Technology resists microbe's growth and odours development to produce pure, clear and transparent ice cubes
EcoX hydrocarbons R290 refrigerant gas
XSafe - Natural Sanitation System
Vertical evaporator spray-system technology
Front in and out air flow designed for placement in tight spaces
Ergonomic access to ice with sliding disappearing door
One touch cleaning for time and labour saving
Built-in storage bin
One touch button for easy cleaning
Easy access front condenser air filter for easy clean
Resistant stainless steel exterior
External indicator lights to show operation status and maintenance alert
Includes removable air filter, ice scoop, water and drain hose
All Ice machines MUST be maintained to ensure high performance.The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.This maintains the quality of the ice shape and thickness. This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance.
If your ice machine is not maintained, your warranty may be void.
6 Monthly Maintenance Program
Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler.
Sanitise water reservoir, distribution tubes, and bin interior.
Clean and flush condenser coils (air-cooled units).
Inspect condenser fan motor and blades.
Check inlet water valve, float, and filters for correct operation.
Verify ice thickness probe or sensor calibration.
Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary.
Test compressor amperage and general performance.
Inspect water pump operation and clean pump housing.
Check harvest cycle operation (heater or hot gas valve).
Inspect electrical connections, relays, and contactors.
Replace inline water filter cartridge.
Dimensions
W: 650mm D: 690mm H: 870mmPacked Weight: 77.5kg
Product Features
98kg daily production rate
37kg storage bin capacity
W 10mm x D 22mm x H 28mm, 6g ice cubes
Air cooled version
Agion Technology resists microbe's growth and odours development to produce pure, clear and transparent ice cubes
R404a refrigerant gas
XSafe - Natural Sanitation System
Vertical evaporator spray-system technology
Front in and out air flow designed for placement in tight spaces
Ergonomic access to ice with sliding disappearing door
One touch cleaning for time and labour saving
Built-in storage bin
One touch button for easy cleaning
Easy access front condenser air filter for easy clean
Resistant stainless steel exterior
External indicator lights to show operation status and maintenance alert
Includes removable air filter, ice scoop, water and drain hose
Optional extras: SC8700000200 - Optional leg kit (NU 100/ NU 150/ NU 220 models)
All Ice machines MUST be maintained to ensure high performance.The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.This maintains the quality of the ice shape and thickness. This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance.
If your ice machine is not maintained, your warranty may be void.
6 Monthly Maintenance Program
Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler.
Sanitise water reservoir, distribution tubes, and bin interior.
Clean and flush condenser coils (air-cooled units).
Inspect condenser fan motor and blades.
Check inlet water valve, float, and filters for correct operation.
Verify ice thickness probe or sensor calibration.
Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary.
Test compressor amperage and general performance.
Inspect water pump operation and clean pump housing.
Check harvest cycle operation (heater or hot gas valve).
Inspect electrical connections, relays, and contactors.
Replace inline water filter cartridge.
Dimensions
W: 670mm D: 595mm H: 983mmPacked Weight: 76kg
Product Features
68kg daily production rate
33kg storage bin capacity
30mm dia x H 30mm, 25g ice cubes
Air cooled version
Agion Technology resists microbe's growth and odours development to produce pure, clear and transparent ice cubes
EcoX hydrocarbons R290 refrigerant gas
XSafe - Natural Sanitation System
PWD-Progressive water discharge pumps excess water up to 15 meters
Horizontal Ice evaporator spray-system technology
Simple, reliable electromechanic controls
Built-in storage bin
Resistant stainless steel exterior
Easy access front ON-OFF switch
Routine maintenance visible alarm light on front panel
Ergonomically designed ice storage access with disappearing door and door closing movement dampening system
Front access condenser air filter, removable and washable
Includes removable air filter, ice scoop, water and drain hose
Optional adjustable feet available
All Ice machines MUST be maintained to ensure high performance.The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.This maintains the quality of the ice shape and thickness. This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance. If your ice machine is not maintained, your warranty may be void. 6 Monthly Maintenance Program Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler. Sanitise water reservoir, distribution tubes, and bin interior. Clean and flush condenser coils (air-cooled units). Inspect condenser fan motor and blades. Check inlet water valve, float, and filters for correct operation. Verify ice thickness probe or sensor calibration. Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary. Test compressor amperage and general performance. Inspect water pump operation and clean pump housing. Check harvest cycle operation (heater or hot gas valve). Inspect electrical connections, relays, and contactors. Replace inline water filter cartridge.

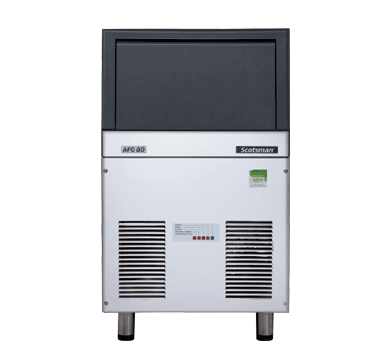

Dimensions
W: 535mm D: 620mm H: 890mmPacked Weight: 58kg
Product Features
75kg daily production rate
25kg storage bin capacity
W 16mm x D 15mm dia x H 7 - 8mm, 1g ice cube
Air cooled version
Agion Technology resists microbe's growth and odours development to produce pure, clear and transparent ice cubes
R134a refrigerant gas
XSafe - Natural Sanitation System
Ice evaporator stainless steel auger
Simple, reliable electromechanic controls
Built-in storage bin
Easy access front condenser air filter for easy clean
Resistant stainless steel exterior
External indicator lights to show operation status and maintenance alert
Includes removable air filter, ice scoop, water & drain hose
All Ice machines MUST be maintained to ensure high performance.The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.This maintains the quality of the ice shape and thickness. This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance. If your ice machine is not maintained, your warranty may be void. 6 Monthly Maintenance Program Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler. Sanitise water reservoir, distribution tubes, and bin interior. Clean and flush condenser coils (air-cooled units). Inspect condenser fan motor and blades. Check inlet water valve, float, and filters for correct operation. Verify ice thickness probe or sensor calibration. Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary. Test compressor amperage and general performance. Inspect water pump operation and clean pump housing. Check harvest cycle operation (heater or hot gas valve). Inspect electrical connections, relays, and contactors. Replace inline water filter cartridge.

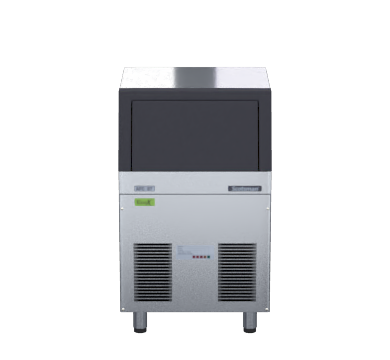

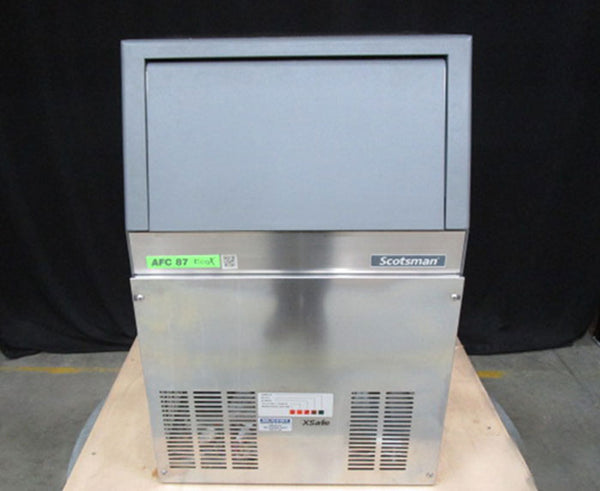

Product Description:70kg daily production ice maker with 25kg storage bin, producing 1g ice cubes (16mm W x 15mm D x 78mm H). Air-cooled system featuring stainless steel evaporator auger and simple electromechanical controls. Incorporates Agion Technology for microbial and odour resistance, XSafe natural sanitation system, and EcoX R290 hydrocarbon refrigerant for improved efficiency and sustainability.Condition of Equipment:Consignment unit is in good condition and presents well as a consignment return. Unit has been well used, with scratches and marks on the top panel, and small marks on the front and both side panels.Unit has NIL% protective plastics. It had been cleaned, checked and tested.Dimensions:W: 535mm D: 619mm H: 891mmSerial Number: DM002875-Z1All Moffat Warehouse Clearance products come with a 12-month spare parts and labour warranty (excluding accessories).
Dimensions
W: 535mm D: 619mm H: 891mmPacked Weight: 58kg
Product Features
70kg daily production rate
25kg storage bin capacity
W 16mm x D 15mm dia x H 7 - 8mm, 1g ice cube
Air cooled version
Agion Technology resists microbe's growth and odours development to produce pure, clear and transparent ice cubes
EcoX model uses hydrocarbon R290 refrigerant gas
XSafe - Natural Sanitation System
Ice evaporator stainless steel auger
Simple, reliable electromechanic controls
Built-in storage bin
Easy access front condenser air filter for easy clean
Resistant stainless steel exterior
External indicator lights to show operation status and maintenance alert
Includes removable air filter, ice scoop, water & drain hose
All Ice machines MUST be maintained to ensure high performance.The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.This maintains the quality of the ice shape and thickness. This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance. If your ice machine is not maintained, your warranty may be void. 6 Monthly Maintenance Program Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler. Sanitise water reservoir, distribution tubes, and bin interior. Clean and flush condenser coils (air-cooled units). Inspect condenser fan motor and blades. Check inlet water valve, float, and filters for correct operation. Verify ice thickness probe or sensor calibration. Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary. Test compressor amperage and general performance. Inspect water pump operation and clean pump housing. Check harvest cycle operation (heater or hot gas valve). Inspect electrical connections, relays, and contactors. Replace inline water filter cartridge.
HIGHEST QUALITY ICE This ice maker is part of a unique range of cubers; designed with hygiene as a priority. Each ice cycle is made with fresh water, ensuring only the highest quality of ice. The cubes are easily recognized by its precise shape, clarity and slow dilution. This is particularly important for ice that is used in premium beverages like cocktails, as it protects the integrity and flavor of the drink. This model is configured with our storage bins, and can be stacked to multiply the ice production.
New intelligent control circuit dedicated to saving power and water consumption.
Micro computer controller controls ice making process to work at peak performance in any conditions.
Inbuilt safety features – freeze cycle back up timer, defrost back up, low voltage and high amp protector.
New 7 segment operational display panel for ease of use.
Unique closed cell water circuit for ultimate contamination protection.
Durable stainless steel exterior.
Easily accessible and cleanable air filters reduce costly callouts.
Exceptionally hard crystal clear cubes that melt slowly.
Auto rinse and flush cycle.
3 year parts and labour warranty on entire unit, 5 year (parts only) on compressor and air cooled condenser coil.
Production Capacity per 24hours Approx. 90kg @10°C Air temp; 10°C Water Approx. 85kg @21°C Air temp; 15°C Water Approx. 62kg @32°C Air temp; 21°C Water Max Storage Capacity Approx. 38kg ( Bin Control Setting Approx. 23Kg) Freeze Cycle Time Approx. 17 Min Ice Production Per cycle Approx. 1.15kg/190pcs Dimensions 1004mm (W) x 600mm (D) x 800mm (H) (Units include adjustable legs 90-125mm) Cooling Air Weight Net/Gross (kg) 77 / 88 AC Supply Voltage 1 PHASE 220-240V 50Hz/ 10 AMP Plug Amperage Running: 4.1A Rated: 4.1A Starting: 19A Refrigerant Charge R134a / 280g Operating Conditions Ambient Temp.: 1-40°C Water Supply Temp.: 5-35°C Water Supply Pressure: 0.07-0.8MPa (0.7-8bar) Voltage Range: Rated Voltage ±6% Product Dimensions: 1004(W) x 600(D) x 800(H)mm All Ice machines MUST be maintained to ensure high performance.The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.This maintains the quality of the ice shape and thickness. This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance. If your ice machine is not maintained, your warranty may be void. 6 Monthly Maintenance Program Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler. Sanitise water reservoir, distribution tubes, and bin interior. Clean and flush condenser coils (air-cooled units). Inspect condenser fan motor and blades. Check inlet water valve, float, and filters for correct operation. Verify ice thickness probe or sensor calibration. Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary. Test compressor amperage and general performance. Inspect water pump operation and clean pump housing. Check harvest cycle operation (heater or hot gas valve). Inspect electrical connections, relays, and contactors. Replace inline water filter cartridge.
HIGHEST QUALITY ICE
This ice maker is part of a unique range of cubers; designed with hygiene as a priority. Each ice cycle is made with fresh water, ensuring only the highest quality of ice. The cubes are easily recognized by its precise shape, clarity and slow dilution. This is particularly important for ice that is used in premium beverages like cocktails, as it protects the integrity and flavor of the drink. This model is configured with our storage bins, and can be stacked to multiply the ice production.
New intelligent control circuit dedicated to saving power and water consumption.
Micro computer controller controls ice making process to work at peak performance in any conditions.
Inbuilt safety features – freeze cycle back up timer, defrost back up, low voltage and high amp protector.
New 7 segment operational display panel for ease of use.
Unique closed cell water circuit for ultimate contamination protection.
Durable stainless steel exterior.
Easily accessible and cleanable air filters reduce costly callouts.
Exceptionally hard crystal clear cubes that melt slowly.
Auto rinse and flush cycle.
3 year parts and labour warranty on entire unit, 5 year (parts only) on compressor and air cooled condenser coil.
Large Ice Cube Makers are specifically designed for bars, to be used in cocktails and not for general ice and especially blending purposes. Large Ice Cubes (above 22mm) cannot be blended for juices, smoothies etc
Production Capacity per 24hours Approx. 85kg @10°C Air temp; 10°C Water Approx. 83kg @21°C Air temp; 15°C Water Approx. 73kg @32°C Air temp; 21°C Water Max Storage Capacity Approx. 38kg Freeze Cycle Time Approx. 29 Min Ice Production Per cycle Approx. 1.8kg/80pcs Dimensions 1004mm (W) x 600mm (D) x 800mm (H) (Units include adjustable legs 90-125mm) Cooling Air Weight Net/Gross (kg) 77 / 88 AC Supply Voltage 1 PHASE 220-240V 50Hz/ 10 AMp Plug Amperage Running: 4.1A Rated: 4.1A Starting: 19A Refrigerant Charge R134a / 290g Operating Conditions Ambient Temp.: 1-40°C Water Supply Temp.: 5-35°C Water Supply Pressure: 0.07-0.8MPa (0.7-8bar) Voltage Range: Rated Voltage ±6% Product Dimensions: 1004(W) x 600(D) x 800(H)mm All Ice machines MUST be maintained to ensure high performance.The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.This maintains the quality of the ice shape and thickness. This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance. If your ice machine is not maintained, your warranty may be void. 6 Monthly Maintenance Program Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler. Sanitise water reservoir, distribution tubes, and bin interior. Clean and flush condenser coils (air-cooled units). Inspect condenser fan motor and blades. Check inlet water valve, float, and filters for correct operation. Verify ice thickness probe or sensor calibration. Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary. Test compressor amperage and general performance. Inspect water pump operation and clean pump housing. Check harvest cycle operation (heater or hot gas valve). Inspect electrical connections, relays, and contactors. Replace inline water filter cartridge.
Dimensions
W: 535mm D: 620mm H: 890mmPacked Weight: 58kg

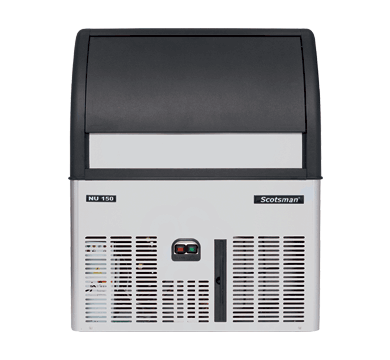

Product Features
68kg daily production rate
25kg storage bin capacity
Residual water content 25%
Air cooled version
Agion Technology resists microbe's growth and odours development to produce pure, clear and transparent ice cubes
R290 refrigerant gas
XSafe - Natural Sanitation System
Stainless steel auger and freezing cylinder evaporator
Water in/ ice out concept limits excess energy, water and time wastage
Simple, reliable electromechanic controls
Built-in storage bin
Clean alert indicator to clean filter
Reduce wastage with water in or ice out concept
Easy access front condenser air filter for easy clean
Resistant stainless steel exterior
Includes removable air filter, water & drain hose
All Ice machines MUST be maintained to ensure high performance.The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.This maintains the quality of the ice shape and thickness. This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance. If your ice machine is not maintained, your warranty may be void. 6 Monthly Maintenance Program Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler. Sanitise water reservoir, distribution tubes, and bin interior. Clean and flush condenser coils (air-cooled units). Inspect condenser fan motor and blades. Check inlet water valve, float, and filters for correct operation. Verify ice thickness probe or sensor calibration. Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary. Test compressor amperage and general performance. Inspect water pump operation and clean pump housing. Check harvest cycle operation (heater or hot gas valve). Inspect electrical connections, relays, and contactors. Replace inline water filter cartridge.
PURE & COOL COMMERCIAL ICE MAKER MACHINE
This commercial modular ice maker produces flake ice, which is often used for produce display of fish, fresh food and bottled beverages. In the medical field, flake ice is also used for organ transportation. Utilizing the most efficient ice making process due to the unique auger system, water consumption is equal to ice production.
“Freeze Burn” is no longer an issue when displaying fresh fish or produce.
Carbon auger bearings have a longer life expectancy than roller bearing, reducing maintenance costs.
One piece bin moulding – rounded corners for hygiene and ease of cleaning.
Automatic flush function, helps keep the ice making system clean.
Integrated door handle for ease use and hygiene.
Controller board with Operational Status display assists in troubleshooting.
Due to the auger system, water consumption is equal to ice production.
Can be converted to nugget ice by changing the extruding head and cutter (parts at an additional cost).
2 year parts & labour on entire unit, 5 year (parts only) on compressor & air cooled condenser coil.
Production Capacity per 24hours Approx. 150kg @10°C Air temp; 10°C Water Approx. 130kg @ 21°C Air temp; 15°C Water Approx. 110kg @ 32°C Air temp; 21°C Water Max Storage Capacity Approx. 26kg -Leveled Dimensions 640mm (W) x 600mm (D) x 800mm (H) Cooling Air Weight Net/Gross (kg) 71 / 82 AC Supply Voltage 1 PHASE 220-240V 50Hz/ 10 AMP Plug Amperage Running: 5.1A Starting: 20A Refrigerant Charge R134a / 200g Operating Conditions Ambient Temp.: 5-40°C Water Supply Temp.: 5-35°C Water Supply Pressure: 0.05-0.8MPa Voltage Range: Rated Voltage ±10% Product Dimensions: 640(W) x 600(D) x 800(H)mm All Ice machines MUST be maintained to ensure high performance.The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.This maintains the quality of the ice shape and thickness. This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance. If your ice machine is not maintained, your warranty may be void. 6 Monthly Maintenance Program Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler. Sanitise water reservoir, distribution tubes, and bin interior. Clean and flush condenser coils (air-cooled units). Inspect condenser fan motor and blades. Check inlet water valve, float, and filters for correct operation. Verify ice thickness probe or sensor calibration. Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary. Test compressor amperage and general performance. Inspect water pump operation and clean pump housing. Check harvest cycle operation (heater or hot gas valve). Inspect electrical connections, relays, and contactors. Replace inline water filter cartridge.
